Detailed Product Description
| Image Device: |
1/3-type 960H EXview HAD CCD II |
Sensor Brand: |
SONY |
| Signal System: |
PAL |
Dimensions (W X H X D): |
63.2 X 57.2 X 117.6 Mm |
| Weight: |
255 G |
Horizontal: |
650TV Lines |

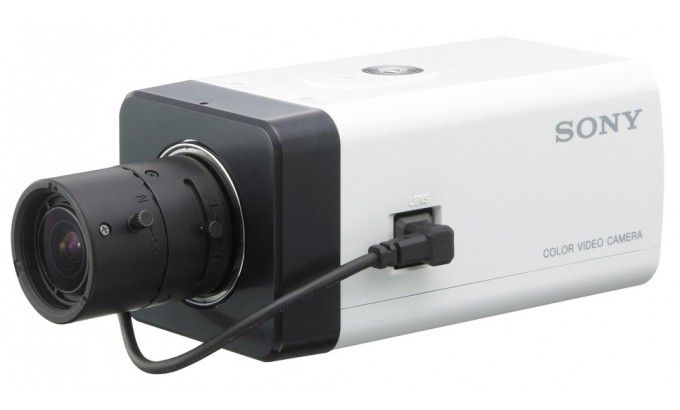

650TVL Analogue Security Camera Day Night SONY SSC-G118 0.15lx , Analog Cctv Camera
Description:
The Sony SSC-G118 fixed analogue camera delivers the impressive image quality that you need, thanks to a range of innovative technologies from Sony. Through a combination of the maximum possible resolution of 650 horizontal TV lines, an EXview HAD CCD II sensor and Sony's new digital signal processor, the SSC-G113 performs in challenging lighting conditions. In addition, the electrical Day/Night function can switch modes automatically, making the camera even more versatile.
The camera can adjust images to their maximum clarity and usability. Automatic Tone Reproduction Lite (ATR-Lite) compensates for gradation of subjects to an optimum level whilst i-Back Light Compensation (iBLC) counteracts exposure levels in dark scenes. Automatic Tracing White (ATW) balance even adjusts the camera's white balance to adapt to sudden changes in lighting conditions.
For camera installation, the CS mount lens and compact design make it an extremely convenient and compatible camera to fit. In addition, Dip SW Control offers easy mode setting - so you can quickly install the camera and gain peace of mind. The SSC-G118 also offers low power consumption at a maximum of 1.8 W.
Features:
* High resolution (650 horizontal TV lines) and high sensitivity (0.15 lx, f1.2, 50IRE)
* Electrical Day/Night function
* ATW (automatic tracing white) balance
* Back light compensation
* 2D Noise Reduction
* AC 220 v - 240v operation
Specificatoin:
| Image Sensor |
1/3-type 960H EXview HAD CCD II |
| Number of Effective Pixels |
Approx. 0.57 Megapixels |
| Signal System |
PAL |
| Sync System |
Internal/AC line lock selectable |
| Minimum Illumination (50 IRE) |
Color: 0.15 lx (F1.2 AGC ON)
B/W: 0.10 lx (F1.2 AGC ON) |
| Minimum Illumination (30 IRE) |
Color: 0.08 lx (F1.2 AGC ON)
B/W: 0.03 lx (F1.2 AGC ON) |
| S/N Ratio (Gain 0 dB) |
More than 55 dB (AGC OFF) |
| Gain |
Auto (ON/OFF) |
| Shutter Speed |
Fixed (1/50 s, default), Auto or 8 Fixed steps selectable |
| White Balance |
ATW (2000 K to 10000 K)
ATW-pro (2500 K to 6000 K) |
| Lens |
CS Mount |
| Powered Zoom |
No |
| Powered Focus |
No |
| IR Illuminator |
No |
| Day/Night |
Electronic D/N |
| Tone Correction |
ATR-Lite: ON/OFF, iBLC: ON/OFF |
| Noise Reduction |
2DNR: ON/OFF |
| Vandal Resistant |
No |
| Ingress Protection |
No |
| Analog Video Output |
VBS: 1.0 Vp-p
650 TV lines |
| Power Requirements |
AC 220-240 V |
| Power Consumption |
1.8 W max. |
| Operating Temperature |
-10℃ to +50℃
+14°F to +122°F |
| Storage Temperature |
-40℃ to +60℃
-40°F to +140°F |
| Operating Humidity |
20% to 80% |
| Storage Humidity |
20% to 95% |
| Dimensions (W x H x D) *1 |
63.2 x 57.2 x 117.6 mm
2 1/2 x 2 3/8 x 4 3/4 inches |
| Mass |
255 g
9 oz |
| Safety Regulations |
EN55022(Class A)+EN50130-4
EN55022(Class A)+EN55024
EN61000-3-2+EN61000-3-3
AS/NZS CISPR22 (EN55022) Class A
IEC60065 |
| Supplied Accessories |
Operating Instructions (1)
Lens mount cap (1) |
