Indoor Analog Security Camera SONY SSC-G813 1/2 CCD Colour with Exview HAD technology

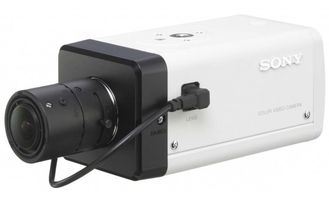

Large Image :  Indoor Analog Security Camera SONY SSC-G813 1/2 CCD Colour with Exview HAD technology

Product Details:

Place of Origin: Japan
Brand Name: SONY
Model Number: SSC-G813

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Delivery Time: 5days
Payment Terms: T/T,PAYPAL
Supply Ability: 200pcs / month
Detailed Product Description
Image Device: 1/2-type CCD With Exview HAD Technology Effective Picture Elements: 752 X 582 (H X V)
Signal System: PAL Standard Dimensions: 63 X 57 X 124 Mm
Weight: 400 G Horizontal Resolution: 540TV Lines



Indoor Analog Security Camera SONY SSC-G813 1/2 CCD Colour with Exview HAD technology





Highlights:



*   Excellent Picture Quality with the 1/2 Inch Exwave HAD CCD
    Highly sensitive sensor developed for both day and night-time use. Works in very low light conditions – even as low as 0.28 lx.

*   Precise Colour Reproduction
    With a 12-bit colour dynamic range the camera reproduces images more precisely than conventional cameras. Users can choose the most suitable colour saturation level, according to the type of scene, the environment and the user's preference.

*   Superb 2D/3D Dynamic Noise Reduction (DNR)
    DNR technology eliminates noise and motion blur to reproduce distinct and clear images. The technology utilises both an adaptive 2D filter and 3D filter according to the Automatic Gain Control (AGC) value to reduce noise.

*   True Day/Night function
    Optimises sensitivity in day and night conditions. As night falls, an infra-red filter is automatically removed and the camera switches to monochrome. In this mode, the camera can acquire images in as little as 0.005 lx.

*   Intelligent Face Detection
    These cameras come equipped with an intelligent face detection function. When the camera detects a face in the 'sensing area' the letters "FD" appear on the monitor.

*   Advanced Backlight Compensation
    The SSC-G813 automatically compensates for difficult backlighting conditions and retrieves detail in the foreground that would otherwise be lost.

*   Auto Tracing White Balance Mode (ATW-PRO)
    The ATW function automatically adjusts each camera's white balance to accommodate sudden changes in lighting conditions. The function has five modes: ATW, ATW-PRO, 5600K, 3200K and Manual. The ATW-PRO mode has the colour temperature reference, so the camera can avoid excessive white balance adjustment.

*   Remote control capability
    The SSC-818 can be remotely controlled using RS-485. It supports SSPP and PelcoD commands, to directly adjust camera parameters.

*   Digital zoom function
    The camera can digitally zoom x2/x4/x8 and x16





Description:

Today's security market demands high-quality cameras that achieve more than just 'satisfactory' picture performance in tough monitoring environments. To meet this need, Sony is proud to introduce the intelligent SSC-G813.

A ½ inch CCD, works in conjunction with the built-in Digital Signal Processor (DSP) to deliver 540 TV lines of usable resolution, even in very poor lighting conditions. With a 12-bit colour dynamic range, the camera retains clarity even in high contrast environments, reproducing brightly coloured objects with increased depth. Dynamic Noise Reduction maximises visible detail and limits the appearance of motion blur.

The SSC-G813 also comes equipped with an intelligent face detection function, flagging the appearance of faces in the image with the letters "FD" on the monitor. This is an advanced security camera you can depend on.



Specification:

Camera
Image Sensor 1/2-type CCD with Exview HAD technology
Effective picture elements 752 x 582 (H x V)
Auto iris lens DC servo or VIDEO servo auto
Digital zoom OFF/x2/x4/x8/x16
Video level Variable
AGC OFF/Normal/Turbo/Manual
Shutter 1/50 sec to 1/100,000 sec (12 steps), OFF / MANUAL / CCD-IRIS selectable
Back-light compensation OFF / iBLC / SPOT
Minimum illumination Color: 0.28 lx at F1.2 (50 IRE, AGC ON, Turbo mode) , B/W: 0.005 lx at F1.2 (50 IRE, AGC ON, Turbo mode)
Analogue video output
Signal systems PAL standard
Horizontal resolution 540 TV lines
S/N ratio Better than 57 dB (AGC OFF)
Variable Gamma OFF / SCENE1 / SCENE2 / SCENE3 / SCENE4 selectable
Sharpness SOFT / NORMAL / SHARP
Color saturation L to H (4 steps)
True Day/Night Auto / External / Color B/W selectable
Activity detection ON/OFF selectable
Face detection ON/OFF selectable
Privacy masking ON/OFF selectable (with area setting function)
Camera title Up to 24 characters (Alphabet, Arabic numeral and some marks, and Simplified Chinese character),ON/OFF selectable (with 4 prepositions)
Use presets A/B Reset selectable
Custom templates ENTRANCE / OFFICE / PARKING / SUBWAY / LOBBY / STATION
Flip OFF / VERT / HORIZ / BOTH selectable
Digital noise reduction L to H (5 steps)
Slow shutter OFF / x2 / x4 / x8 / x16 / x32 / x64 / x128 /x256 / x512
Back focus adjustment Yes
Synch systems Internal / AC line lock selectable
RS-485 address 1-255
White balance ATW / ATW-PRO / 3200K / 5600K / Manual
General
Mass 400g
Dimension (W x H x D) 63 x 57 x 124 mm
Power requirements DC 12 V ±10% or AC 24 V +10% to -40%, 50 Hz
Power consumption 2.8W
Operating Humidity 20% to 80%
Storage Humidity 20% to 95%
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
