Detailed Product Description
| Image Device: |
1/3-type EXview HAD CCD II |
Effective Pixels: |
570,000 Pixels (976 X 582) |
| Signal System: |
PAL Standard |
Dimensions: |
ø77 Mm X 110 Mm |
| Weight: |
650 G |
Horizontal: |
700TV Lines |

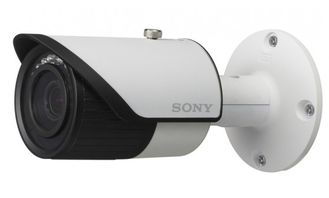

Outdoor Analog Security Camera Night Vision IP66 SD Fixed IR illuminators SONY SSC-CB565R
Advantage:
The SSC-CB565R's infrared illuminators, True Day/Night function and rugged design make it an ideal camera for outdoor applications, such as monitoring car parks, factories and office buildings, which require enhanced image capture at night.
Built-in infrared illuminators assist in capturing objects in the dark with an True Day/Night function automatically switching between day (colour) and night (monochrome) modes depending on lighting levels. The SSC-CB565R also has an IP66-rated waterproof and dust-tight design for robust and reliable outdoor surveillance performance.
Image acquisition is high resolution (700 horizontal TV lines in sharp mode) and high sensitivity, thanks to a 1/3-type "EXview HAD CCD II" sensor and "Effio-E" digital signal processor.
Features:
* Capture images even in the darkest conditions
Built-in infrared illuminators enable and enhance the capture of objects in the dark – even under 0 lx – up to 30 m (98 feet) away.
* Exceptionally detailed images
The SSC-CB565R offers exceptionally high resolution (700 horizontal TV lines) image acquisition. A1/3-in type "EXview HAD CCD II" sensor and Sony's "Effio-E" digital signal processor deliver superbly clear and detailed images.
* Maximised image quality in low lighting
Remarkably high sensitivity (Colour: 0.06 lx, B/W: 0 lx, F1.2, 50IRE) maximises image quality under low-lighting conditions, making the camera eminently suitable for round-the-clock security applications.
* Switching automatically into Night mode
The True Day/Night function switches between Day (colour) and Night (black and white) modes to optimise image quality 24/7.
* Waterproof and dust-tight for robust surveillance requirements
The SSC-CB565R features an IP66-rated waterproof and dust-tight design for outdoor applications, or indoor where water ingress is a threat.
* Flexible angle of view
The SSC-CB565R's 3.7x variable focal length lens, with a focal length of 2.8 mm to 10.5 mm, and a horizontal angle of view of 101.8 deg to 27.4 deg, delivers an exceptionally flexible angle of view.
Specification:
| Camera |
| Image device |
1/3-type EXview HAD CCD II |
| Number of effective pixels (H x V) |
570,000 pixels (976 x 582) |
| Signal system |
PAL standard |
| Horizontal resolution |
700 TV lines (sharp mode) |
| S/N ratio |
More than 55 dB (AGC Off) |
| Minimum illumination |
Color: 0.06 lx, B/W: 0 lx (F1.2, 50 IRE)Color: 0.04 lx, B/W: 0 lx (F1.2, 30 IRE) |
| Video output |
VBS: 1.0 Vp-p |
| Synchronization |
Internal/AC line lock selectable |
| Gain control |
Auto (On/Off) |
| White balance |
ATW (2000K to 10000K), ATW-PRO (2500K to 6000K) |
| Lens type |
Built-in variable focal lens |
| Zoom ratio |
Optical 3.7x |
| Horizontal viewing angle |
101.8 degrees to 27.4 degrees |
| Focal length |
f=2.8 mm to 10.5 mm |
| F number |
F1.2 (Wide), F2.7 (Tele) |
| Minimum object distance |
300 mm (11 7/8 inches) |
| Camera Features |
| Day/Night |
Yes (removable IRC filter) |
| IR working distance |
30 m (98 feet ) (50 IRE) |
| Noise reduction |
Yes (2D NR) |
| Back light compensation |
Yes (iBLC, On/Off) |
| Automatic tone reproduction |
Yes (ATR-Lite, On/Off) |
| General |
| Mass |
650 g (1 lb 7 oz) |
| Dimensions |
ø77 mm x 110 mm (ø3 1/8 inches x 4 3/8 inches) |
| Power requirement |
AC 24 V ±10%, DC 12 V ±10% |
| Power consumption |
Max. 5.5 W |
| Operating temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Operating humidity |
20% to 80% |
| Storage humidity |
20% to 95% |
| Ingress Protection |
IP66 |
