Detailed Product Description
Image Device: |
1/3-type 760H Super HAD CCD II |
Sensor Brand: |
SONY |
Signal System: |
PAL |
Dimensions (W X H X D): |
φ84 X 53 Mm |
Weight: |
125 G |
Horizontal: |
540TV Lines |

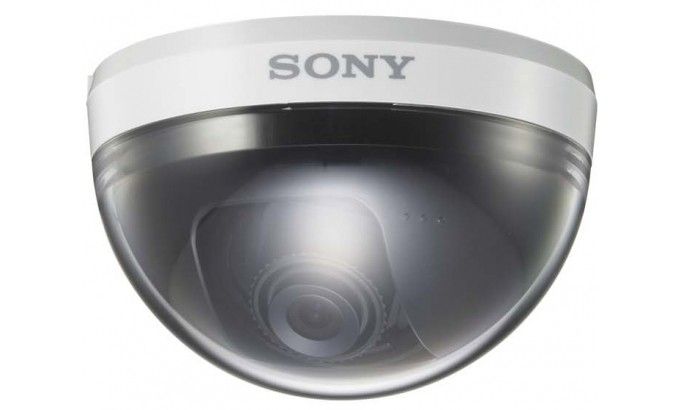

540TVL Analog CCTV Camera Sony SSC-N11 Indoor , Mini Dome Security Camera
Overview:
The Sony SSC-N11 is a high resolution analogue mini-dome security camera with a 1/3” Super HAD CCD II sensor, electrical Day/Night function, ATR-Lite, iBLC and a fixed focal length of 3mm.
With a horizontal resolution of 540 TV lines and high sensitivity, this cleverly designed compact camera is ideal for a wide range of applications – achieving optimum surveillance even in difficult lighting conditions.
Features:
* Compact and stylish design
A compact, stylish and discreet design that compliments any surveillance environment.
* Super high resolution
With a horizontal resolution of 540 TV lines, the SSC-N11 produces detailed, sharp images.
* Electronic Day/Night function
This ensures the camera is operating with the optimum sensitivity for both day and night conditions.
* ATR-Lite
ATR-Lite (Adaptive Tone Reproduction) improves the ability to resolve detail where both high and low luminance areas exist in the same picture.
* iBLC
iBLC (intelligent backlight compensation function) can identify and compensate for areas in the image that are affected by strong light coming from a region in front of the camera e.g. a window. It will adjust exposure to retrieve detail in areas that would otherwise have been under-exposed.
* ATW
ATW is Sony's white balance system. It automatically adjusts the image to give an overall neutral colour balance.
* Easy viewing angle adjustment
Inside the protective dome, the camera has a three-way hinge that allows horizontal, vertical and swivel rotation. This provides a very high degree of flexibility, and allows the camera to be installed on vertical as well as horizontal surfaces.
Specification:
Image Sensor |
1/3-type 760H Super HAD CCD II |
Number of Effective Pixels |
Approx. 0.44 Megapixels |
Signal System |
PAL |
Sync System |
Internal Only |
Minimum Illumination (50 IRE) |
Color: 0.55 lx (F2.0 AGC ON)
B/W: 0.30 lx (F2.0 AGC ON) |
Minimum Illumination (30 IRE) |
Color: 0.35 lx (F2.0 AGC ON)
B/W: 0.20 lx (F2.0 AGC ON) |
S/N Ratio (Gain 0 dB) |
More than 55 dB (AGC OFF) |
Gain |
Auto (ON/OFF) |
Shutter Speed |
Auto |
White Balance |
ATW (2000 K to 10000 K) |
Lens |
Monofocal type |
Powered Zoom |
No |
Powered Focus |
No |
Horizontal Viewing Angle |
95.9° |
Focal Length |
f = 3.0 mm |
F-Number |
F2.0 |
Minimum Object Distance |
400 mm |
Pan/Tilt/Rotation Angle (Manual) |
340°/±45.3°
340° |
IR Illuminator |
No |
Day/Night |
Electronic D/N |
Tone Correction |
ATR-Lite: ON/OFF, iBLC: ON/OFF |
Noise Reduction |
2DNR: ON/OFF |
Vandal Resistant |
No |
Ingress Protection |
No |
Analog Video Output |
VBS: 1.0 Vp-p
540 TV lines |
Power Requirements |
DC 12 V ±10% |
Power Consumption |
0.9 W max. |
Operating Temperature |
-10℃ to +50℃
+14°F to +122°F |
Storage Temperature |
-40℃ to +60℃
-40°F to +140°F |
Operating Humidity |
20% to 80% |
Storage Humidity |
20% to 95% |
Dimensions (W x H x D) *1 |
φ84 x 53 mm
φ3 3/8 x 2 1/8 inches |
Mass |
125 g
4.4 oz |
Safety Regulations |
EN55022(Class A)+EN50130-4
EN55022(Class A)+EN55024
AS/NZS CISPR22 Class A
IEC60065
GOST-R IEC60065 compliance |
Supplied Accessories |
Operating Instructions (1) |
