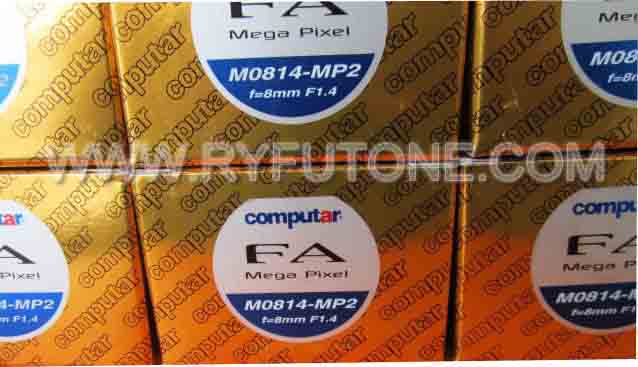

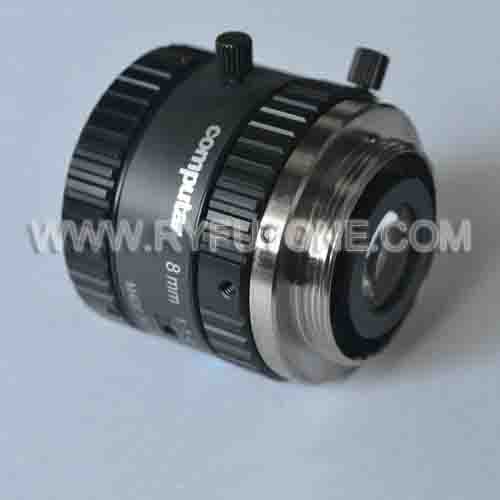

Computar M0814-MP2 8MM Fixed Focus Digital Camera Lens F1.4-F16C Iris

Large Image : Computar M0814-MP2 8MM Fixed Focus Digital Camera Lens F1.4-F16C Iris

Product Details:

Place of Origin:	Japan
Brand Name:	Computar
Model Number:	M0814-MP2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Focal Length:	8mm	Iris:	F1.4-F16C
Focus:	0.1m-Inf.	Mount:	C-Mount
Size:	33.5mm*28.2mm	Weight:	63G

CCTV Camera Lenes Computar M0814-MP2 8MM Fixed Focus Camera Industrial Lens

Computar M0814-MP2 8MM Fixed Focus Digital Camera Lens F1.4-F16C Iris

Brand: Computar
Model:M0814-MP2
Specifications Interface: 2/3 "C-type
Focal length: f = 8mm
The ratio of the focal length of the lens diameter and maximum of 1: 1.4
The maximum image size of 8.8mm 6.6mm (11mm)
Working range Aperture 1.4-16C
Focus 0.1m-Inf
Lens Type:Industrial Lens2/3 inch megapixels fixed focus 8mm manual iris

Focal Length				8mm
Max. Aperture Ratio				1:1.4
Max. Image Format				8.8mm x 6.6mm(Φ11mm)
Operation Range	Iris			F1.4-F16C
	Focus			0.1m-Inf.
Control	Iris			Manual
	Focus			Manual
Object Dimension at M.O.D.				12.1(H)cm x 9.0(V)cm 2/3"
Angle of View	D	2/3"	67.1°	1/2"	51.9°
	H		56.3°		42.5°
	V		43.7°		32.4°
Operating Temperature				-10°C~+50°C

Distortion	2/3"	-0.01%(y=5.5)	1/2"	-1.1%(y=4.0)

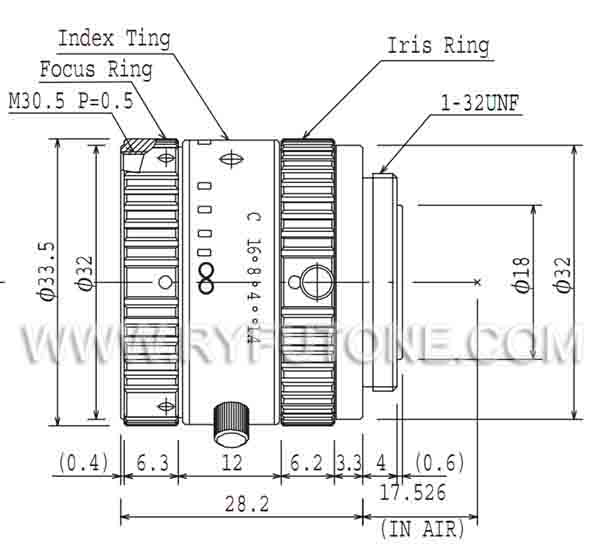

Back Focal Length	13.1mm
Flang Back Length	17.526mm
Mount	C-Mount
Filter Size	M30.5 P=0.5mm
Dimensions	Φ33.5mm x 28.2mm
Weight	63G
