62G M1214-MP2 Million Vision Industry Camera Lens 12mm C Interface

Large Image : 62G M1214-MP2 Million Vision Industry Camera Lens 12mm C Interface

Product Details:

Place of Origin:	Japan
Brand Name:	Computar
Model Number:	M1214-MP2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Focal Length:	12mm	Iris:	F1.4-F16C
Focus:	0.15m-Inf.	Mount:	C-Mount
Size:	33.5mm*28.2mm	Weight:	62G

Computar M1214-MP2 Million Vision Industry Camera Lens 12mm C Interface

Capture all live megapixel resolution camera
Low deformation rate of less than 1.0%)
Focus and aperture locking screw
The entire screen area have high contrast and clear image
Compact design (diameter: 35.5mm)

Focal Length				12mm
Max. Aperture Ratio				1:1.4
Max. Image Format				8.8mm x 6.6mm(Φ11mm)
Operation Range	Iris			F1.4-F16C
	Focus			0.15m-Inf.
Control	Iris			Manual
	Focus			Manual
Object Dimension at M.O.D.				12.1(H)cm x 9.0(V)cm 2/3"
Angle of View	D	2/3"	49.2°	1/2"	37.0°
	H		40.4°		30.0°
	V		30.8°		22.7°
Operating Temperature				-10°C~+50°C

Distortion	2/3"	-0.01%(y=5.5)	1/2"	-0.35%(y=4.0)
Back Focal Length	13.1mm
Flang Back Length	17.526mm
Mount	C-Mount
Filter Size	M30.5 P=0.5mm

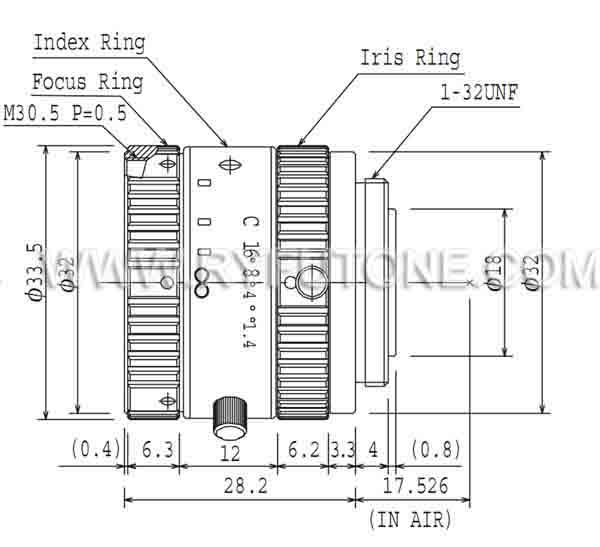

Dimensions	Φ33.5mm x 28.2mm
Weight	62G
