M1614-MP2 HD Security Camera Lens 16MM Million Pixels 33.5mm*28.2mm

Certifications
I'm very satisfied with your service. Surely I'll contact you again in our next project.

—— Brian Guest

Awesome transaction, original , very fast delivery I will gladly do business with them .

—— Arun Kumar.B

I had a few questions so I emailed them. I recieved a very quick response with all the info I needed. Very excellent professional team .

—— Juergen Kainz

I'm Online Chat Now

M1614-MP2 HD Security Camera Lens 16MM Million Pixels 33.5mm*28.2mm

M1614-MP2 HD Security Camera Lens 16MM Million Pixels 33.5mm*28.2mm supplier M1614-MP2 HD Security Camera Lens 16MM Million Pixels 33.5mm*28.2mm supplier

Large Image :  M1614-MP2 HD Security Camera Lens 16MM Million Pixels 33.5mm*28.2mm

Product Details:

Place of Origin: Japan
Brand Name: Computar
Model Number: M1614-MP2

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: box
Delivery Time: 3days
Payment Terms: T/T,PAYPAL
Supply Ability: 100pcs/month

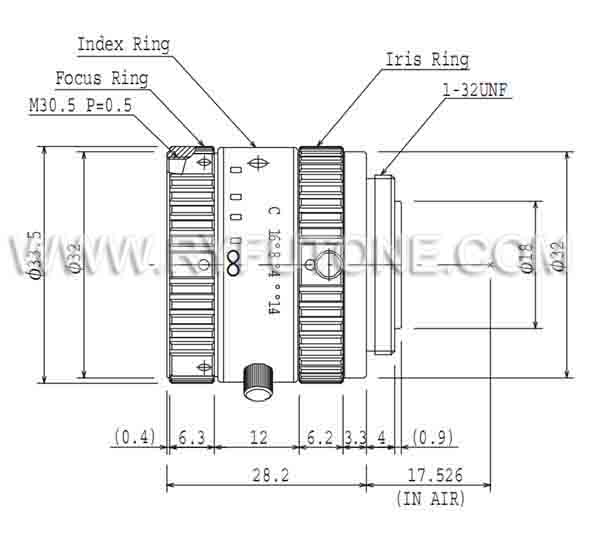

Detailed Product Description
Focal Length: 16mm Iris: F1.4-F16C
Focus: 0.3m - Inf. Mount: C-Mount
Size: 33.5mm*28.2mm Weight: 60G

CCTV Industrial Camera Computar M1614-MP2 HD Lens 16MM Million Pixels CCTV Camera Len





Focal Length 16mm
Max. Aperture Ratio 1:1.4
Max. Image Format 8.8mm x 6.6mm(Φ11mm)
Operation Range Iris F1.4-F16C
Focus 0.3m-Inf.
Control Iris Manual
Focus Manual
Object Dimension at M.O.D. 17.2mm x 12.9cm 2/3"
Angle of View D 2/3" 38.0° 1/2" 28.2°
H 30.8° 22.7°
V 23.4° 17.1°
Operating Temperature -10°C~+50°C





Distortion 2/3" -0.01%(y=5.5) 1/2" -0.3%(y=4.0)
Back Focal Length 13.1mm
Flang Back Length 17.526mm
Mount C-Mount
Filter Size M30.5 P=0.5mm
Dimensions Φ33.5mm x 28.2mm
Weight 60G







Working Distance (mm) Optical Magnification (mm) Extension Ring (mm) Field of View(mm)
2/3" 1/2"
H V H V
900 0.018X - 503.2 376.8 365.4 273.3
850 0.019X - 475.6 356.2 345.3 258.6
800 0.020X - 448.0 335.5 325.3 243.6
750 0.021X - 420.4 314.8 305.2 228.6
700 0.023X - 392.8 294.1 285.2 213.6
650 0.024X - 365.2 273.4 265.1 198.5
600 0.026X - 337.6 252.8 245.1 183.5
550 0.029X - 310.0 232.1 225.0 168.5
500 0.031X - 282.5 211.4 204.9 153.5
450 0.035X - 254.9 190.7 184.9 138.4
400 0.039X - 227.3 170.0 164.8 123.4
350 0.044X - 199.7 149.4 144.8 108.4
300 0.052X - 172.1 128.7 124.7 93.4
250 0.061X 0.5 144.5 108.0 104.7 78.3
200 0.076X 0.5 116.9 87.3 84.6 63.3
150 0.100X 0.5 89.3 66.6 64.6 48.3
100 0.145X 1.0 61.7 45.9 44.5 33.2











Computar M1614-MP2 HD Industrial Camera Lens 16MM Million Pixels CCTV Camera Len
