Detailed Product Description
| CCD: |
SONY 1/4" ExView-HAD PS CCD (ICX-449) |
Total Pixels: |
795(H) X 596(V) |
| Optical Zoom: |
25x |
White Balance: |
Yes |
| Dynamic Detection: |
Yes |
Size: |
50.0 (W) (H) X 57.5 X 88.4 Mm (D) |

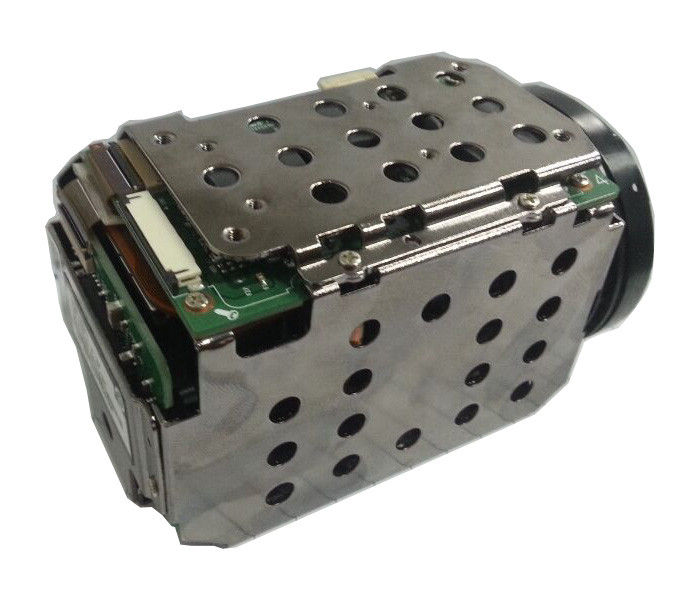

560TVL HD Camera Module 25X DSP Samsung SCM-2251P , Samsung block camera
Description:
Samsung's the newest A1 series is a high cost performance machine, high sensitivity, automatic color turn black and white, color 560 TVL, black and white 600 TVL high-definition, dark space compensated, Low-Luminance , suitable for all kinds of spherical camera or integrated camera.
Parameters:
* Voltage : DC 9V to 15V (recommend:12V )
* Power: 4.5W
* DSP : SAMSUNG A1
* CCD : SONY 1/4" ExView-HAD PS CCD (ICX-449)
* Total pixels : 795(H) x 596(V)
* Effective pixels: 752(H) x 582(V)
* Optical zoom: 25 x, f = 3.6 ~ 91.3 mm, F1.6 (Wide)/F3.0 (Tele)
* Digital zoom:12 x
* Maximum range observation: Tele: 2.24 ˚ (H) x 1.68 ˚ (V), Wide: 54.95 ˚ (H) x 41.83 ˚ (V)
* Scanning system: 2:1 interlace
* Synchronization: Internal Synchronization
* Frequency: level: 15.734 KHz/vertical: 59.94 Hz
* The camera ID: 256 ID
* Resolution: color: 560 TV lines of black and white: 600 TV lines
* Video output CVBS: 1.0 the Vp - p / 75 Ω
* Signal-to-noise ratio (S/N) : 52 db (AGC Off, Weight ON)
* Minimum illumination: color: 0.004 Lux/F1.6 (50 IRE) black and white: 0.0004 Lux/F1.6 (50 IRE )
* Backlight compensation mode: BLC/HLC/OFF
* Translation: day and night automatically/color/black and white
* Automatic gain: low, medium, high, manual, shut down
* White balance: ATW1 ATW2 / AWC/MANUAL (ATW1:2500 ~ 9500 ° K, ATW2:2000 ~ 10000 ° K)
* Electronic shutter, automatic/manual/prevent flashing 1/60 ksec (1/50 ~ 1/50
Iso x2 ~ x256
* O.S.D menu: built-in multiple languages
* Dynamic detection: on/off (outward output alarm signal)
* External control: RS - 232 - c TTL Level (00 2400480 0960 0192 00384 0960 BPS)
* DNR: Off/On the Adaptive 3 d + 2 d)
* Dark space compensation: SSDR
* Focus: automatic/manual/one-time focus
* Privacy shelter: on/off 8 groups
* Size: 50.0 (W) (H) x 57.5 x 88.4 mm (D)
* Work environment: - 10 ℃ to +50 ℃ + / 20% to 80% RH
* Storage conditions: - 20 ℃ to +60 ℃ + / 20% to 95% RH
