Color B/W 33x Samsung Camera Module SCM-3331P 44M Pixels With Wide Dynamic

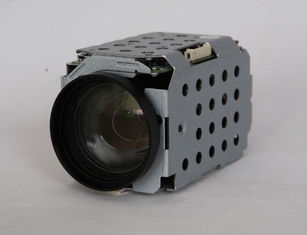

: Large Image : Color B/W 33x Samsung Camera Module SCM-3331P 44M Pixels With Wide Dynamic

Product Details:

Place of Origin:	Korea
Brand Name:	Samsung
Model Number:	SCM-3331P

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

CCD:	1/4 Inch, Interline Transfer CCD，sony Ⅱ CCD	Total Pixels:	X2-X16
Optical Zoom:	33x	External Control:	RS-232C TTL Level
SSDR:	Dark Space Compensation	Size:	48.6(W)×53.8(H)×87(D)mm

Color to B/W 33x Samsung Camera Module SCM-3331P 44M Pixels With Wide Dynamic

Description:

SCM-3331P use of a new generation of SV5 DSP chip, 33X optical zoom lens, more than 560 lines of hd resolution, with backlight compensation locale, strong inhibition and wide dynamic and intelligent analysis and practical function.

Features:

* 33*12X, Color to B/W
* 1/4" Vertical double density interline CCD
* 44 million pixels
* 560 line/0.2Lux(color)
* 680 line/0.02Lux(B/W)
* Samsung SSNR noise reduction chip
* exercise monitoring function
* Wide dynamic
* function f=3.5 to 115.5mm(F 1.6 to 3.6)

Specification:

Model		SCM-3331N	SCM-3331P
Power supply		DC 8V to 15V (Recommend: 12V )
Power		Dynamic condition:4.8W
DSP		SV5
CCD	Size	1/4 inch, Double Density Interline Transfer CCD
	Total Pixels	811(H)x508(V)	795(H)x596(V)
	Effective Pixels	768(H)x494(V)	752(H)x582(V)
Optical	Optical zoom	33X, f=3.5 to 115.5mm(F 1.6 to 3.6)
	The minimum focus distance	1500mm
	Digital Zoom	X2-X16
	Maximum range observed	Level: 55.5°(nearly) to 1.59°(far) vertical: 42.5°(nearly) to 1.19°(far)
Synchronization	Scanning system	2:1 Interlace
	Synchronization	Internal Synchronization /Outside synchronization
	frequency	Level:15.625KHz/vertical:50.00Hz
Function	Camera ID	255 ID
	Resolution	Color :560 TV Line Black-and-white :680 TV Line
	Video output	CVBS : 1.0Vp-p/75Ω
	SNR (S/N)	52 dB (AGC Off,Weight ON)
	minimum illumination	Color :0.2Lux/F1.6 (50 IRE) Black-and-white :0.02Lux/F1.6 (50 IRE)
	BLC	WOR/BLC/HLC/OFF
	ICR	Auto/Color/Black-and-white
	AGC	Low/ medium/high/ manual/Off
	WB	ATW /Manual /Outdoor/Indoor
	Electronic Shutter	Automatic/manual/ Flicker Filter
	Film speed	x512
	O.S.D	Built-in ( English and Chinese)
	Motion Detection	On/Off (Outward output alarm signal)
	External control	RS-232C TTL Level (2400,4800,9600, 19200, 38400 bps Selectable)
	SSNR	Low/medium/high/off
	SSDR	Dark space compensation
	intelligence	Dynamic, track,
	Focus	Automatic/manual/one-time focus
	ZOOM SPEED	2.2Sec(Fast)/ 2.5 Sec(Middle) / 4.7 Sec(Slow):Nearly burnt to telephoto
	mirror	H/V
	Privacy shelter	On/OFf 8 group
Size		48.6(W)×53.8(H)×87(D)mm
working environment		-10℃ to +50℃ / 20% to 80% RH
Stored Environment		-20℃ to +60℃ / 20% to 95% RH
Weight		213g
