SANYO CCD Camera Module 36X Option Zoom 540TVL with Day / Night

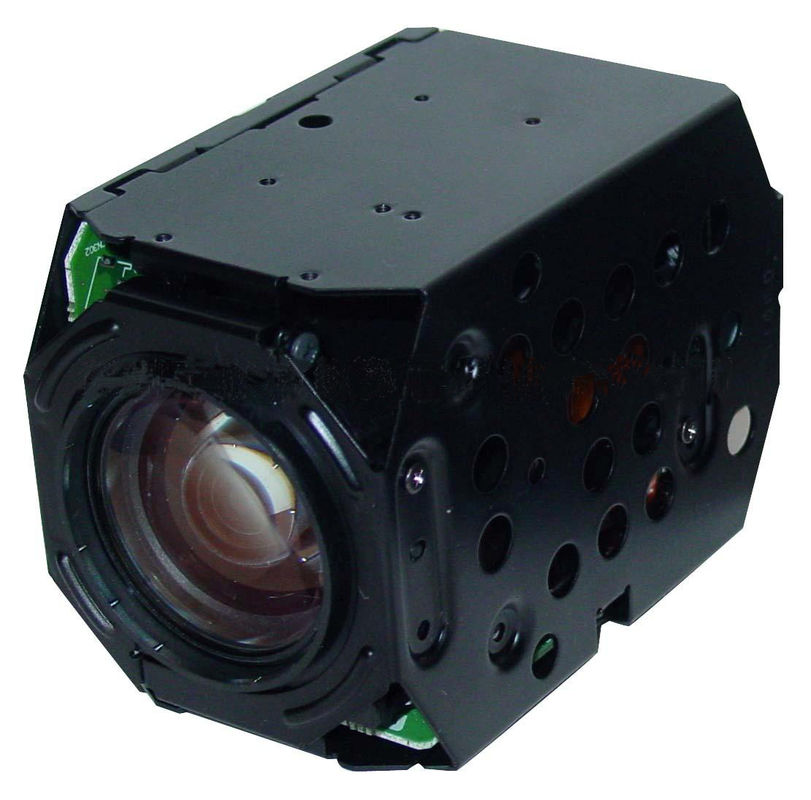

Large Image :  SANYO CCD Camera Module 36X Option Zoom 540TVL with Day / Night

Product Details:

Place of Origin: Japan
Brand Name: Sanyo
Model Number: VCC-MD800P

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Delivery Time: 5days
Payment Terms: T/T,PAYPAL
Supply Ability: 100pcs/month
Detailed Product Description
Model: VCC-MD800P Image Sensor: 1/4 "Exview HAD CCD
Lens: 36X Optical Zoom Dimensions: 50 (W) * 60 (H) * 86.2 (D) Mm
Horizontal Resolution: 540TV Lines Weight: 240G
Circadian Type: Color 1.0Lux , Black And White 0.05Lux (F1.6 50IRE)



SANYO CCD Camera Module 36X Option Zoom 540TVL with Day / Night



Specifications :

*  1/4 "Exview HAD CCD, approximately 470,000 pixels
*  More than 540 TV lines of resolution
*  The use of solid-state components, excellent seismic results
*  Circadian type: Color 1.0Lux / black and white 0.05Lux (F1.6 50IRE)
*  36X optical zoom, 16x electronic zoom zoom effect total 576 times
*  f = 3.4-122.4mm; F = 1.6-4.5
*  VCC-MD800P (day / night)
*  Signal to noise ratio greater than 50dB (AGC OFF)
*  TTL Auto White Balance (ATW / Manual / Lock / Indoor / Outdoor / fluorescence)
*  Built-in high-speed electronic shutter and slow shutter
*  Focusing system (automatic, AF one-button focus, manual); fastest 1.01 seconds to focus
*  AGC (Low / Normal / Medium / High / Off)
*  Y / C component output; RS232 communication protocol
*  6-12V DC; consumption 2.1W (recommended 9V)
*  Temperature: -10 to 50 degrees
*  Weight: 240g;
*  size: 50 (W) * 60 (H) * 86.2 (D) mm



Features:

*  Intelligent backlight compensation (region-wide metering, center-weighted, and the strength of the adjustable backlight compensation value, reaching the best results)
*  Privacy function (24)
*  Image freeze; mirroring (PTZ Digital Auto Flip)
*  Super anti-shake function (Image stabilizer); controls the low frequency jitter (5-15Hz)
*  The motion detection function (moving objects can provide specific orientation coordinates of a moving object automatic optical zoom control, sending an alarm signal; supports user-developed automatic tracking function)
*  Day and night, the conversion speed is adjustable (5-20 seconds)
*  The lens speed is adjustable (wide end -> Tele end 6.6-12.4 seconds)
*  Internal / external synchronization.
