Detailed Product Description
| Focal Length: |
16MM |
Image Format: |
8.8 X 6.6 Mm (ø11 Mm) |
| Mount: |
C-Mount |
Angle Of View: |
2/3-type: 38.0° (D), 30.8° (H), 23.4° (V) |
| Control: |
Iris / Focus: Manual |
Weight: |
2.36 Oz (60 G) |

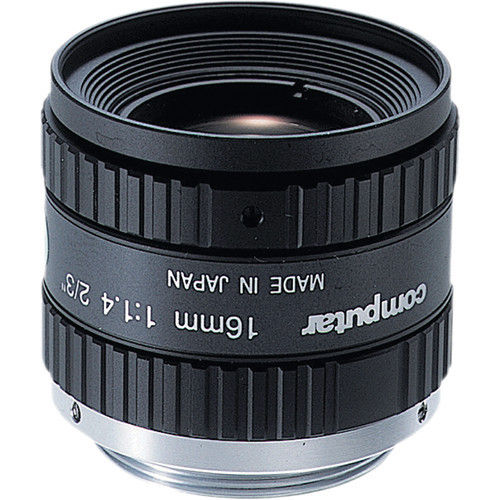

16MM CCTV Camera Lens 2 / 3 " M1614-MP2 Megapixel , Lens For Cctv Camera
Computar M1614-MP2 Advantage:
* Megapixel Monofocal Lens
* 16mm Focal Length
* 2/3" Sensor Size
* f1.4, C-Mount
* Manual Iris
Description:
The computar M1614-MP2 2/3" Fixed Lens (16mm) is a cost-effective solution for close-up monitoring in factory automation and image processing units. The lens facilitates easy focal length adjustments without having to move the camera from its installation point. It is designed for use with C-mount megapixel cameras having 2/3” format sensors. Moreover, with an aperture of f/1.4 to 16C, the lens is suitable for surveillance in low-light as well as bright-light conditions.
Features:
* Designed for C-mount megapixel cameras with 2/3" sensors
* Aperture of f/1.4 to 16C ensures enhanced performance in low-light as well as bright-light conditions
* Manual iris for correct exposures
* Low distortion and excellent light intensity even in peripheral areas
* Locking set screws for focus and iris
* Compact design
* Helps in capturing images at full resolution of megapixel cameras
* High contrast and sharp picture in all areas of the screen
Specification:
| Focal Length |
16 mm |
| Aperture Ratio |
1:1.4 (maximum) |
| Image Format |
8.8 x 6.6 mm (ø11 mm) |
| Operation Range |
Iris: F1.4 to F16C
Focus 0.98' to infinity (0.3 m to infinity) |
| Control |
Iris / Focus: Manual |
| Angle of View |
2/3-type: 38.0° (D), 30.8° (H), 23.4° (V)
|
| Operating Temperature |
14 to 122°F (-10 to 50°C) |
| Effective Lens Aperture |
Front: ø18.5 mm
Rear: ø13.2 mm |
| Distortion |
2/3-type: -0.1% (y=5.5)
|
| Back Focal Length |
0.51" (13.1 mm) |
| Flange Back Length |
0.69" (17.526 mm) |
| Mount |
C-mount |
| Filter Size |
M30.5P=0.5 mm |
| Certifications |
CE, RoHS |
| Object Dimensions at M.O.D. |
2/3-type: 6.77 x 5.07" (172 x 129 mm)
|
| Dimensions (Ø x L) |
ø1.31 x 1.11" (ø33.5 x 28.2 mm) |
| Weight |
2.36 oz (60 g) |
