Manual Iris MP CCTV Camera Lens MLM3X-MP 2 / 3 " 3.3x Macro Zoom

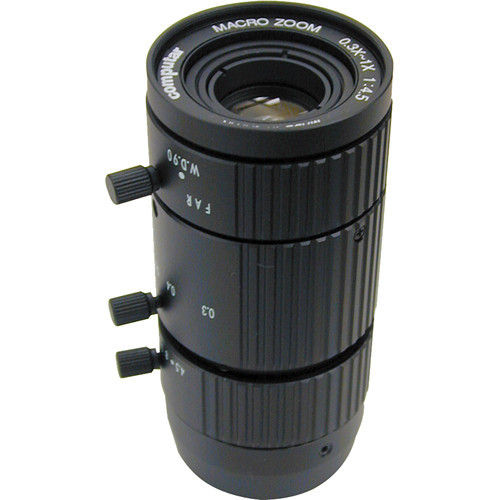

Large Image : Manual Iris MP CCTV Camera Lens MLM3X-MP 2 / 3 " 3.3x Macro Zoom

Product Details:

Place of Origin:	Japan
Brand Name:	Computar
Model Number:	MLM3X-MP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Maximum Magnification:	0.3 To 1x	Aperture Ratio:	1:4.5
Image Format:	8.8 X 6.6 Mm (ø11 Mm) (maximum)	Control:	Iris / Focus / Zoom: Manual
Angle Of View:	14.88 To 2.84° (D), 11.80 To 2.78° (H), 8.74 To 2.24° (V)	Mount:	C-Mount
Dimensions:	1.43 X 3.12" (36.5 X 79.5 Mm)	Weight:	5.29 Oz (150 G)

Manual Iris MP CCTV Camera Lens MLM3X-MP 2 / 3 " 3.3x Macro Zoom

Features:

*   Low distortion
*   Assured excellent light intensity even in peripheral areas
*   Robust design with built-in locking mechanisms for focus and iris
*   Factory automation or image processing used in close proximity monitoring

Description:

The Computar MLM3X-MP is a 2/3” 3.3X Macro Zoom Manual Iris Megapixel Lens designed for close-up applications required in factory automation and image processing areas. It is a C Mount type lens, with a 3.3X macro zoom and manual iris capabilities. The MLM3X-MP 3.3X megapixel lens provides low distortion, excellent light intensity even in peripheral areas, and a robust design with built-in locking mechanisms for focus and iris.

Specification:

Maximum Magnification	0.3 to 1x
Maximum Aperture Ratio	1:4.5
Image Format	8.8 x 6.6 mm (ø11 mm) (maximum)
Operation Range	Iris: F4.5 to 22C Focus: 3.54" (90 mm)
Control	Iris / Focus / Zoom: Manual
Angle of View	14.88 to 2.84° (D), 11.80 to 2.78° (H), 8.74 to 2.24° (V)
Operating Temperature	-4 to 122°F (-20 to 50°C)
Effective Lens Aperture	Front: ø15.5 mm Rear: ø7 mm
Back Focal Length	20.4 mm
Distortion	2/3 type: 0.3x tele 0.02% (y=5.5) 1x wide 1.78% (y=5.5)
Flange Back Length	0.69" (17.53 mm)
Mount	C-mount
Filter Size	M34.0 P = 0.5 mm
Object Dimensions at M.O.D.	2/3 type (D x H x V): 1.44 to 0.42" (36.7 to 10.8 mm), 1.15 to 0.34" (29.4 to 8.7 mm), 0.87 to 0.25" (22.1 to 6.6 mm)
Dimensions	1.43 x 3.12" (36.5 x 79.5 mm)
Weight	5.29 oz (150 g)
