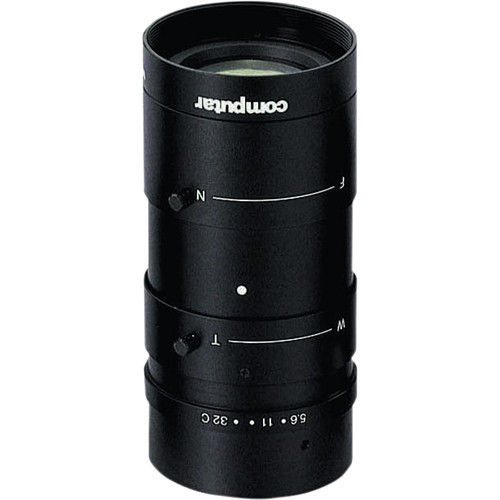

CCTV Surveillance Camera Lens MLH-10X 1 / 2 " 10x Close-up Manual Zoom / Iris

Large Image : CCTV Surveillance Camera Lens MLH-10X 1 / 2 " 10x Close-up Manual Zoom / Iris

Product Details:

Place of Origin:	Japan
Brand Name:	Computar
Model Number:	MLH-10X

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Maximum Magnification:	0.084 To 0.84 Mm	Aperture Ratio:	1:5.6
Image Format:	6.4 X 4.8 Mm (ø8 Mm)	Control:	Iris / Focus / Zoom: Manual
Angle Of View:	21.6 To 4.5° (D), 18 To 3.6° (H), 13.8 To 2.7° (V)	Mount:	C-Mount
Dimensions:	1.88 X 3.87" (48 X 98.5 Mm)	Weight:	9.17 Oz (260 G)

CCTV Surveillance Camera Lens MLH-10X 1 / 2 " 10x Close-up Manual Zoom / Iris

Advantage:

The computar MLH-10X 1/2" 13 to 130mm 10x Close-up Manual Zoom/Iris Lens (C-Mount) provides manual adjustment of focal length, iris, and focus. It is designed for use where a variable angle of view is required. Main applications for this lens include inspection, machine vision and robotics.

Application:

Factory automation or image processing used in close proximity monitoring

Package:

* Package Weight 0.7 lb
* Box Dimensions (LxWxH) 5.6 x 3.0 x 2.7"

Specification:

Maximum Magnification	0.084 to 0.84 mm
Maximum Aperture Ratio	1:5.6
Image Format	6.4 x 4.8 mm (ø8 mm)
Operation Range	Iris: F5.6 to 32 Focus: 0.49 to 1.47' (0.15 to 0.45 m)
Control	Iris / Focus / Zoom: Manual
Angle of View	21.6 to 4.5° (D), 18 to 3.6° (H), 13.8 to 2.7° (V)
Operating Temperature	-4 to 122°F (-20 to 50°C)
Effective Lens Aperture	Front: ø30 mm Rear: ø6.6 mm
Back Focal Length	23.29 mm
Flange Back Length	0.69" (17.526 mm)
Mount	C-mount
Filter Size	M46.0 P = 0.75 mm
Object Size	For 1/2 Type CCD Working Distance 6" (152.4 mm): 92.2 to 9.6 mm (D), 74.6 to 7.8 mm (H), 56.4 to 5.9 mm (V)
Dimensions	1.88 x 3.87" (48 x 98.5 mm)
Weight	9.17 oz (260 g)
