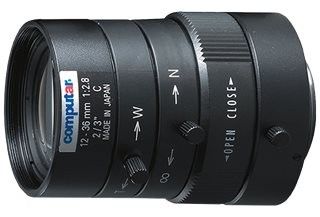

12mm - 36mm CCTV Camera Lens M3Z1228C-MP , Manual Iris Lens

Large Image : 12mm - 36mm CCTV Camera Lens M3Z1228C-MP , Manual Iris Lens

Product Details:

Place of Origin:	Japan
Brand Name:	Computar
Model Number:	M3Z1228C-MP

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	300pcs / month

Detailed Product Description

Focal Length:	12 To 36 Mm	Aperture Ratio:	1:2.8 (maximum)
Image Format:	8.8 X 6.6 Mm (ø11 Mm)	Control:	Iris / Focus / Zoom: Manual
Angle Of View:	50.4 To 16.8° (D), 41.0 To 13.6° (H), 31.2 To 10.4° (V)	Mount:	C-Mount
Dimensions:	ø1.63 X 2.08" (ø41.6 X 53 Mm)	Weight:	3.70 Oz (105 G)

12mm - 36mm CCTV Camera Lens M3Z1228C-MP , Manual Iris Lens

Advantage & description:
The computar M3Z1228C-MP 2/3" 12 to 36mm Varifocal Manual Iris MP Lens (C-Mount) has a dedicated design that emphasizes performance for close-up applications required in factory automation and image processing areas.
*   Low distortion
*   Assured excellent light intensity even in peripheral areas
*   Robust design with built-in locking mechanisms for focus and iris

Packaging Info:
* Package Weight 0.3 lb
* Box Dimensions (LxWxH) 3.2 x 2.8 x 2.4"

Specification:

Focal Length	12 to 36 mm
Aperture Ratio	1:2.8 (maximum)
Image Format	8.8 x 6.6 mm (ø11 mm)
Operation Range	Iris: F2.8 to F16C Focus (Tele): 0.65' to infinity (0.2 m to infinity) Wide: 0.16' to infinity (0.05 m to infinity) Zoom: 0.47 to 1.41" (12 to 36 mm)
Control	Iris / Focus / Zoom: Manual
Angle of View	50.4 to 16.8° (D), 41.0 to 13.6° (H), 31.2 to 10.4° (V)
Operating Temperature	-4 to 122°F (-20 to 50°C)
Effective Lens Aperture	Front: ø27.2 mm Rear: ø12.1 mm
Back Focal Length	Tele: 13.5 mm Wide: 14.7 mm
Distortion	2/3-Type: 3.5% (y=5.5) (tele), 2.6% (y=5.5) (wide)
Flange Back Length	0.69" (17.526 mm)
Mount	C-mount
Filter Size	M35.5 P = 0.5 mm
Certifications	CE, RoHS
Object Dimensions at M.O.D.	15.74 x 11.81" (400 x 300 mm) (at 12 mm) 18.89 x 14.17" (480 X 360 mm) (at 36 mm)
Dimensions (Ø x L)	ø1.63 x 2.08" (ø41.6 x 53 mm)
Weight	3.70 oz (105 g)
