Detailed Product Description
| Model: |
SONY FCB-EX2700P |
Image Sensor: |
1/4-type Super HAD CCD II |
| Number Of Effective Pixels: |
570.000 Pixel |
Horizontal Resolution: |
670TVL |
| Lens: |
40x Optical Zoom |
Auto ICR: |
Yes |
| Wide D: |
Yes |
Zoom Stabilizzato: |
Yes |

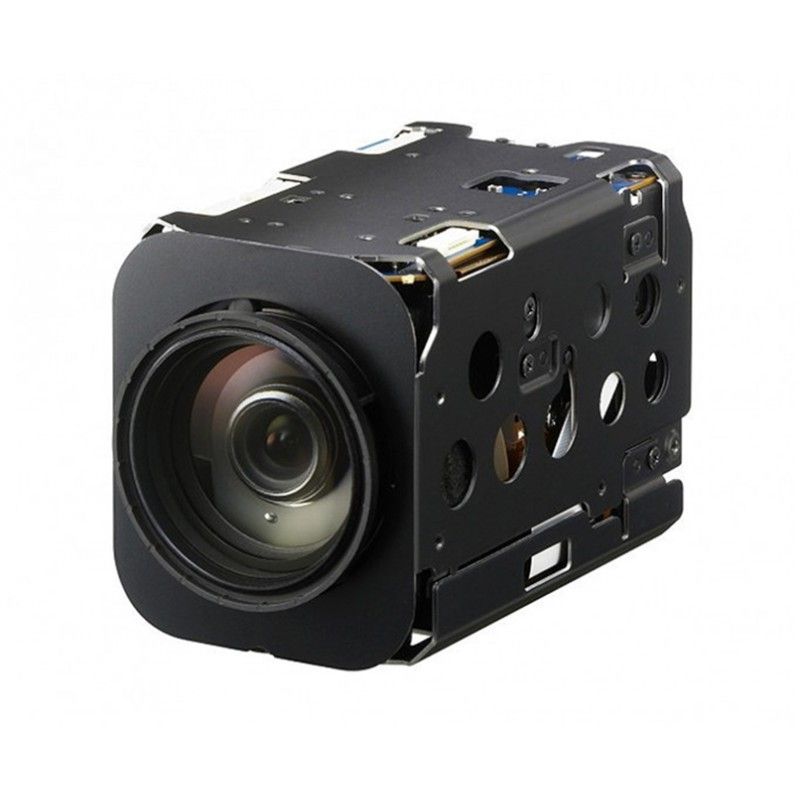

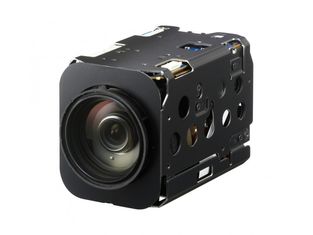

FCB-EX2700P 670TVL SONY Camera Module 40x Optical Color Camera Block 570000 pixel
Description:
Cameras in this new series offer excellent picture quality with a horizontal resolution of 670 TV lines, thanks
to the use of Super HAD CCD II image sensors and a newly developed image processor. These cameras also incorporate high-performance optical zoom lenses (including high resolution 40x, and bright 28x and 18x lenses), allowing you to select the right camera according to your varying needs.
The new FCB-EX series block cameras uses a Progressive Scan (PS) mode to provide smooth and clear images without interlace artifact effects when viewing details in a moving image. Featuring Wide-Dynamic
Range, Digital Output (ITU-R BT656), Visibility Enhancer, De-fog, StableZoom function and Auto ICR
applications, the new FCB-EX block camera series s idealy suited for Security Survelience, Intelligent Traffic,
and Remote Monitoring applications.
Competitive Advantage:
All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series such as Wide-D*, Auto ICR, and Spherical Privacy Zone Masking, and they are specifically designed to be integrated into security domes/cameras. These features and breadth of choice enable you to pick the right camera every time.
Features:
* Sony FCB-EX2700P Color CCD block camera
* Sony FCB-EX2700P PAL / Sony FCB-EX2700 NTSC
* Defog
* 3D + 2D
* 4 Pin Conductor Wire Harness (S-Video)
* Horizontal resolution of 670 TV lines
* 40x zoom lens
* Super HAD CCD II image sensors (perfect for dark environments
* Wide-D (wide dynamic range), Auto ICR, and Spherical Privacy Zone Masking
* Size( WxHxD): 50.0 x 60.0 x 90.9 MM
* Weight: About 265G
Applications:
The new FCB-EX block camera series s idealy suited for Security Survelience, Intelligent Traffic, and Remote Monitoring applications.
Technical specification:
| Image Sensor |
1/4-type Super HAD CCD II |
| Image Sensor (Number of Effective Pixels) |
Approx. 570,000 pixels |
| Horizontal Resolution |
670TVL |
| Signal System |
PAL |
| Minimum Illumination (50%, Normal mode, wide-end, aperture (MAX), F ratio) (typical) |
0.6 lx (Shutter speed: 1/50 sec) 0.04 lx (Shutter speed: 1/3 sec) 0.01 lx (Shutter speed: 1/3 sec, ICR ON) |
| Recommended Illumination |
100 lx to 100,000 lx |
| S/N Ratio |
More than 50 dB |
| Gain |
Auto/Manual (-3 step to 28 step, +2 step/total 16 steps) |
| Shutter Speed |
1/1 to 1/10,000 sec, 22 steps |
| Sync System |
Internal/External(V-Lock) |
| Exposure Control |
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation |
Yes |
| Aperture Control |
16 steps |
| White Balance |
Auto WB, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual |
| Lens |
40x optical zoom
f=3.06mm (wide) to 122.4mm (tele)
F1.6 to F4.6 |
| Digital Zoom |
12x (480x with optical zoom) |
| Focusing System |
Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on |
| Horizontal Viewing Angle (SD) |
60.0°to 1.6 ° |
| Minimum Object Distance |
10 mm to 1500 mm |
| Auto ICR |
Yes |
| Wide-D *1 |
Yes (On/Off) (On : 90dB) |
| Noise Reduction |
Yes |
| Progressive Scan Mode |
Yes |
| Image Stabilization |
No |
| Stablezoom |
No |
| Digital Output |
Yes |
| Tone Reproduction |
Yes(VE) |
| Spherical Privacy Zone Masking |
Yes |
| Motion Detection |
Yes |
| Alarm |
Yes |
| Slow AE Response |
Yes (Max. 2 minutes) |
| Picture Effects |
Neg. Art (Negative/Positive Reversal), Black White (Monochrome Image), Color enhancement |
| Picture Freeze |
Yes |
| Slow Shutter |
Yes |
| Temperature Readout |
Yes |
| Title Display |
20 characters/line, max. 11 lines |
| Camera Mode Display |
Yes(English) |
| Key Switch Control |
Yes |
| Camera Operation Switch |
Yes |
| Video Output |
Digital: Y/Pb/Pr 4:2:2 (Comparable to ITU-R BT656) Analog: VBS: 1.0 Vp-p (sync negative), Y/C |
| Camera Control Interface |
VISCA (CMOS 5 V level)
Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps Stop bit: 1 bit |
| Power Requirements |
6.0 V to 12.0 V DC |
| Power Consumption |
2.4W(motors active: 3.2 W) |
| Operating Temperature |
-5 ℃ to +60 ℃
23°F to 140°F |
| Storage Temperature |
-20 ℃ to +60 ℃
-4°F to 140 °F |
| Operating Humidity |
20% to 80% |
| Storage Humidity |
20% to 95%
Absolute humidity : 36 [g/m3] |
| Dimensions (W x H x D) |
50.0 x 60.0 x 90.9 mm |
| Mass |
Approx. 265 g |
