Analog CCD Camera Module LG LCM2330P IR RS-232TTL Extreme Dynamic Image Processor

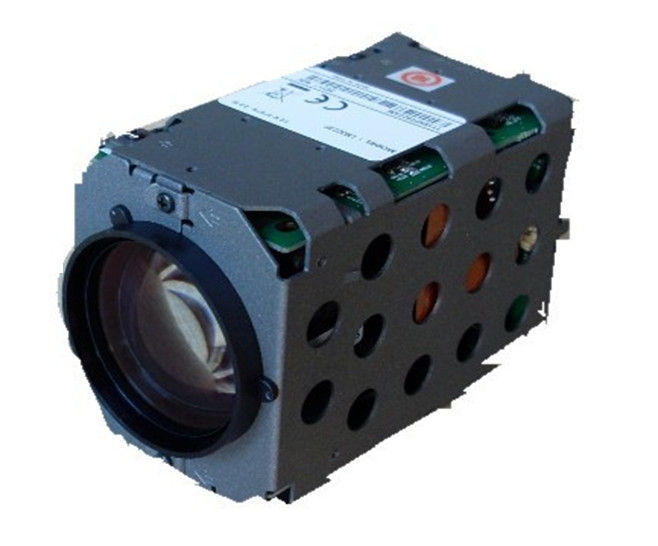

: Large Image : Analog CCD Camera Module LG LCM2330P IR RS-232TTL Extreme Dynamic Image Processor

Product Details:

Place of Origin:	Korea
Brand Name:	LG
Model Number:	LCM2330P

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	1000pcs/month

Detailed Product Description

Sensor:	1/4 Inch 960H Non-WDR CCD	Horizontal Resolution:	600 TVL
Day & Night::	ICR	AGC:	0 ~ 10 (1step Level)
Optical Zoom:	23 X	Serial Interface:	RS-232TTL

Analog CCD Camera Module LG LCM2330P IR RS-232TTL Extreme Dynamic Image Processor

Advanced Features :

* XDI-V (Extreme Dynamic Image Processor) Image Signal Processor
* Slow AE
* Digital zoom : X12
* Auto ICR Mode
* 850nm Infrared(IR) Correction Mode
* Digital Effect : Rotate, Mirror and V-flip
* External-Synchronization (Line-Lock)
* LG-MultixETM protocol for RS-232C TTL communication

Description:

Description:	LG 1/4" 960H CCD 600 TVL 23x (Optical), 12x (Digital) Zoom
Image Sensor:	4.5mm (1/4 inch 960H Non-WDR CCD)
Pixels:	610K / 570K
Horizontal Resolution:	600 TVL
Video Output:	1Vp-p Composite (75Ω)
Day & Night:	ICR (Auto / Day / Night) ICR (Auto / Day / Night)
White Balance:	Auto / ATW (1,700 degree K ~ 11,000 degree K) / One Push / Manual
BLC:	BLC / HSBLC / Off
AGC:	0 ~ 10 (1step level)
Motion Detection:	Smart / Regional Motion Detection
Noise Reduction:	3D-DNR (Off / Low / Middle / High)
OSD Menu:	Eng, Chi, Kor, Rus, Jpn
Protocol:	LG-MultixETM
Min. Illuminatiom:	B/W - SENS-UP OFF : 0.01 lux, SENS-UP ON: 0.00001 lux; Color - SENS-UP OFF: 0.2 lux, SENS-UP ON : 0.003 lux
S/N Ratio:	50dB
Sync. System:	Internal / Line Lock
Shutter Speed:	1/50 ~ 1/120,000
Lens Type:	F 1.5(Wide End), F 3.0(Tele End) f =3.5 ~ 80.5 mm
SENS-UP:	Off / Auto (X2, X3, X4, ...X128)
Iris Control:	DC
Optical Zoom:	23 x
Digital Zoom:	12 x
Serial Interface:	RS-232TTL
Power Supply:	DC 9V ~ 14V
Power Consumption:	3.6W
Operating Temperature :	-10 deg.C ~ 60 deg.C / 0% ~ 80%RH (Non-Condensing)
Dimension:	48.1 x 57.6 x 86.2
