Detailed Product Description
| Sensor: |
1/4" High Sensitivity CCD Ⅱ |
Total Pixels: |
795 (H) X 596 (V) 470K |
| Signal System: |
PAL |
Video Output: |
1.0Vp-p (75 Ohms, Composite Video) |
| Optical Zoom: |
36x |
|
|

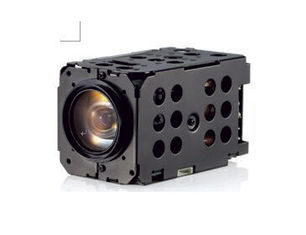

CCTV CCD Camera Module 36X WDR 1/4-type Color Block CNB ZCN-21Z36F 59.94Hz
Description:
CNB ZCN-21Z36F ultra-low according to integration box camera , Day & Night , 36x optical , 1/4"
High Sensitivity CCD Ⅱ,WDR,Screen flashing function . It can be applied to various occasions,.
Features :
* 1/4" High Sensitivity CCD Ⅱ low intensity of illumination;
* 36X optical zoom and 12X Adjustable digital zoom lens;
* WDR (wide dynamic range) function;
* Privacy shade, strong light, 3D digital noise reduction
* Double filter automatic conversion mode can be day and night IR
* Color to black and white, delayed switching function .
* 3 level zoom speed multiple modes of object distance
* Gamma adjustment
* Auto/indoor/outdoor/manual white balance
* Moving objects detection
* Picture Flickerless function
Specification:
| Model |
ZCF-21Z36F |
|
Signal system
|
PAL
|
|
Scanning mode
|
2:1 interlaced
|
|
Scanning frequency (horizontal)
|
15.73kHz |
|
Scanning frequency (vertical)
|
59.94Hz |
| Image Sensor |
1/4" High Sensitivity CCD Ⅱ |
|
Synchronization system
|
Internal sync
|
| Total pixels |
795 (H) x 596 (V) 470K |
|
Effective pixels
|
752 (H) x 582 (V) 440K |
|
Horizontal resolution
|
550 TV Lines Color, 600TV Lines black and white
|
|
Video output
|
1.0Vp-p (75 ohms, composite video)
|
|
Signal to noise ratio (s/n)
|
More than 52dB (AGC Off)
|
|
Digital Zoom
|
36x |
| Lens |
12x Zoom Video AF (F1.6, f=3.43~122.4mm) |
|
Minimum illumination
|
Color 0.1Lux (30IRE), black and white 0.002Lux (30IRE), DSS ON 0.0001Lux(128FLD,30IRE)
|
|
Color to black and white
|
IR Cut Filter & Digital Slow Shutter
|
|
Privacy shade
|
ON/OFF/8 area
|
|
3D digital noise reduction
|
ON/OFF |
|
Automatic gain
|
ON/OFF |
| WDR |
ON/OFF (before/in/after/user)
|
|
Backlight compensation
|
Optional area high quality backlight compensation
|
|
Frame accumulation
|
ON/OFF |
|
The electronic shutter speed
|
1/50 ~ 1/10,000s (Manual, 8 steps) |
|
E-slow door
|
2FLD~128FLD/OFF |
|
OSD menu
|
English
|
|
Image flip/mirror feature
|
ON/OFF
|
| Strong inhibition |
ON/OFF(16 area) |
| Gamma adjustment |
CRT/LCD/USE(0.45-1.00) |
|
Input/output control
|
9 Pin Flat Cable |
|
Supply voltage
|
12VDC (9V~15V) |
|
Power consumption
|
Nomal 2.04W/170mAMax. 4.68W/390mA |
Applications:
Applicable to the plaza, ports, industrial parks , Corridors, parking lot, RC hobby ,quadcopter , unmanned aerial vehicles (UAV) and other places of monitoring .
Competitive Advantage:
CNB ZCN-21Z36F ultra-low according to integration box camera , Day & Night , 36x optical , 1/4" High Sensitivity CCD Ⅱ,WDR,Screen flashing function . It can be applied to various occasions,.
