Security CCD Camera Module MTV-54G10HP AWC ATW 480TVL 64 Position

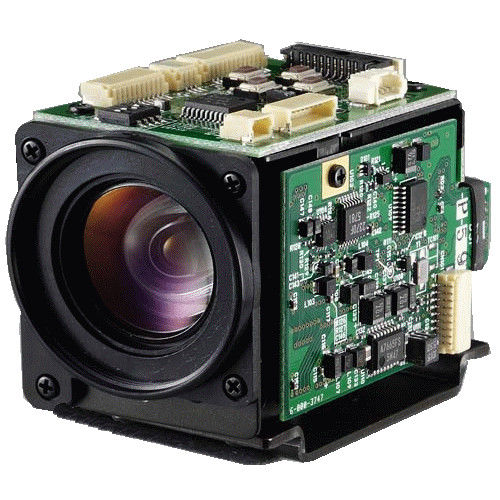

Large Image : Security CCD Camera Module MTV-54G10HP AWC ATW 480TVL 64 Position

Product Details:

Place of Origin:	China
Brand Name:	Mintron
Model Number:	MTV-54G10HP

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Delivery Time:	15days
Payment Terms:	T/T,PAYPAL
Supply Ability:	1000pcs/month

Detailed Product Description

Sensor:	1/4-inch CCD Image Sensor	RESOLUTION:	480TVL
Signal System:	PAL / NTSC	POSITION:	64 Position (Zoom，Focus)
Optical Zoom:	10X Optical	DIMENSIONS:	62 Mm (L) X 38.5 Mm (W) X 40 Mm (H)
POWER SUPPLY:	DC12V±1V / 3.6W(Max)

Security CCD Camera Module MTV-54G10HP AWC ATW 480TVL 64 Position

Features:

* 10X optical zoom auto focus camera
* 1/4" COLOR ZOOM CCD CAMERA
* Mintron MTV-54G10HP 10X 1/4 COLOR ZOOM CCD CAMERA
* ATW: Auto tracking white balance.
* AWC: One push lock white balance.

Description:

MODEL NO.		MTV-54G10HN		MTV-54G10HP
TV SYSTEM		NTSC			PAL
IMAGE SENSOR		1/4-inch CCD Image Sensor
CCD TOTAL PIXELS		811(H) X 508(V)	795(H) X 596(V)
SCANNINGSYSTEM		525 lines, 60 fields/sec	625 lines, 50 fields/sec
SYNC SYSTEM		Internal / VD-Lock
MINIMUM ILLUMINATION	Legacy mode	2.5 Lux ( F1.8, 5600ºK)
	Star light Mode	0.07 Lux ( F1.8, 5600ºK )
RESOLUTION		480TVL
S/ N RATIO		48dB ( MIN ) / 52dB ( TYP ) (AGC OFF,r=1,APC OFF,Y-OUT)
WHITE BALANCE	Mode	ATW / AWB / FIX ( Zero color rolling)
	Range	3200 ~ 9600 ºK
B.L.C. FUNCTION		Super BLC,48 zone BLC
GAMMA CORRECTION		0.45 /1
AGC		AUTO (18dB max)
ALC		AUTO / FIX
IMAGE NEGATIVE		Select by OSD menu
MONITION DETECT		48 zone (select by OSD)
CROSS LINE		ON/OFF Select by OSD menu (position adj. by software)
FREEZE FUNCTION		Alarm in trigger or Select by OSD
ELECTRONIC SHUTTER		AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
LENS		10X Optical ZOOM LENS ,F1.8(W)~2.9(T),f=4.2mm(W)~42mm(T)
		Diagonal		W(56.4º) / T(6.1º)
		Hor.		W(46.4º) / T(4.9º)
		Ver.		W(35.6º) / T(3.7º)
ZOOM		100X (10X optical 10X Digital)
FOCUS		Auto / Manual
POSITION		64 Position (Zoom,Focus)
VIDEO OUTPUT		Composite & Y/C output 1.0Vp-p at 75 ohm
CONTROL FUNCTION		Dry Switch , RS-232C/RS-485(Drive option) , OSD control
OSD LANGUAGE SELECT		ENGLISH / CHINESS_Simp / JAPANESE
COMMUNICATION BAUD RATE		9600 BPS
OPERATION TEMPERATURE		-10℃ TO 50℃
OPERATIONAL HUMIDITY		within 85%RH
POWER SUPPLY		DC12V±1V / 3.6W(Max)
DIMENSIONS		62 mm (L) X 38.5 mm (W) X 40 mm (H)
