10x 520TVL Mini NTSC Camera Module From Mintron MTV-54G15HP

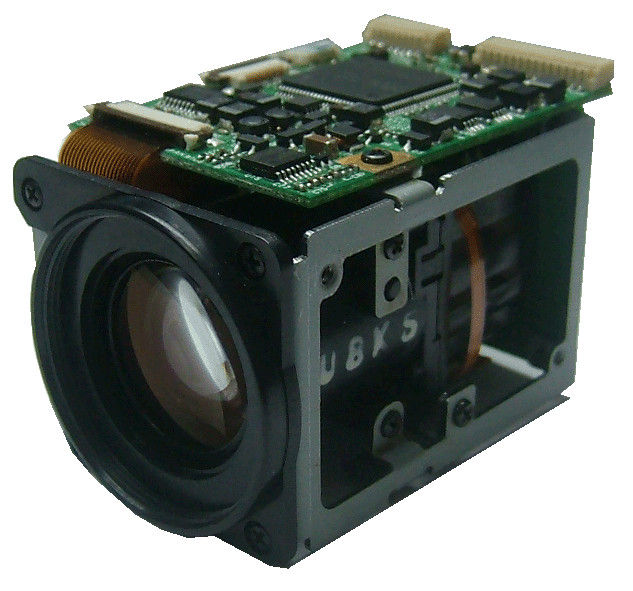

Large Image : 10x 520TVL Mini NTSC Camera Module From Mintron MTV-54G15HP

Product Details:

Place of Origin:	China
Brand Name:	Mintron
Model Number:	MTV-54G15HP

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Delivery Time:	15days
Payment Terms:	T/T,PAYPAL
Supply Ability:	1000pcs/month

Detailed Product Description

Sensor:	1/4-inch CCD Image Sensor	RESOLUTION:	520TVL
Signal System:	PAL / NTSC	POSITION:	64 Position (Zoom，Focus)
Optical Zoom:	10X Optical	DIMENSIONS:	62 Mm (L) X 38.5 Mm (W) X 40 Mm (H)
POWER SUPPLY:	DC12V±1V / 3.6W(Max)

10x 520TVL Mini NTSC Camera Module From Mintron MTV-54G15HP

Adantage:

* 10X optical zoom auto focus camera
* 1/4" COLOR ZOOM CCD CAMERA
* Mintron MTV-54G15HP 10X 1/4 COLOR ZOOM CCD CAMERA
* ATW: Auto tracking white balance.
* AWC: One push lock white balance.

Specification:

MODEL NO.		MTV-54G15HN		MTV-54G15HP
TV SYSTEM		NTSC			PAL
IMAGE SENSOR		1/4-inch CCD Image Sensor
CCD TOTAL PIXELS		~ 410K	~ 470K
SCANNING SYSTEM		525 lines, 60 fields/sec	625 lines, 50 fields/sec
SYNC SYSTEM		Internal / External(VD-Lock / ±1Hz)
MINIMUM ILLUMINATION	Legacy mode	2.5 Lux F1.8
	Star light Mode	0.07 Lux F1.8
RESOLUTION		520TVL
S / N RATIO		46dB ( MIN ) / 50dB ( TYP ) (AGC OFF,r=1,APC OFF,Y-OUT)
WHITE BALANCE	Mode	AUTO (ATW or AWB)
	Range	3200 ~ 9600 ºK
B.L.C. FUNCTION		ON/OFF
GAMMA CORRECTION		0.45 /1
AGC		AUTO (24dB max
ALC		AUTO / FIX
IMAGE NEGATIVE		Select by OSD menu
MONITION DETECT		48 zone (select by OSD)
CROSS LINE		ON/OFF Select by OSD menu (position adj. by software)
FREEZE FUNCTION		Alarm in trigger or Select by OSD
ELECTRONIC SHUTTER		AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
LENS		10X optical ZOOM LENS,F1.8~2.9,f=4.2~42.0mm
ZOOM		100X (10X optical 10X Digital)
FOCUS		Auto / Manual
POSITION		64 Position (Zoom,Focus)
VIDEO OUTPUT		Composite & Y/C output 1.0Vp-p at 75 ohm
		Digital output 8bit YUV4:2:2
CONTROL FUNCTION		Programmable RS-232 and RS-485 (Driver Option) RS-485 will be standard offer if not indicate one of driver options when Order.
OSD CONTROL		Zoom, Focus, IRIS, WB, AGC, Position, C-Gain, APC Gain
OSD LANGUAGE SELECT		ENGLISH / CHINESS_Simp / JAPANESE
OPERATION TEMPERATURE		-10℃ TO 50℃
OPERATIONAL HUMIDITY		within 85%RH
POWER SUPPLY		DC12V±1V / 3.6W(Max)
