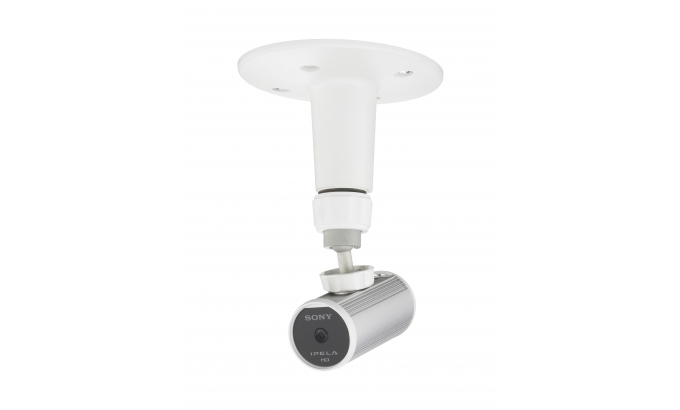

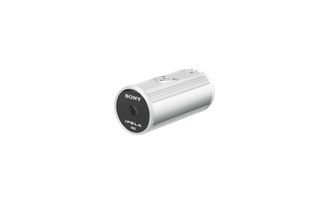

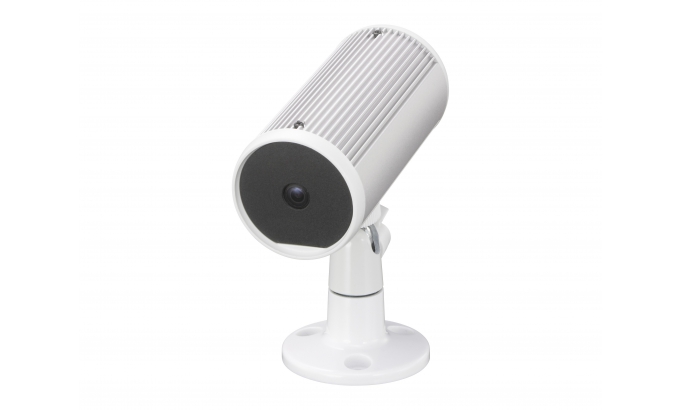

3 Megapixel Network IP Camera Motion Detection SONY SNC-CH210 CMOS

Large Image : 3 Megapixel Network IP Camera Motion Detection SONY SNC-CH210 CMOS

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	SNC-CH210

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	15days
Payment Terms:	T/T,PAYPAL
Supply Ability:	200pcs / month

Detailed Product Description

Image Sensor:	1/2.8 Type Progressive Scan "Exmor" CMOS Sensor	Effective Pixels:	Approx. 3 Megapixels
SignalSignal System System:	NTSC/PAL	SignalSignal System System:	NTSC/PAL
Lens:	Fixed	Lens:	Fixed
Dimensions:	φ44 X 93 Mm	Dimensions:	φ44 X 93 Mm
Mass:	100G	Mass:	100G

3 Megapixels Network IP Camera Motion Detection SONY SNC-CH210 CMOS

Advantage:

Designed for a compact budget, this space-saving camera has several top-end features, making it an obvious choice for a wide range of surveillance applications.

The SNC-CH210 not only captures pristine HD images, but it provides users with a new way to use them

*   Excellent HD picture quality
    Very high resolution images with a full 30fps available at 1080p resolution. Higher resolution images mean more detail in the picture and progressive video leads to better images after compression

*   Exmor CMOS Sensor
    High resolution CMOS sensor with low noise characteristics for improved image acquisition. Derived from Sony's broadcast product range, Exmor is one of the highest quality image sensors available

*   Stream Squared function
    An incredibly useful function that allows simultaneous streaming of two 4:3 aspect ratio videos in user-selectable SD resolutions. You can select the entire image or a portion of the image from the original view and resize to SD resolution. With this feature theh SNC-CH210 can replace two SD cameras installed in the same line of view.

*   Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability
    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images

*   Innovative design
    A compact, unobtrusive design available in two body colours, designed to blend in with its surroundings.

*   Power over Ethernet (PoE) capability
    Supporting Power over Ethernet (PoE), the SNC-CH210 can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment

*   ONVIF (Open Network Video Interface Forum) compliance
    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices.

Features:

* Excellent HD picture quality with 1080p resolution at 30fps
* Exmor CMOS Sensor
* Stream Squared function: two views from one camera
* Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability
* Innovative design: compact, slim and with two body colours
* Power over Ethernet (PoE) capability
* ONVIF (Open Network Video Interface Forum) compliance

Specification:

Camera
Image Sensor	1/2.8 type progressive scan "Exmor" CMOS sensor
Number of Effective Pixels	Approx. 3 Megapixels
Signal System	NTSC color system/PAL color system (switchable)
Sync System	Internal synchronization
Minimum Illumination (50 IRE)	2.0 lx (AGC 38 dB / 50 IRE)
Minimum Illumination (30 IRE)	1.5 lx (AGC 38 dB / 30 IRE)
Gain	Auto
Shutter Speed	1 s to 1/10000 s
Exposure Control	Auto, EV Compensation, Auto Slow Shutter
White Balance	Auto(ATW, ATW-PRO) , Preset, One-push WB, Manual
Lens	fixed
Powered Zoom	No
Easy Zoom	No
Powered Focus	No
Horizontal Viewing Angle	88°
Focal Length	f = 3.3 mm
F-Number	F2.8
Minimum Object Distance	500 mm
IR Illuminator	No
Camera Features
Day/Night	Electronic D/N
Wide-D	No
Tone Correction	No
Noise Reduction	NR
Image Stabilizer	No
Vandal Resistant	No
Ingress Protection	No
Video
Resolution	2048x1536(JpegOnly), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960, 1376x768, 1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480, 720x480, 640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144
Compression Format	H.264, MPEG-4, JPEG
Maximum Frame Rate	JPEG: 12 fps (2048x1536)/15 fps (1920x1080)/30 fps (1280x720) MPEG-4: 15 fps (1920x1080)/30 fps (1280x720) H.264: 15 fps (1920x1080)/30 fps (1280x720)
Multi streaming Capability	Dual streaming*1
Number of Clients	5
Intelligent Video/Audio Analytics
Analytics Architecture	DEPA
Intelligent Motion Detection	Yes
System Requirements
Operating System	Microsoft Windows XP Windows Vista (32 bit) Windows 7 (32 bit, 64 bit)
Processor	Intel Core2 Duo 2 GHz or higher
Memory	1 GB or more
Web Browser	Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0 Firefox Ver. 3.5 (plug-in free viewer only) Safari Ver. 4.0 (plug-in free viewer only) Google Chrome Ver.4.0 (plug-in free viewer only)
Network
Protocols	IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Number of IP Address/Mac ADDRESS	1
ONVIF Conformance	Profile S
Wireless Network	No
Authentication	IEEE802.1X
Interface
Alarm Input (Sensor Input)	x1
USB Slots	No
General
Power Requirements	IEEE 802.3af compliant (PoE) Class 1
Power Consumption	2.4 W
Operating Temperature	0 to +50℃ +32°F to +122°F
Storage Temperature	-20 to +60℃ -4 to +140°F
Operating Humidity	20% to 80%
Storage Humidity	20% to 95%
Dimensions*2	φ44 x 93 mm φ1 3/4 x 3 3/4 inches
Mass	100 g
Safety Regulations	UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A
Supplied Accessories	CD-ROM (User's Guide, and supplied programs) (1) Installation Manual (1) B&P warranty booklet (1) Front sheet (with logo) (1) Front sheet (without logo) (1) Sensor input cable (1)
