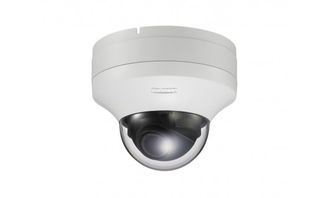

HD Mini Network IP Camera Dome Sony SNC-DH240 View-DR and XDNR Dual-stream

Large Image : HD Mini Network IP Camera Dome Sony SNC-DH240 View-DR and XDNR Dual-stream

Product Details:

Place of Origin:	Japan
Brand Name:	SONY
Model Number:	SNC-DH240

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	7days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Image Sensor:	1/2.8-type Exmor CMOS	Effective Pixels:	Approx. 3.27Megapixels
Zoom Ratio:	Optical Zoom 2.9x , Digital Zoom 4x	Dimensions:	φ140 X 118 Mm
Mass:	Approx. 750 G	Power Consumption:	10.2 W Max.

HD Mini Network IP Camera Dome Sony SNC-DH240 View-DR and XDNR Dual-stream

Minidome 1080p/30 fps Network IP Camera :
Better pictures mean more incident detection and better evidence, and with Sony's ExmorTM Full-HD (1920x1080) image sensor the SNC-DH240 captures more detail than ever.
This feature-rich Full HD minidome security camera comes with Sony's image enhancement expertise. It includes View-DR for a very wide dynamic range in difficult lighting conditions, and XDNR for incredibly powerful noise reduction.
The SNC-DH240 supports Power over Ethernet (PoE) for easy installation with only one cable, and it confirms to the Open Network Video Interface Forum (ONVIF) for compatibility with other network video devices – even from other manufacturers.

Sony SNC-DH240 Mini Dome IP Camera Feature:
*   Full HD (1920x1080) resolution
    Detailed Full HD progressive images. Progressive acquisition (as opposed to interlace) means that images are more stable to view, contain more information and compress more efficiently - without "interlace artefacts".
*   Exmor CMOS Sensor
    High resolution CMOS sensor with low noise characteristics for improved image acquisition. Derived from Sony's broadcast product range, Exmor is one of the highest quality image sensors available
*   Triple Codec Network Operation
    This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images
*   View-DR (Visibility Enhanced Wide Dynamic Range) for extra dynamic range in images captured by the camera
    With Sony's View-DR (Visibility Enhanced Wide Dynamic Range) innovation, you can achieve a high contrast ratio of 125dB. This ensures realistic tonal detail, and state-of-the-art image enhancement with a wide, dynamic range capability.
*   XDNR eXcellent Dynamic Noise Reduction to improve pictures in low illumination
    XDNR (Excellent Dynamic Noise Reduction) technology virtually eliminates image blur in low-light conditions, enabling users to clearly capture images that have not been easy to portray in the past. It also overcomes the problems associated with many competitor camera models. What's more, when both XDNR and Visibility Enhancer are turned on, the cameras can achieve four times the sensitivity compared to when they are off. This technology is ideal for any outdoor surveillance monitoring, such as in a car park at night.
*   DEPA Advanced analytics triggers alarms and alerts based on user-created rules
    DEPA Advanced Intelligent Video and Audio Analytics can analyse images to detect whether pre-selected objects have moved, raising an alarm if an event is detected. Users create a set of rules that determine exactly how and when this happens.
*   Power over Ethernet (PoE) capability
    Supporting Power over Ethernet (PoE), the SNC-DH240 can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment.
*   ONVIF (Open Network Video Interface Forum) compliance
    The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices.

Sony SNC-DH240 Mini Dome IP CameraSpecification:

Camera
Image Sensor	1/2.8-type Exmor CMOS
Number of Effective Pixels	Approx. 3.27 Megapixels
Signal System	NTSC color system/PAL color system (switchable)
Sync System	Internal synchronization
Minimum Illumination (50 IRE)	Color: 0.40 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 50 IRE) B/W: 0.25 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 50 IRE)
Minimum Illumination (30 IRE)	Color: 0.25 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 30 IRE) B/W: 0.15 lx (F1.2, View-DR OFF, VE OFF, AGC High, XDNR Mid, 30 IRE)
Dynamic Range	Equivalent to 90 dB by View-DR Technology
S/N Ratio (Gain 0 dB)	More than 50 dB (AGC 0 dB)
Gain	Auto (3 levels)
Shutter Speed	1/1 s to 1/10000 s
Exposure Control	Exposure compensation, AGC, Shutter speed
White Balance	ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
Lens	Built-in varifocal lens
Powered Zoom	No
Easy Zoom	Yes
Zoom Ratio	Optical zoom 2.9x Digital zoom 4x Total zoom 11.6x
Powered Focus	Yes
Horizontal Viewing Angle	88.5° to 32.3°
Vertical Viewing Angle	65.2° to 24.2°
Focal Length	f = 3.1 mm to 8.9 mm
F-Number	F1.2 to F2.1
Minimum Object Distance	300 mm
IR Illuminator	No
Camera Features
Day/Night	True D/N
Wide-D	View-DR
Tone Correction	VE (VE)
Noise Reduction	XDNR
Image Stabilizer	No
Vandal Resistant	No
Ingress Protection	No
Video
Resolution	1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080, 1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800, 1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192
Compression Format	H.264, MPEG-4, JPEG
Maximum Frame Rate	H264: 20 fps (1920 x 1440)/30 fps (1920 x 1080) MPEG-4: 15 fps (1920 x 1440)/25 fps (1920 x 1080) JPEG: 10 fps (1920 x 1440)/15 fps (1920 x 1080)
Multi streaming Capability	Dual streaming*1
Number of Clients	10
Intelligent Video/Audio Analytics
Analytics Architecture	DEPA Advanced
Intelligent Motion Detection	Yes
Audio
Compression Format	G.711/G.726
System Requirements
Operating System	Windows XP (32 bit) Professional Edition Windows Vista (32 bit) Ultimate, Business Edition Windows 7 (32/64 bit) Ultimate, Professional Edition
Processor	Intel Core2 Duo 2.33 GHz or higher
Memory	2 GB or more
Web Browser	Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0 Firefox Ver. 3.5 (plug-in free viewer only) Safari Ver. 4.0 (plug-in free viewer only) Google Chrome Ver.4.0 (plug-in free viewer only)
Network
Protocols	IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Number of IP Address/Mac ADDRESS	1
ONVIF Conformance	Profile S
Wireless Network	No
Authentication	IEEE 802.1X
Interface
Analog Video Output	BNC (x1), 1.0 Vp-p, 75 Ω, unbalance, sync negative 600 TV lines (analog video)
Analog Monitor Output for Setup	Phono jack (x1)
Microphone Input	Mini jack (monaural)
Line Input	Mini jack (monaural)
Line Output	Mini jack (monaural), Maximum output level: 1 Vrms
Network Port	10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)	x1, make contact, break contact
Alarm Output	x2, AC/DC 24 V, 1 A
USB Slots	No
General
Power Requirements	IEEE 802.3af compliant (PoE) Class 0, DC 12 V, AC 24 V
Power Consumption	10.2 W max.
Operating Temperature	-10℃ to +50℃ +14°F to +122°F
Cold Start Temperature	0℃ to +50℃ +32°F to +122°F
Storage Temperature	-20℃ to +60℃ -4°F to +140°F
Operating Humidity	20% to 80%
Storage Humidity	20% to 95%
Dimensions (W x H x D)*2	φ140 x 118 mm φ5 5/8 x 4 3/4 inches
Mass	Approx. 750 g Approx. 1 lb 10 oz
Safety Regulations	JATE Technical standard (LAN) UL2044, IEC60950-1(CB) VCCI (Class A), FCC(Class A), IC (Class A) Emission: EN55022(Class A)+EN50130-4 Immunity: EN55022(Class A)+EN55024 Emission: AS/NZS CISPR22(Class A)
Supplied Accessories	CD-ROM (User's Guide, supplied programs) (1) Installation Manual (1set) Bracket (1) Template (1) Wire rope (1) Camera unit mounting screws (x2) Shoulder screw M4 (1) Audio cable (1) 1/O cable (1) LAN cable (1) BNC cable (1) Power input cable (1) Warranty booklet (1)
