Detailed Product Description
| Screen Size: |
5 Inch LCD Screen |
Resolution: |
800 X 480 Pixel |
| Antenna: |
2.4GHz |
External SD Card: |
TF Card 1GB-32GB (optional) |
| AC Adapter: |
DC 5V 2A |
Weight: |
260G |

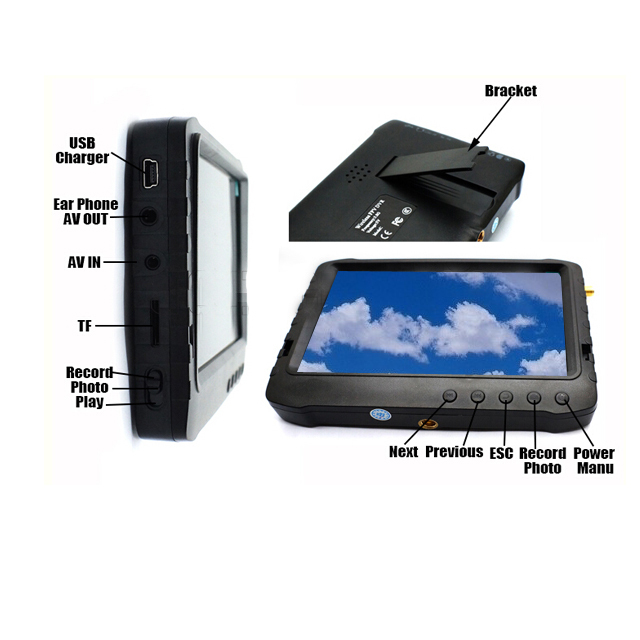

2.4Ghz 8chs wireless mini monitor with sun shield
Feature:
* 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen;
* 8CHS 2.4Ghz wireless receiver ,one monitor for multiple plane with different frequency;
* Press one button , then it begin to scan and lock channels Automically, so easy.
* Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment.

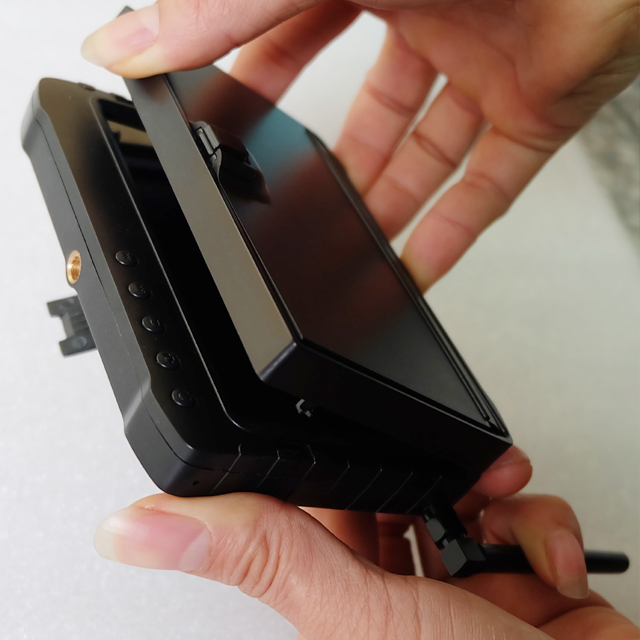

* Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time.
* Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one.

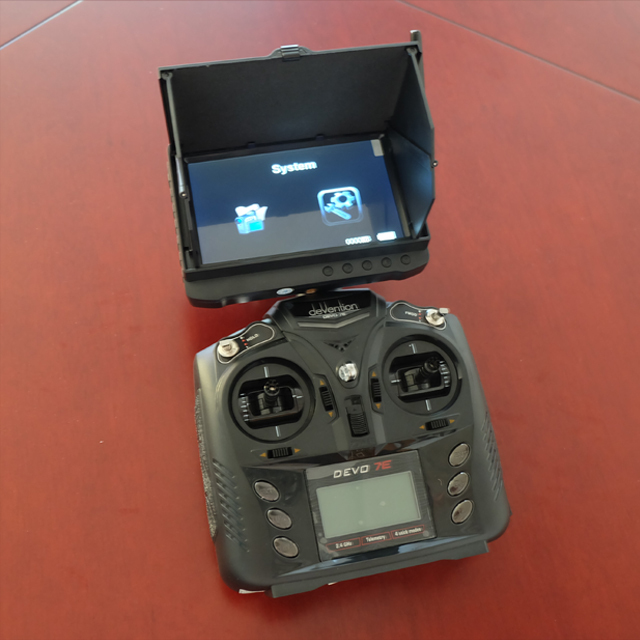

* Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.
Specifications:
| Receiver |
2.4Ghz 8CHS
-88dB |
A1: 2414MHz; A2:2432MHz; A3: 2450MHz; A4:2468MHz.
A5:2490MHz; A6:2510MHz; A7: 2390MHz; A8:2370MHz |
| Antenna |
RF-SMA 4 Blade |
| Displayer |
Screen size |
5 inch LCD screen |
| Resolution |
800 X 480 Pixel |
| Contrast |
500:01:00 |
| Brightness |
350 cd/M2 |
| Recorder |
Storage |
TF card 1GB-32GB(optional) |
| Video compress |
MPEG-AVI 30fps |
| Language |
Multiple |
| AV IN |
TV system |
NTSC / PAL (for wired camera) |
| AV-OUT |
Output voltage |
3.6-4.2 V |
| Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left:20MW + right 20mW[16O](suit to largest volume) |
| Speaker |
1W |
| HD 5-inch LCD Screen |
Active area |
108mm(W) x 64.8mm(H) |
| Resolution |
800 x 480 Pixel |
| Luminance for LCM |
200cd/M2 |
| Video |
Resolution |
720*576/720*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
| Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB (optional) |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Votage |
DC 5V |
| Current(receiving mode) |
600MA |
| Current(recording mode) |
680MA |
| Current( recording with off-screen mode) |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200Mah |
| Standby time |
Wireless record |
≥9.5 hours(off-screen); |
| Wired record |
≥12 hours(off-screen); |
| Sunshade |
one button open |
Patend LCD hood |
| Size(LxWxH) |
Without sunshade |
131 x 90.5 x 18mm |
| Size(LxWxH) |
With sunshade |
131 x 90.5 x 28mm |
| Weight |
Without sunshade |
215G |
| Weight |
with sunshade |
260G |
Package:
* DVR x 1pcs ;
* usb cable x 1pcs ;
* AC adapter x 1pcs ;
* AV-OUT cable x 1pcs ;
* AV-IN cable x 1pcs ;
