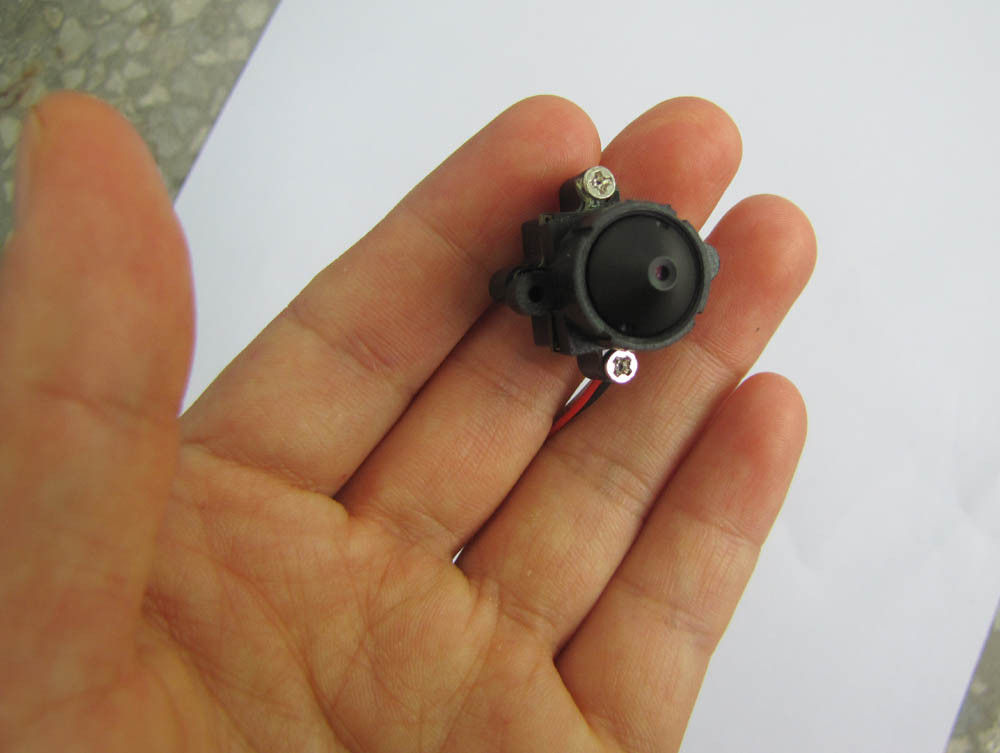

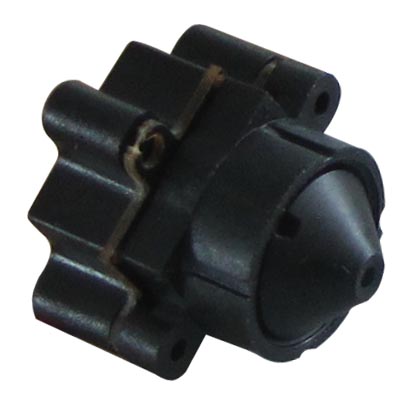

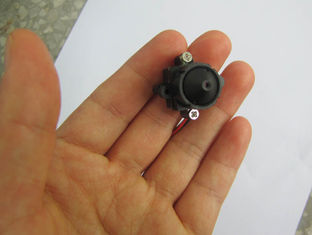

6G Micro Spy Camera 90deg VOA 0.008Lux 2 Install Holes 6G 520TVL

Large Image : 6G Micro Spy Camera 90deg VOA 0.008Lux 2 Install Holes 6G 520TVL

Product Details:

Place of Origin:	China
Model Number:	SPY520SP36

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	500pcs / month

Detailed Product Description

Sensitivity:	0.008Lux/F1.2	Lens:	3.6mm F3.0 / 90 Degree
Sensor:	Single Chip 1/4 CMOS	Horizontal Resolution:	520TVL
Size:	14mm X 14mm X 20mm	Weight:	6G

This mini camera comes with high sensitive CMOS sensor, which has excellent video function and very low illumination. It is of high stability and ultra long working life.

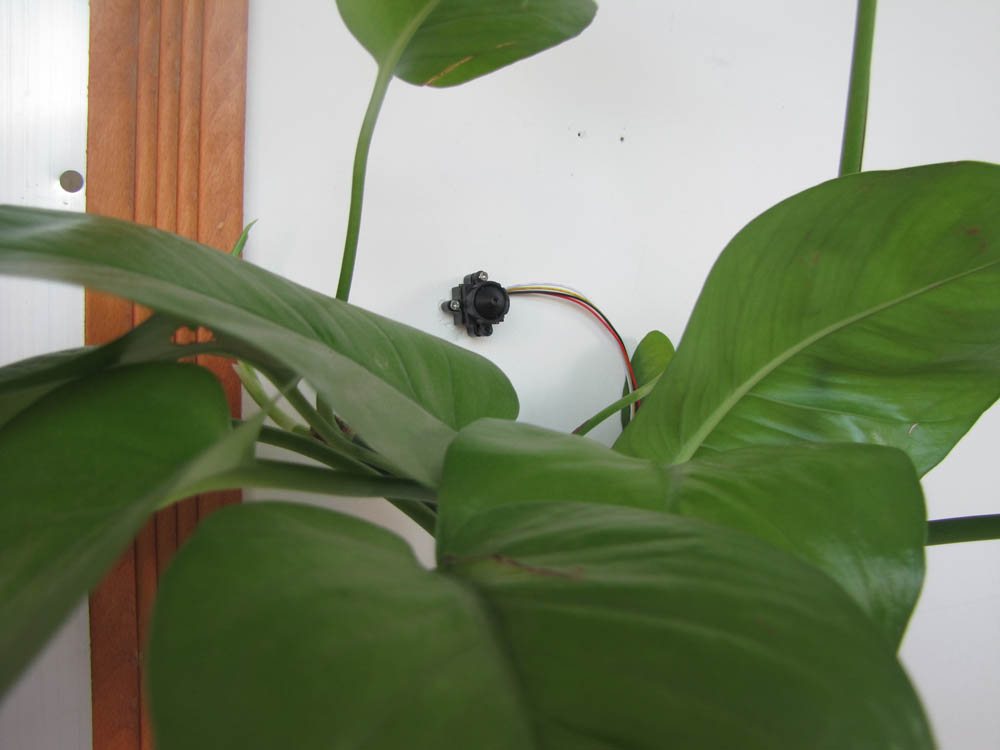

Small size(14X14X20mm) and light weight(6g), with two screw holes(screws provided), it is easy to install into the ceiling, wall, cabinets, equipments, etc. for safe surveillance.0.008lux super low illumination, which can see clearly in almost complete darkness.90 degree broad view of angle.

Features:

1. Small Size: easy to install into narrow room: ceilling,wall,cabinets equipments, etc.;
2. Light Weight with 2 screw holes: easy to install without causing unnecessary damage on object surface;
3. High resolution, high sensitivity, high SNR;
4. 90 degree broad view of angle;
5. Day & night dual mode auto switch;
6. Low Current and power consumption;
7. CMOS sensor generation IV +DSP chip offer true color & HD video

Mini CCTV Camera 90deg VOA 0.008Lux 2 install holes 6G 520TVL Mini Spy Camera
6G Micro Spy Camera 90deg VOA 0.008Lux 2 Install Holes 6G 520TVL

Specifications:

Pick Up Element :	Single chip 1/4 CMOS
Number of pixel :	NTSC:720(H) x 480(V)	PAL : 720(H) x 576(V)
Sensor dimension:	3.584mm(H) x 2.688(V)
Horizontal Resolution:	Approximately 520 TVL
Sensitivity:	0.008Lux/F1.2
Lens & View angle	3.6mm F3.0 / 90 degree
S/N Ratio:	48DB
Video Out :	1.0V p-p/75ohm
Audio Out :	1.0V p-p/1Kohm

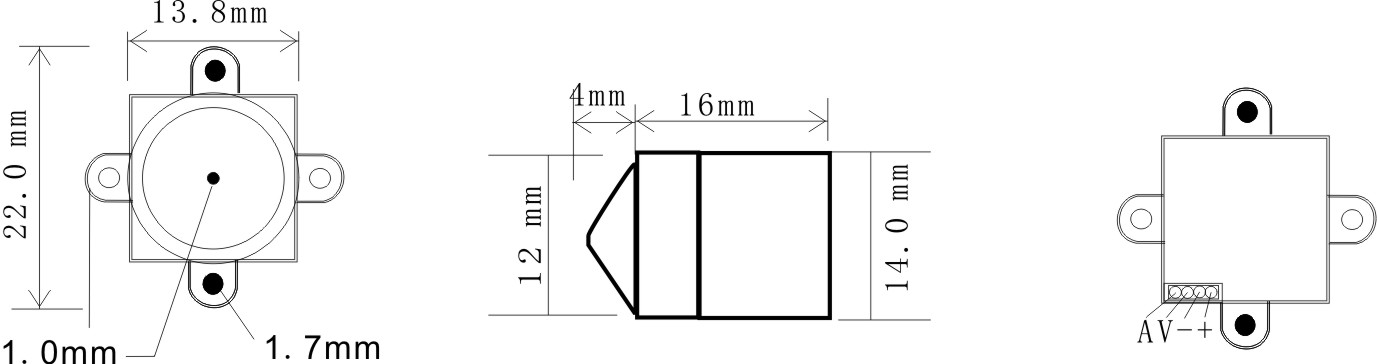

Size (L x W x H) :	14mm x 14mm x 20mm
Weight:	6G
Work Current:	5V: 65mA 12V: 32mA
Power Requirement :	DC 3.3V-24V
Operating	-10 to + 50 Degrees Celsius ,less than 90% RH
Connection:	PIN1->Red DC5V PIN2->Black GND PIN3->Yellow VIDEO OUT PIN4->White AUDIO OUT

Use Method:

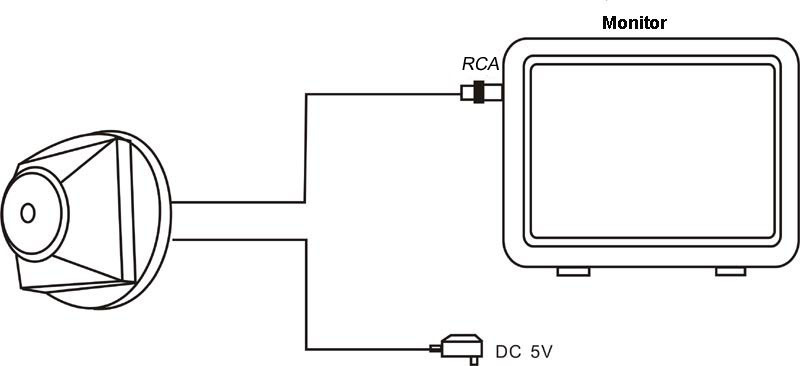

1) Work with TV/monitor: Camera powered by provided AC adatper. Connect it to TV/monitor with RCA/BNC cable. Then watch live video & audio, or record, play on the TV/monitor;

2) Work with DVR(AV-IN jacked ): Camera powered by DVR. Just directly connect the camera with DVR,it starts to work. Then watch live video & audio, or record, play, take pictures on DVR.

Mini CCTV Camera 90deg VOA 0.008Lux 2 install holes 6G 520TVL Mini Spy Camera
