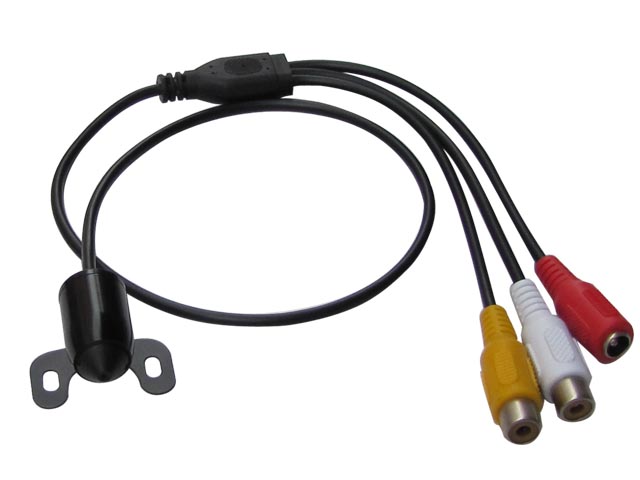

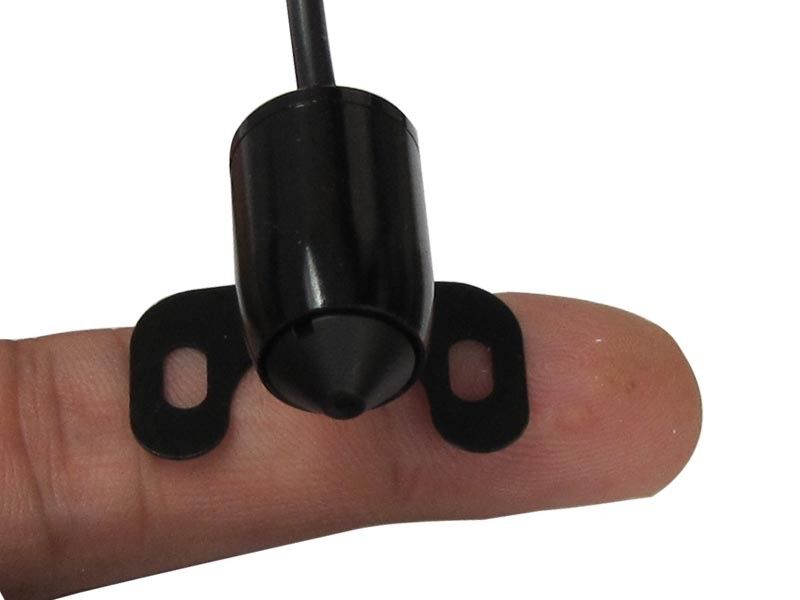

Small Tiny Spy Camera 520TVL Mini Spy CCTV Camera 8G With Audio

Large Image : Small Tiny Spy Camera 520TVL Mini Spy CCTV Camera 8G With Audio

Product Details:

Place of Origin:	China
Model Number:	SPYCM921A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	500pcs / month

Detailed Product Description

Sensitivity:	0.008Lux/F1.2	Lens:	0.5mm F2.0 / 90 Degree
Sensor:	Single Chip 1/3 CMOS	Horizontal Resolution:	520TVL
Size:	27.5mm X 15.0mm	Weight:	8G

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio

Main Features:

* Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
* Light Weight: easy install without causing unnecessary damage on object surface;
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Wide view angle(90 degree );
* Low Illumination, high quality video record function;
* Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video.

Specifications:

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:656(H)×492(V)	PAL:786(H)×576(V)
SENSOR DIMENSION	4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2:1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 : 90 °
S/N RATIO	48dB
ELECTRONIC SHUTTER	OUT (1/60 S TO 1/100000 S)	OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm (only MC908A / MC908-12 / MC908AE)
SIZE (L x D )	27.5mm x 15.0mm
WEIGHT	8g
WORK CURRENT	DC5V: 70mA DC12V: 40mA
POWER REQUIREMENT	DC 5V/12V
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1=>Red Power supply PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=> White AUDIO OUT
