Detailed Product Description
Night Vision Mini SPY Underwater Fish Finder Camera And 5inch LCD Monitor DVR

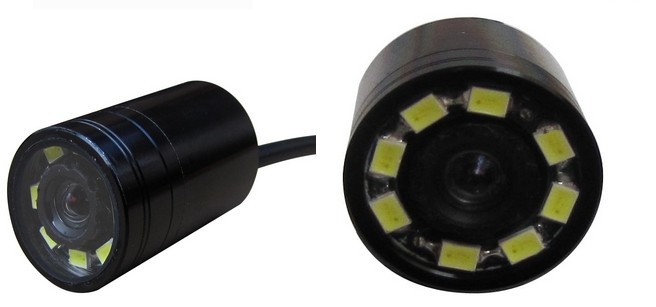

Main Features
* 8 LEDs enable the effective night vision distance up to 5 meters;
* High luminous flux (F1.2) and wide view angle (90°) mini lens;
* Surveillance area up to 100 square meters in the complete darkness;
* Small size, which is easy to install into narrow room and slim tube, etc.;
* 520TVL Digital chip synthesis technology offers true color & HD video;
* 5" lcd HD monitor, support motion detect and loop recording, can take picture;
* 3200mAh battery for DVR, support 32GB card. (This DVR not including SD Card).

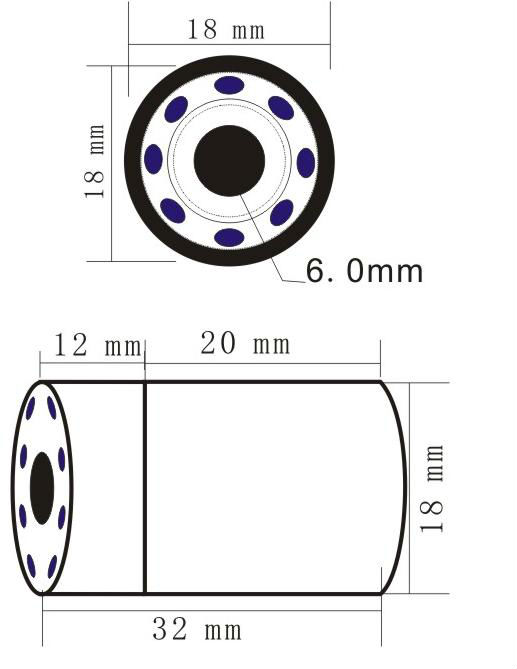

Camera's Specifications:
| Specification |
| Pick up element |
Single chip 1/4" CMOS |
| Number of Pixels |
728(H)x576(V) |
| Signal System |
PAL/NTSC |
| Sensor Dimension |
3.584mm(H) x 2.688mm(V) |
| Horizontal |
Approximately 520TV lines |
| Sensitivity |
5M |
| Lens & View angle |
0.5mm F1.2/90° |
| Lamp control |
1:Light(Default) 2: On-Off 3:Self-Montion |
| LAMP |
8LED : 17600mcd |
| Video Out |
1.0V p-p/75ohm |
| Lamp Control Out |
1:AV(Default) 2:On-Off 3:Photosensitive Resistor |
| Weight |
Camera : 12G |
| Cable Length |
0.5M (additional purchase for longer cable) |
| Work Current |
DC5V: 70mA(Lamp Off)/260mA(Lamp On);
DV12V: 30mA(Lamp Off)/100mA (Lamp On)
|
| Power requirement |
DC5V:(3.6-5V) DC12V:(3.6-24V) |
| Operating |
-10c to +50c , Less than 90%RH |
| Connection |
PIN1->Red DC5V PIN2->Black GND
PIN3->Yellow VIDEO OUT PIN4->White LED Control
|

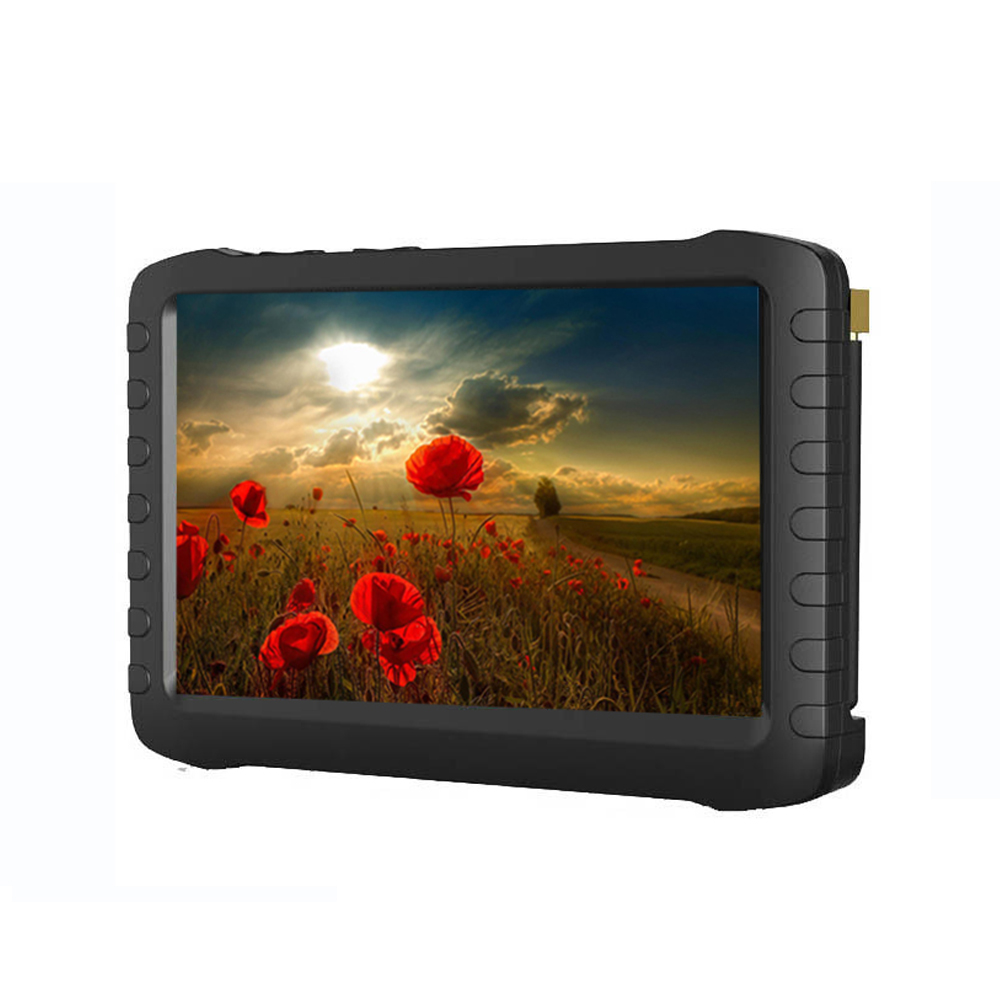

DVR Detail Information:
|
Items(DVR Specification )
|
Value
|
| AV IN |
TV System |
NTSC/PAL |
| Output Voltage |
3.6-4.2V |
| HD 5-inch LCD screen |
Active area |
108mm(W) X 64.8mm(H) |
| Resolution |
800 X 480 Pixel |
| Luminance for LCM |
200 cd/㎡ |
| Video |
Resolution |
720*576 / 640*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
| Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker |
1W |
| Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB(optional) |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Voltage |
DC 5V |
| Current(receiving mode) |
660MA |
| Current( recording mode) |
680MA |
| Current(recording with off-screen mode) |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200mAh |
| Standby time |
Wireless record |
≥9.5 hours(off-screen); ≥5hours(on-screen) |
| Wired record |
≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included. |
| Size (L x W x H) |
131mm x 86mm x 18mm |
| Weight(g) |
205g |

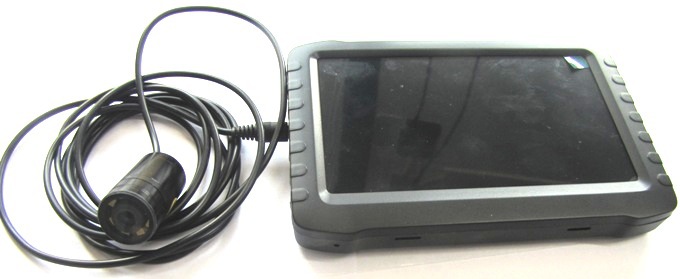

How to use:
1) Connect camera and monitor
2)Open the monitor, then you can live watch video and record
Camera is powered by monitor, monitor is powered by built-in Li- battery
Package:
* Underwater camera with 30m cable x1
* 5inch LCD monitor X 1unit
* User manual X 1 PC
* Stereo earphone X 1unit
* USB Cable X1 PC
* AC adapter X1 unit
* Back holder for installation X 1 pc
