Night Vision Mini Spy Camera FPV 0.008lux , 1G CCTV Audio Camera With Connecter

Large Image : Night Vision Mini Spy Camera FPV 0.008lux , 1G CCTV Audio Camera With Connecter

Product Details:

Place of Origin:	China
Model Number:	MTVL8CON

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	500pcs / month

Detailed Product Description

Technology:	Mini Spy Camera	Sensor:	CMOS
System:	NTSC, PAL	Nigh Vision:	0.008Lux/F1.2
Resolution:	520TVL	Size:	9.5X9.5X12mm
Weight:	1G

Night Vision Mini Spy Camera FPV 0.008lux , 1G CCTV Audio Camera With Connecter

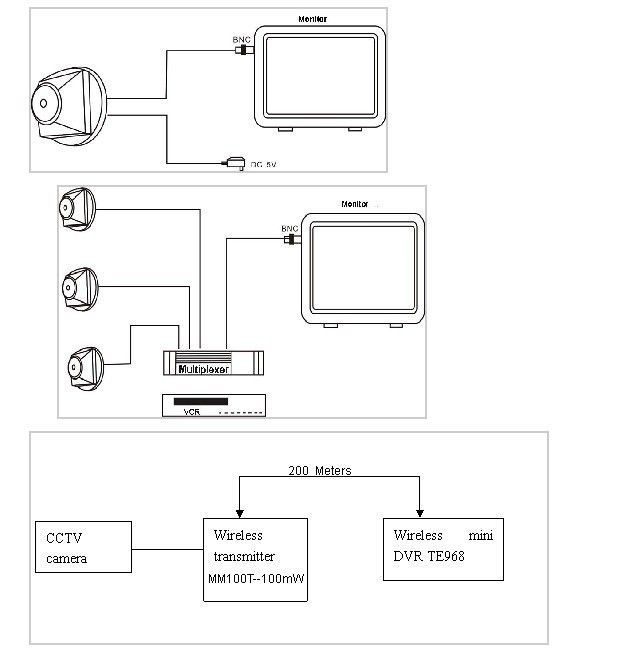

Usage :

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR

Features :

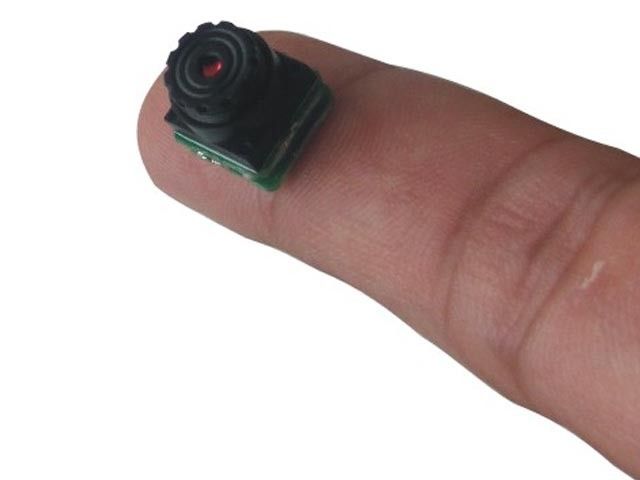

It’s an ultra small high definition CCTV camera with excellent night vision.
Size is 9.5X9.5X12mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Applications:

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats,

Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Specification:

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:656(H)x492(V)	PAL:786(H)x576(V)
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm(H)x3.55mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2:1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 /55 deg
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT (1/60 S TO 1/100000 S)	OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm

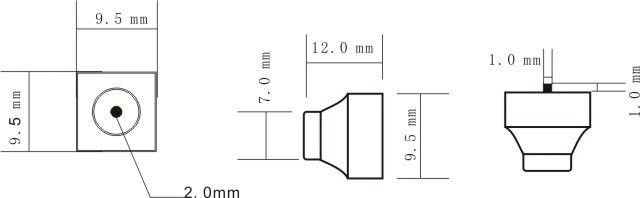

SIZE (L x W x H)	9.5mm x 9.5mmM x 12mm
WEIGHT	1g
WORK CURRENT	70mA
POWER REQUIREMENT	DC 3.3V-6V
OPERATING TEMPERATURE	- 10° C ~ +50°C , less than 90% RH

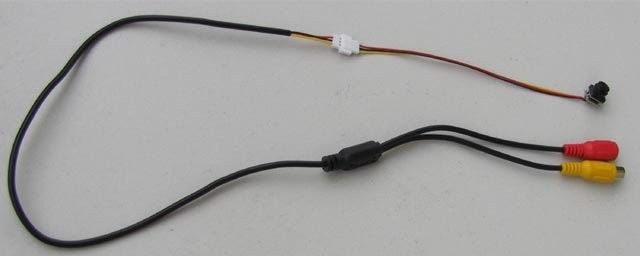

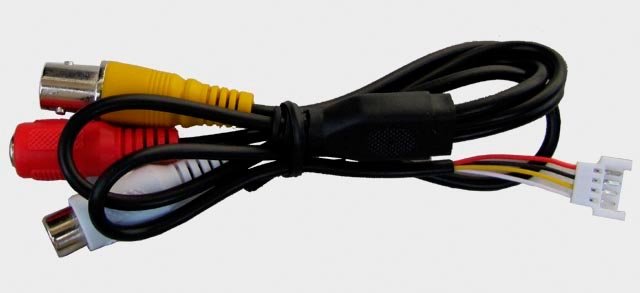

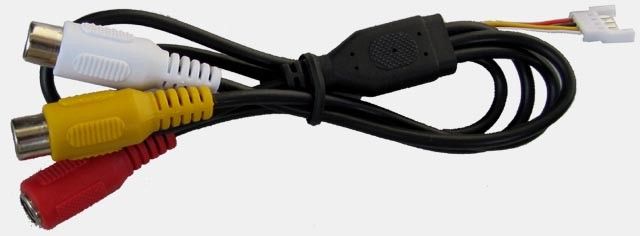

Connection	PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT
