Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition

Certifications
I'm very satisfied with your service. Surely I'll contact you again in our next project.

—— Brian Guest

Awesome transaction, original , very fast delivery I will gladly do business with them .

—— Arun Kumar.B

I had a few questions so I emailed them. I recieved a very quick response with all the info I needed. Very excellent professional team .

—— Juergen Kainz

I'm Online Chat Now

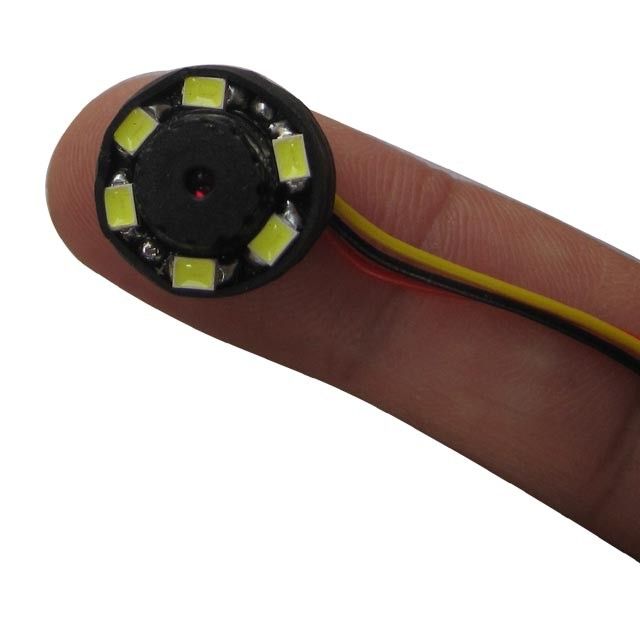

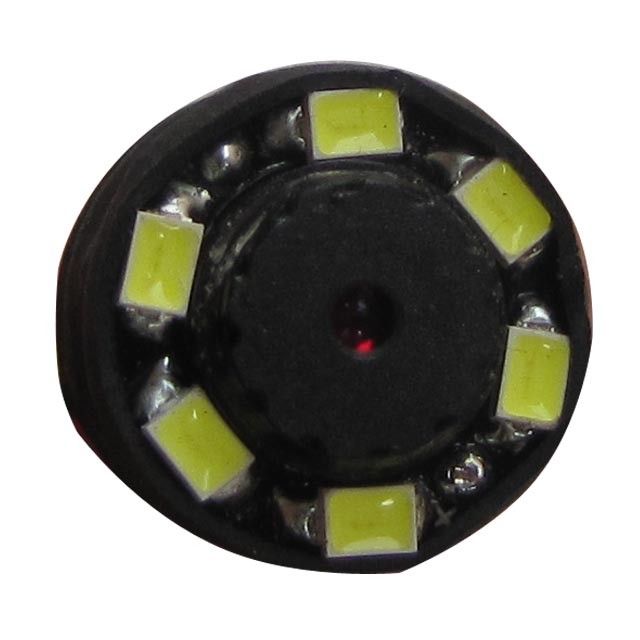

Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition

Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition supplier Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition supplier Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition supplier Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition supplier

Large Image :  Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition

Product Details:

Place of Origin: China
Model Number: SPY6520LED

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Delivery Time: 3days
Payment Terms: T/T,PAYPAL
Supply Ability: 500pcs / month
Detailed Product Description
Type: Mini Spy Camera Night Vision: 0.0Lux , 5M
Resolution: 520TVL System: NTSC, PAL
Size: 14.5X14.5X15.5mm Weight: 3G

520TVL Tiny Spy Video Camera 1/3 CMOS 6 LEDs 0.0Lux high definition





Advantages & Features:
It's a ultra small  high definition CCTV camera with excellent night vision.
Size is 14.5 x 14.5 x 15.5mm  only, Weight is 3g! Very easy to install.
Minimum illumination is 0.0lux, which can view clearly in complete darkness.
Full TV system. Applicable worldwide.



Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.



Applications:



Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.



Specification:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)×492(V) PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2 : 1 Interlace
SENSITIVITY 0.00Lux/5M (LED OPEN)
LENS & VIEW ANGLE 0.5mm F2.0 / 55 °
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
SIZE (L x D) 14.5 x 14.5 x 15.5mm
WEIGHT 3g
WORK CURRENT LED on 200mA
POWER REQUIREMENT DC 5.0V
OPERATING TEMPERATURE - 10° C ~ +50°C , less than 90% RH
Connection PIN1à Red DC5V PIN2à Black GND PIN3à Yellow VIDEO OUT



Package:
1 * Mini camera;

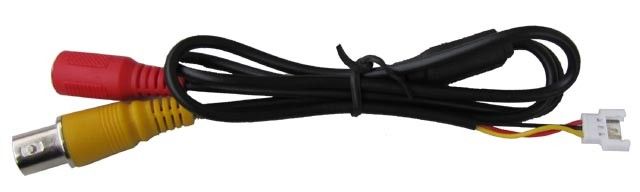

1 * RCA/BNC cable;
1 * AC adapter .



Tiny Spy Video / Audio Camera With 520TVL 1/3 CMOS 6 LEDs 0.0Lux Nigh Vision 5MTiny Spy Video / Audio Camera With 520TVL 1/3 CMOS 6 LEDs 0.0Lux Nigh Vision 5M

Tiny Spy Video / Audio Camera With 520TVL 1/3 CMOS 6 LEDs 0.0Lux Nigh Vision 5MTiny Spy Video / Audio Camera With 520TVL 1/3 CMOS 6 LEDs 0.0Lux Nigh Vision 5M
