Detailed Product Description
| Night Vision Distance: |
5M |
Cable Long: |
Default 0.5M , Optional |
| Sensor: |
CMOS |
View Angle: |
F2.8/90Deg |
| System: |
NTSC Or Pal |

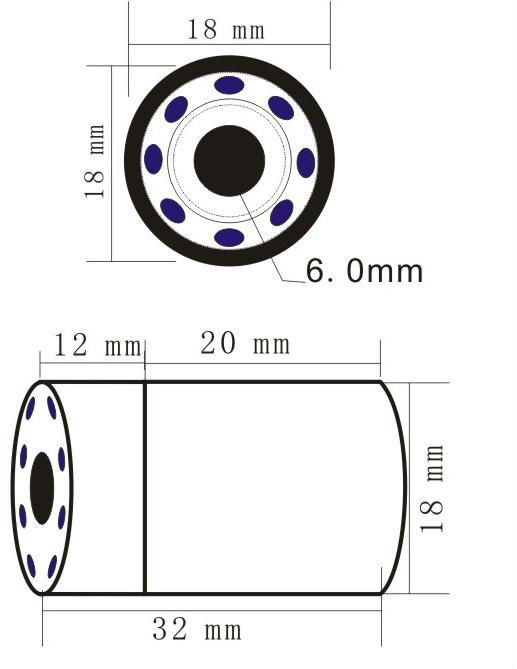

Size: |
18X32mm |
| Weight: |
12G |
|
|

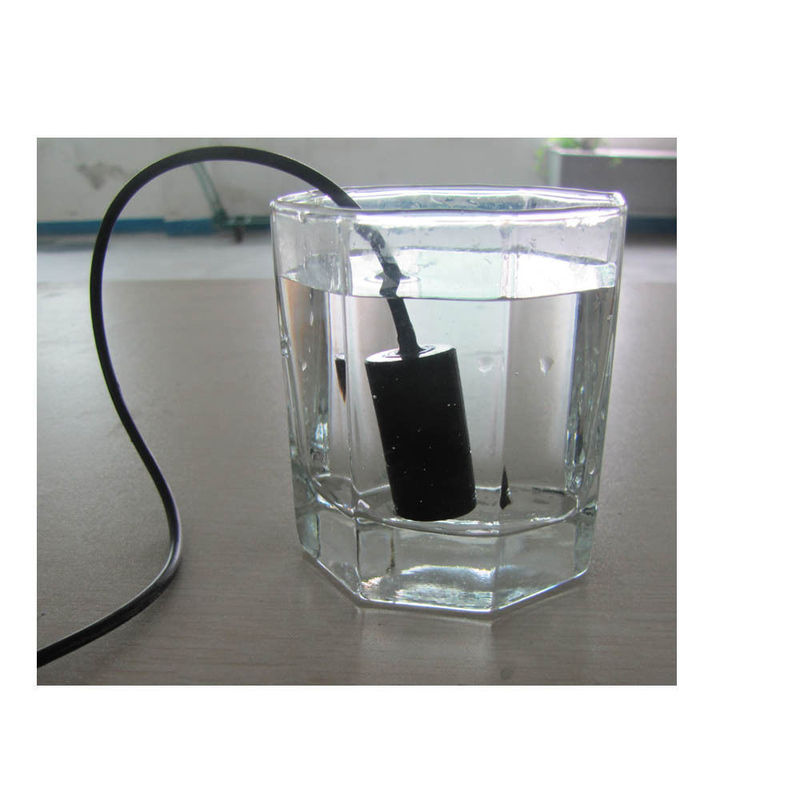

Waterproof Wireless Spy Camera Underwater Fishing LED 90deg 5M
Advantages :
The Mini underwater camera have high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90°) mini lens.
It have 8 controllable LED lamps enable the effective recording distance up to 5 meters, and surveillance area up to 100 square meters in the complete darkness.
This camera is very small volume and light weight, high stability and ultra long working life.
They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc.
Features:
* 8 LEDs enable the effective night vision distance up to 5 meters;
* High luminous flux (F1.2) and wide view angle (90°) mini lens;
* Surveillance area up to 100 square meters in the complete darkness;
* Small size, which is easy to install into narrow room and slim tube, etc.;
* 520TVL Digital chip synthesis technology offers true color & HD video.
How to use:
1) Power the camera by AC adapter
2) Connect camera with TV or other monitor to watch video.
3) Connect DVR to record video.
Applications:
They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc
Mini Underwater Specification:
| Pick up element |
Single chip 1/4" CMOS |
| Number of Pixels |
728(H)x576(V) |
| Signal System |
PAL/NTSC |
| Sensor Dimension |
3.584mm(H) x 2.688mm(V) |
| Horizontal |
Approximately 520TV lines |
| Sensitivity |
5M |
| Lens & View angle |
0.5mm F1.2/90° |
| Lamp control |
1:Light(Default) 2: On-Off 3:Self-Montion |
| LAMP |
8LED : 17600mcd |
| Video Out |
1.0V p-p/75ohm |
| Lamp Control Out |
1:AV(Default) 2:On-Off 3:Photosensitive Resistor |
| Weight |
Camera : 12G |
| Cable Length |
0.5M (additional purchase for longer cable) |
| Work Current |
DC5V: 70mA(Lamp Off)/260mA(Lamp On);
DV12V: 30mA(Lamp Off)/100mA (Lamp On)
|
| Power requirement |
DC5V:(3.6-5V) DC12V:(3.6-24V) |
| Operating |
-10c to +50c , Less than 90%RH |

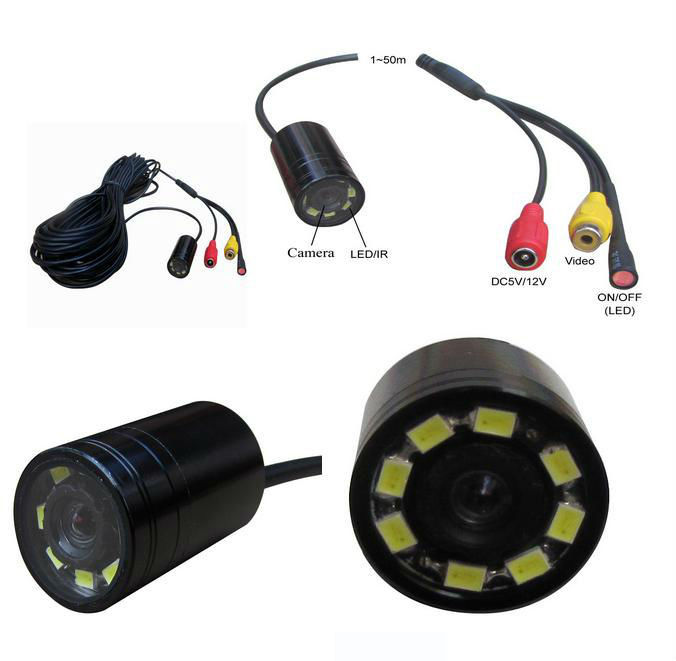

| Connection |
PIN1->Red DC5V PIN2->Black GND
PIN3->Yellow VIDEO OUT PIN4->White LED Control
|
Package:
waterproof camera x1
User manual x1
AC adapter x1
RCA or BNC cable x1 (only one cable, if no choice, default RCA)
