Detailed Product Description
Hidden Mini Spy Video Camera night vision For Business Security
Advantage & Description :

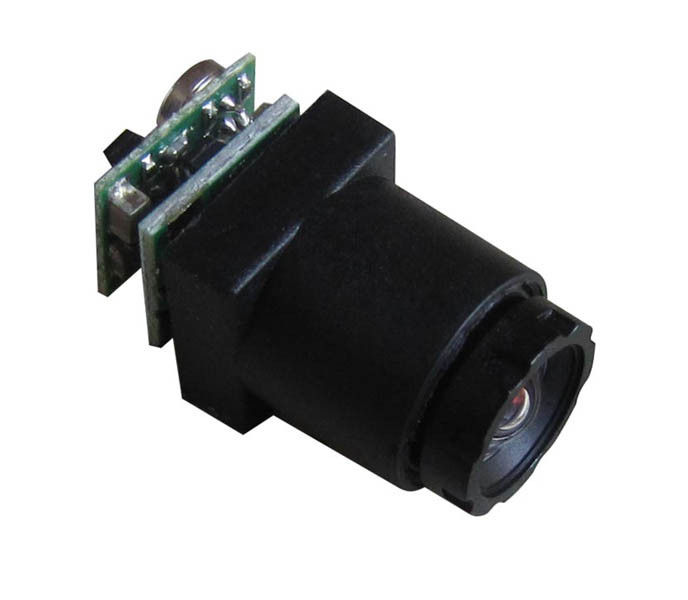

It's an ultra small high definition CCTV camera with excellent night vision.
Size is 10.5X11.5X17.5mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.
Application:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Features:
1. No-interference 5.8G frequency, up to 24 channels for choice.
2.100 meters wireless transmission range;
3. Noble and durable pure brass material;
4. Same size with original optical peephole. Keep original appearance after installation;
5. 0.008LUX super low illumination, which can see visitor clearly under dim light;
6. 90deg wide view angle;
7. 13.8mm small diameter, which is suitable to all doors with peephole. No need to drill hole, just install directly;
8. Low power consumption assures the long time working life;
9. Easy operation: just plug and play!
Installation:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.
Description:
| PICK UP ELEMENT |
Single chip 1/3 CMOS |
| SYSTEM |
NTSC |
PAL |
| NUMBER OF PIXEL |
NTSC:656(H)×492(V) |
PAL:786(H)×576(V) |
| IMAGE SIGNAL PROCESS |
Digital Signal Processing System |
| SENSOR DIMENSION |
4.75mm(H)×3.55mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
| SCANNING SYSTEM |
2:1 Interlace |
| SENSITIVITY |
0.008Lux/F1.2 |
| LENS & VIEW ANGLE |
0.5mm F2.0 /90 ° |
| S/N RATIO |
52dB |
| ELECTRONIC SHUTTER |
OUT (1/60 S TO 1/100000 S) |
OUT (1/50 S TO 1/100000)S |
| AUTO GAIN CONTROL |
OUT |
| WHITE BALANCE CONTROL |
OUT |
| BACK LIGHT COMPENSATION |
OUT |
| VIDEO OUT |
1.0V p-p/75ohm |

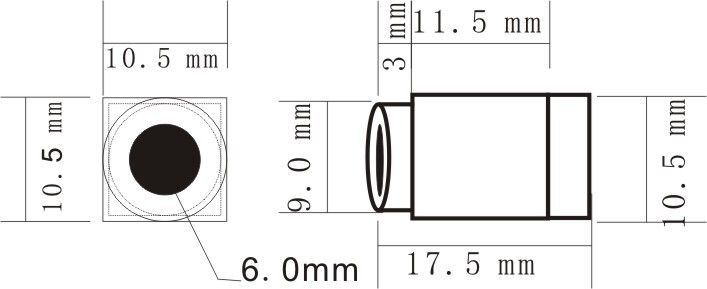

| SIZE (L x W x H) |
10.5x10.5x17.5mm |
| WEIGHT |
2g |
| WORK CURRENT |
70mA |
| POWER REQUIREMENT |
DC 3.6V-24V |
| OPERATING TEMPERATURE |
- 10° C ~ +50°C ,less than 90% RH |

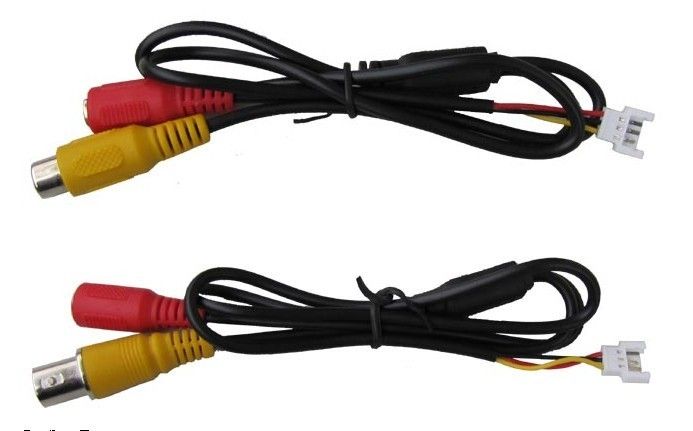

| Connection |
PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT |
Package include:
camera X 1
adapter x 1
