Detailed Product Description
| Sensor: |
CMOS |
Type: |
Mini Spy Camera |
| Wide View Angle: |
90deg |
Power Supply: |
3.6-24Vwide Voltage |
| Size: |
15.5X15.5X20mm |
Weight: |
5g |

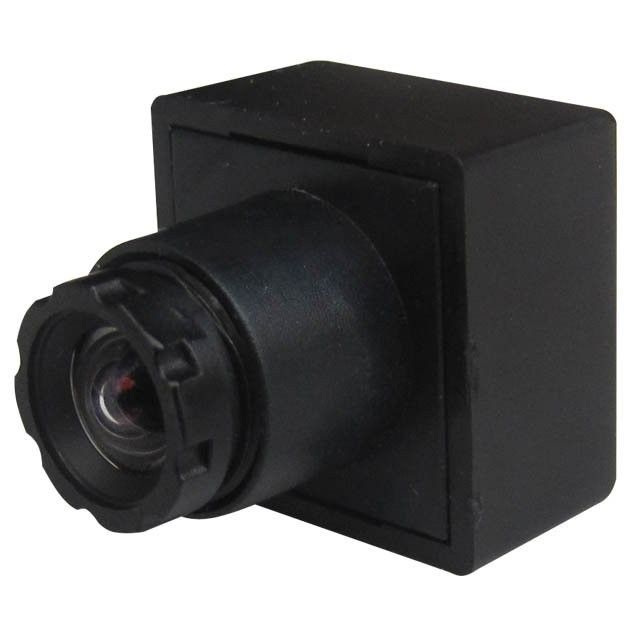

High Resolution Security Mini Spy Camera Plug and Play 360deg SPY 1/4 CMOS
Description :
* 90 degree wide view angle,3.6-24v wide voltage
* Small Size: easy to install into narrow room and slim tube, etc.;

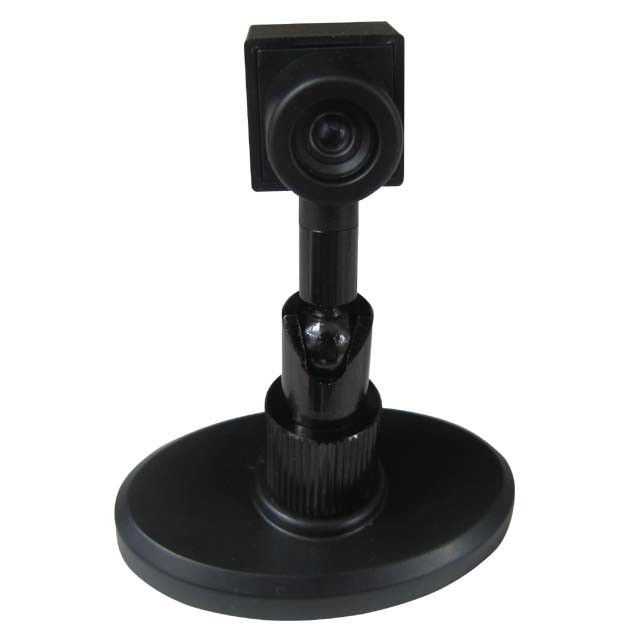

* Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
* Camera stand can rotate 360 degrees, all-round monitoring
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Low Illumination, Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video.
Application:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.
Specifications:
| PICK UP ELEMENT |
Single chip 1/4CMOS |
| SYSTEM |
NTSC |
PAL |
| NUMBER OF PIXEL |
NTSC:720(H)×480(V) |
PAL:720(H)×576(V) |
| SENSOR DIMENSION |
3.584mm(H)×2.688mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 480TV Lines |
| SENSITIVITY |
0.05Lux/F1.2 |
| LENS & VIEW ANGLE |
F1.2 / 90° |
| S/N RATIO |
48dB |
| AUTO GAIN CONTROL |
OUT |
| WHITE BALANCE CONTROL |
OUT |
| BACK LIGHT COMPENSATION |
OUT |
| VIDEO OUT |
1.0V p-p/75ohm |
| WEIGHT |
5G |
| SIZE(LXWXH) |
15.5X15.5X20mm |
| WORK CURRENT |
DC12V: 45mA DC5V: 95mA |
| POWER REQUIREMENT |
DC:3.6V-24V |
| OPERATING TEMPERATURE |
- 10° C ~ +50°C ,less than 90% RH |
| Connection |
PIN1=>:Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT |

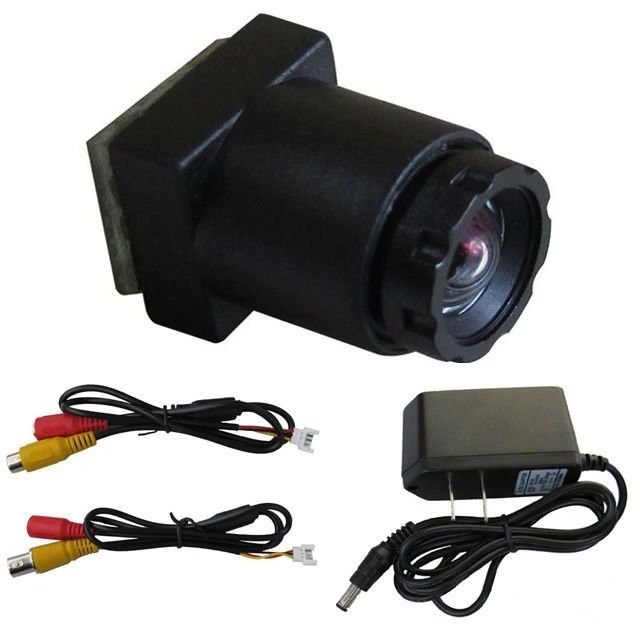

Package contents :
* mini camerax1
* Stand x 1
* RCA or BNC Cable x1
* AC Adapterx1
