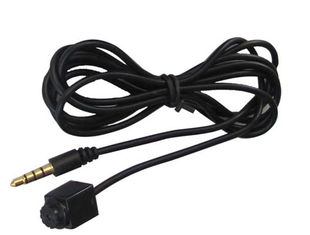

1/3 CMOS Mini Spy Camera With Audio And Video Recorder , ir spy cam

: Large Image : 1/3 CMOS Mini Spy Camera With Audio And Video Recorder , ir spy cam

Product Details:

Place of Origin:	China
Model Number:	SPYDAE900MC

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Camera Sensor:	Single Chip 1/3 CMOS	HORIZONTAL RESOLUTIONRANGE:	520TVL
SENSITIVITY:	0.008Lux/F1.2	LENS & VIEW ANGLE:	0.5mm F2.0 /55
TV System:	NTSC, PAL	WEIGHT:	2G

1/3 CMOS Mini Spy Camera With Audio And Video Recorder , ir spy cam

Features & functions:
It's an ultra small high definition CCTV camera with excellent night vision.
Size is 11.5X11.5X17mm only, Weight is 2g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Application:

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Package:

1pcs Mini camera

SPECIFICATIONS:

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC 656 H 492 V	PAL 786 H 576 V
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm H 3.55mm V
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2 1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 /55
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT 1/60 S TO 1/100000 S	OUT 1/50 S TO 1/100000 S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
SIZE (L x W x H)	11.5mm x 11.5mmM x 17mm
WEIGHT	2g
WORK CURRENT	72mA
POWER REQUIREMENT	DC 3.3V-6V
OPERATING TEMPERATURE	- 10 C ~ +50 C less than 90% RH
Connection	PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT
