Detailed Product Description
| Usage: |
Plug And Play |
Wide View Angle: |
90 |
| Antenna: |
2.4GHz Built-in Antenna |
Horizontal Resolution: |
520 TV Lines |
| Minimum Illumination: |
0.008Lux/F1.2 |
Weight: |
50g |
Usage:
Plug and play !
Just plug it to USB port of AC adapter,computer,camera starts to work. And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.

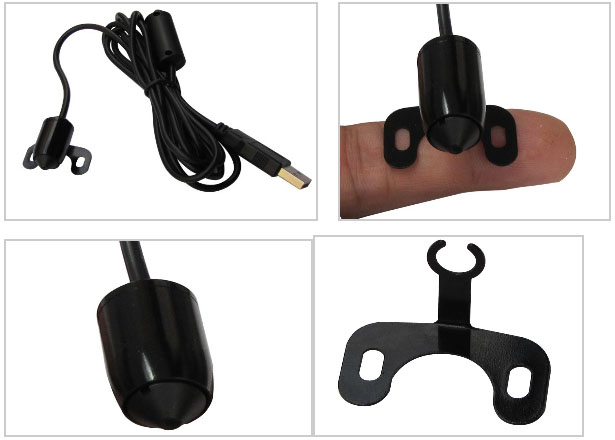

2.4GHz Mini Camera Main Features:
1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play.
3. High resolution(786X576pix;520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 degree);
6. Strong output power brings long transmission range up to 150m(L.O.S.)
7. Convenient power supply and continuous working.
8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well.
Specification:
| Frequency | 2.4G | 2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4) | Working channel:1 of 8 |
| 2.3G | 2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4) |
| Audio Subcarrier Frequency | 6.0Mhz |
| Antenna | 2.4GHz built-in antenna |
| RF Output Power | 100mW |
| Transmission Range | 150 meters |
| Total Pixels | NTSC:656(H)×492(V) | PAL:786(H)×576(V) |
| Horizontal Resolution | 520TV Lines |
| Minimum Illumination | 0.008Lux/F1.2 |
| Lens & View angle | 90 ° |
| S/N Ratio | ﹥48dB |
| Size (L) | 1.8m {lens size (L x D):27mm X 15mm } |
| Net Weight(g) | 50g |
| Current | 160mA |
| Voltage | DC 5V |
| Operation Temperature | - 20°C ~ + 50°C ,Relative Humidity:85﹪ |

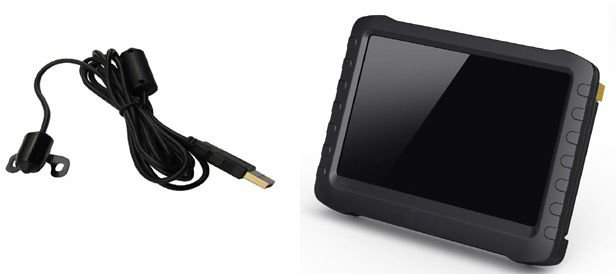

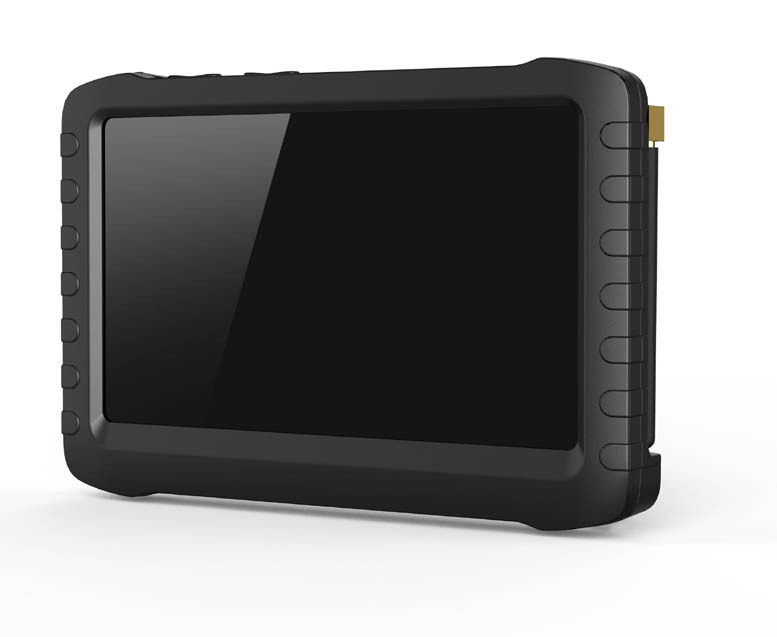

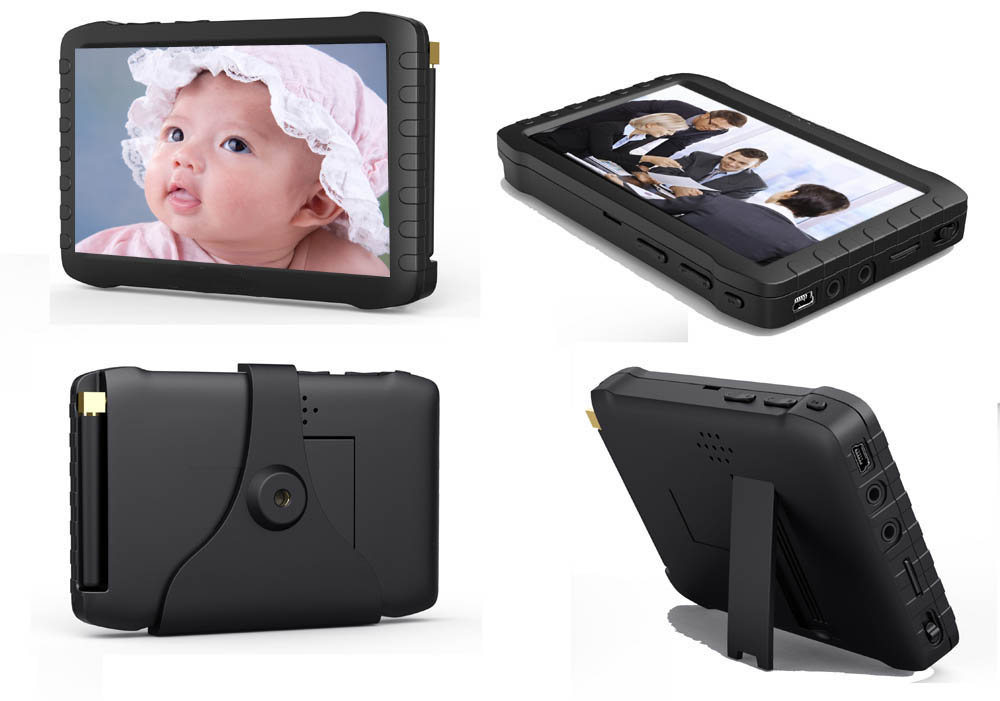

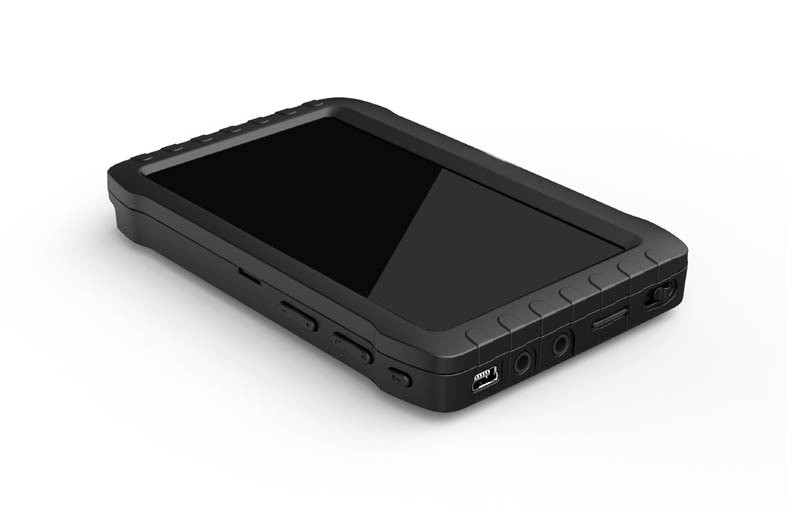

HD 2.4GHz wireless mini DVR :
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* Supports 2.4GHz & 5.8GHz wireless frequency;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It's of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
HD 2.4GHz wireless mini DVR Specifications:
| Items | Value |
| Wireless Receiving | 2.4GHz –8 channels | CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. |
| | CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz |
| | |
| | |
| | | |
| | |
| | Sensitivity | -92dB |
| | Receiving distance | 100 meters |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel |
| Luminance for LCM | 200 cd/㎡ |
| Cape clear 5-inch LCD screen | Active area | 118mm(W) X 62.8mm(H) |
| Resolution | 480 X 272 Pixel |
| Luminance for LCM | 300cd/㎡ |
| Video | Resolution | 720*576 / 640*480 |
| Video compress | MPEG-AVI 30fps |
| Play format | MPEG-AVI |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker | 1W |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours |
| 1GB photos | 15625pcs |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 |
| Language | Multiple |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA |
| Current( recording mode) | 680MA |
| Current(recording with off-screen mode) | 340MA |
| AC adapter | DC 5V 2A |
| Built-in battery | Li-battery 3200mAh |
| Standby time | Wireless record | ≥9.5 hours(off-screen); ≥5hours(on-screen) |
| Wired record | ≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included. |
| Size (L x W x H) | 131mm x 86mm x 18mm |
| Weight(g) | 205g |
Package:
1 * Wireless DVR
1 * Mini Camera
1 * Power adapter
1 * USB line
1 * Install back clip
1 * specification
