Detailed Product Description
| Usage: |
Plug And Play |
Wide View Angle: |
50deg |
| Antenna: |
5.8GHz Built-in Antenna |
Horizontal Resolution: |
520 TV Lines |
| Minimum Illumination: |
0.008Lux/F1.2 |
Weight: |
8g |

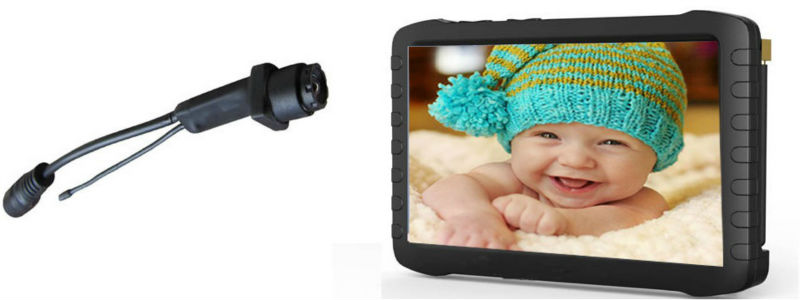

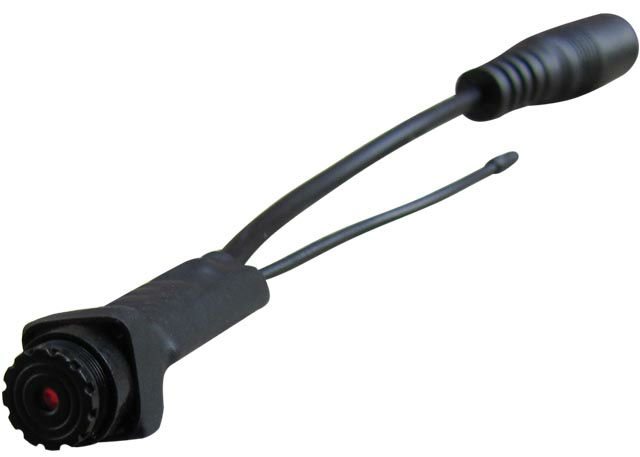

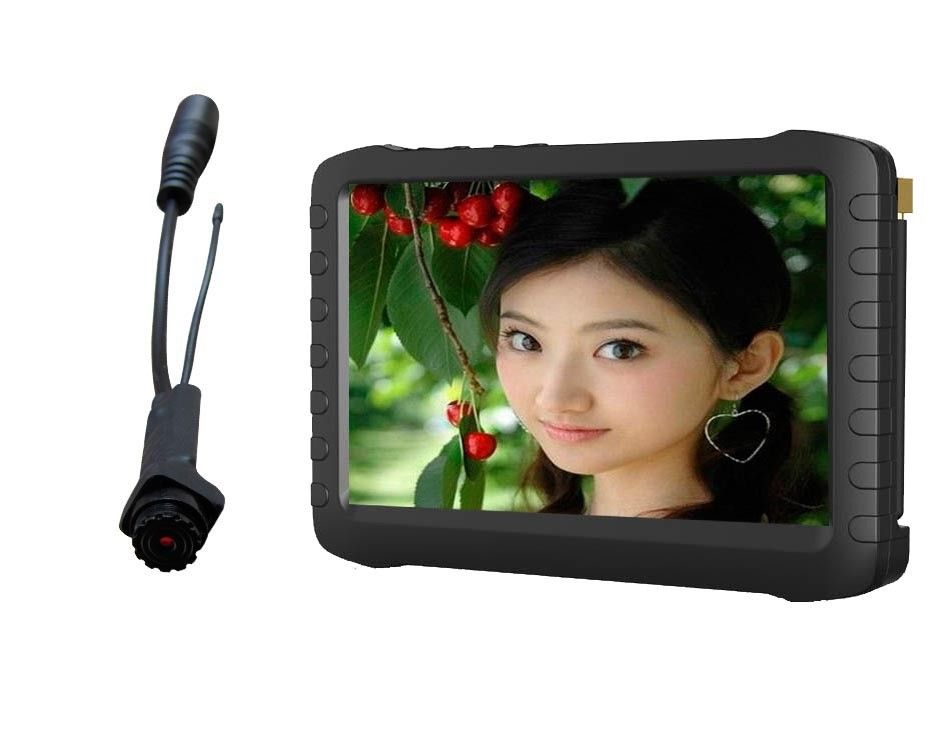

The MINISTE806B Kit adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities.Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(50deg),small size, wireless transmission, tiny weight( 8g), continuous working(AV power supply), and easy installation . It is a good helper for home monitoring and burglar.
How to use:
1. Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.
2. Then real time audio & video starts to tranmit from camera to DVR for view or recording or taking pictures.
It is very easy to use , just connect the camera to AV power supply, it starts to continuous working. Just plug & play!
Note: This camera has one working channel. Please select the model with your requested frequency;
Feature:
* No-interference 5.8G frequency, up to 24 channels for choice;
* Tiny size (smaller than finger);
* Tiny weight (only 8g);
* 0.008LUX super low illumination, which can see clearly under dim light;
* 50 degree lens!
* Low power consumption assures the long time working life;
* 25mW transmitting power, which leads 100 meters wireless transmission range.
Camera Specification:
| Working frequency | G1-within 5.8G | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz | Working Channel: 1 of 24 |
| G2-Beyond 5.8G | CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
| G3-Within 5.8G | CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz |
| Antenna | External antenna |
| RF OUTPUT POWER | 25mW |
| TRANSMISSION RANGE | 100 meters |
| SENSOR DIMENSION | NTSC:720(H) x 480(V) | PAL:720(H) x 576(V) |
| HORIZONTAL RESOLUTION | 480TV Lines |
| SENSITIVITY | 0.008Lux/F1.2 |
| LENS & VIEW ANGLE | 0.5mm F1.2 /50deg |

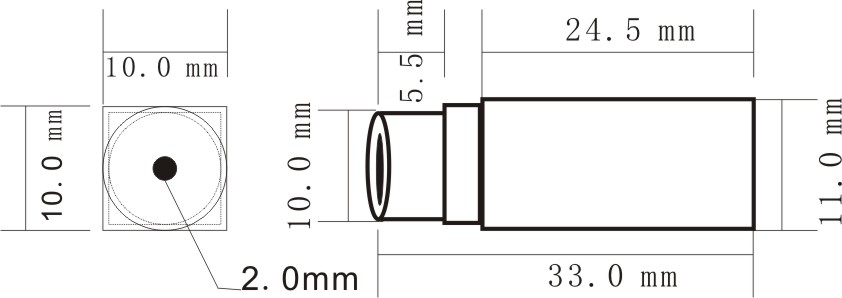

| SIZE(L x W x H) | 33.0mm x 10.0mm x 10.0mm |
| WEIGHT(g) | 8g |
| WORK CURRENT | 230mA |
| POWER REQUIREMENT | DC 4V |
| OPERATING TEMPERATURE | - 20C ~ + 50C , Relative humidity 85% |

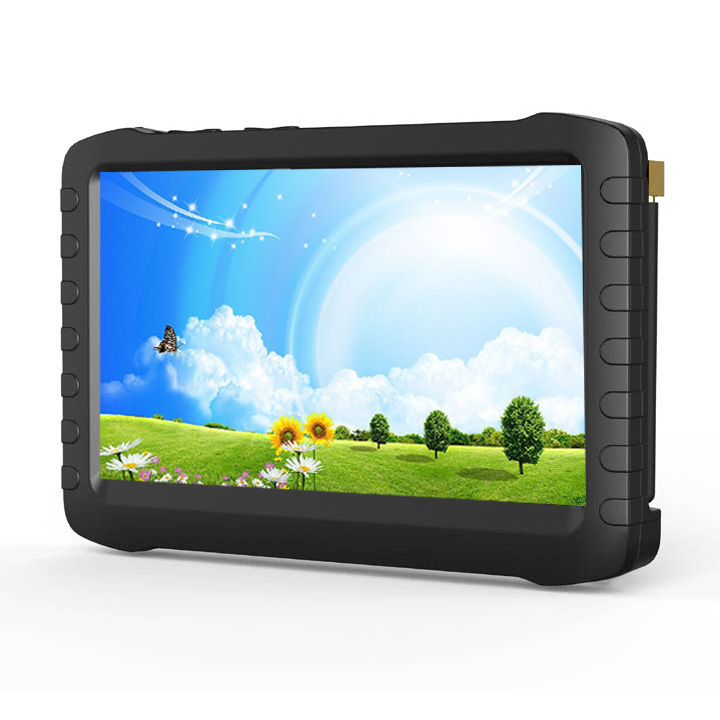

Wireless DVR Feature:
* Mini size and portable recorder with fashionable & new design;
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It's of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
Wireless DVR Receiver Specification:
| Items | Value |
| Wireless Receiving | Within 5.8G-A (8 channels) | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. |
| CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
| Within 5.8G-B (8 channels) | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. |
| CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz |
| Beyond 5.8G-C (8 channels) | CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. |
| CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz |
| | Sensitivity | -92dB |
| | Receiving distance | 100 meters |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel |
| Luminance for LCM | 200 cd/M2 |
| Cape clear 5-inch LCD screen | Active area | 118mm(W) X 62.8mm(H) |
| Resolution | 480 X 272 Pixel |
| Luminance for LCM | 300cd/M2 |
| Video | Resolution | 720*576 / 640*480 |
| Video compress | MPEG-AVI 30fps |
| Play format | MPEG-AVI |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker | 1W |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours |
| 1GB photos | 15625pcs |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 |
| Language | Multiple |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA |
| Current( recording mode) | 680MA |
| Current(recording with off-screen mode) | 340MA |
| AC adapter | DC 5V 2A |
| Built-in battery | Li-battery 3200mAh |
| Standby time | Wireless record | >=9.5 hours(off-screen);>=5hours(on-screen) |
| Wired record | >=12 hous(off-screen);>=6hours(on-screen) *LED camera not included. |
| Size (L x W x H) | 131mm x 86mm x 18mm |
| Weight(g) | 205g |
Package:
* DVR * 1pcs
* Camera * 1pcs
* User Manual * 1pcs
* Stereo earphone * 1pcs
* USB Cable * 1pcs
* AC Adapter * 1pcs
* Back holder for installation * 1pcs
