Detailed Product Description
| TRANSMISSION RANGE: |
100M |
Wireless Receiving: |
5.8GHz |
| External SD Card: |
TF Card 1GB-32GB(optional) |
Size (L X W X H): |
131mm X 86mm X 18mm |
| Weight: |
205G |
|
|

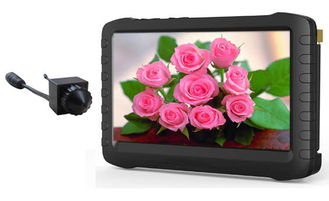

This kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G frequency.It transmits 100 meters range. The size of camera is smaller than finger, which is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures.Motion detect & loop recording are available for more convenience use.Just connect the camera to AV power supply ,it starts to continuous working.Just plug & play! It is a good helper for safe & security.
Main Features
1. No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;
2. 16 channels available, users can freely choose one when they use it;
3. 0.008LUX super low illumination, which can see clearly under dim light;
5. 90° broad view angle;
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range;
8. High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
9. Motion Detection Available : Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
10. No need any cable installation, just plug and play;
11. Support SD Card(up to 32G) recording for any evidence needed;
How to use:
Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.
Then real time audio & video begin to transmit from camera to DVR for view or recording or taking pictures.
SPECIFICATION of camera:
| Working frequency | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CCH7: 5745MHz; CH8: 5725MHz
CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz.
CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
| Audio Subcarrirer Level | -28dBc |
| RF OUTPUT POWER | 25mW |
| TRANSMISSION RANGE | 100 meters |
| Audio Subcarrirer Freq.ncy | 6.5MHz |
| SENSOR DIMENSION | NTSC: 720(H) x 480(V) | PAL: 720(H) x 576(V) |
| SENSITIVITY | 0.008Lux/F1.2 |
| LENS & VIEW ANGLE | 0.5mm F1.2 / 90 deg |

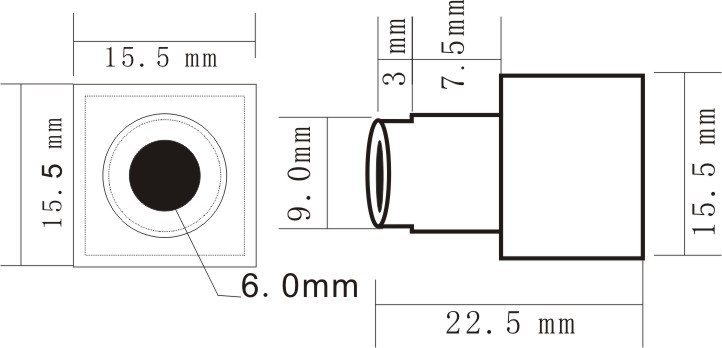

| SIZE(L x W x H) | 22.5 x 15.5 x 15.5 MM |
| WEIGHT(g) | 10g |
| WORK CURRENT | 230mA |
| POWER REQUIREMENT | DC 4V |
| OPERATING TEMPERATURE | - 20C ~ + 50C ,Relative humidity 85% |
5-inch HD mini DVR:
| Items | Value |
| Wireless Receiving | Wireless freq. (1 of 3 groups) | |
| Within 5.8G-A 8 channels | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
| Beyond 5.8G-B 8 channels | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz |
| Within 5.8G-C 8 channels | CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz |
| Sensitivity | -88dB |
| Receiving distance | 100 meters |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel |
| Luminance for LCM | 200 cd/㎡ |
| Cape clear 5-inch LCD screen | Active area | 118mm(W) X 62.8mm(H) |
| Resolution | 480 X 272 Pixel |
| Luminance for LCM | 300cd/㎡ |
| Video | Resolution | 720*576 / 640*480 |
| Video compress | MPEG-AVI 30fps |
| Play format | MPEG-AVI |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker | 1W |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours |
| 1GB photos | 15625pcs |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 |
| Language | Multiple |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA |
| Current( recording mode) | 680MA |
| Current(recording with off-screen mode) | 340MA |
| AC adapter | DC 5V 2A |
| Built-in battery | Li-battery 3200Mah |
| Standby time | Wireless record | >=9.5 hours(off-screen); >=5hours(on-screen) |
| Wired record | >=12 hours(off-screen); >=6hours(on-screen)
*LED camera not included. |
| Size (L x W x H) | 131mm x 86mm x 18mm |
| Weight(g) | 205G |
MODEL NO. & FREQUENCY:
| wireless camera | 5.8G wireless DVR |
| Channel Switcher | CH | Frequency | Freq. group | CH |
| 1# ON | 2# ON | 3# ON | 4# ON | CH1 | 5865MHz | 5.8G-A | CH1 |
| 1# ON | 2# OFF | 3# ON | 4# ON | CH2 | 5845MHz | 5.8G-A | CH2 |
| 1# ON | 2# ON | 3# OFF | 4# ON | CH3 | 5825MHz | 5.8G-A | CH3 |
| 1# ON | 2# OFF | 3# OFF | 4# ON | CH4 | 5805MHz | 5.8G-A | CH4 |
| 1# ON | 2# ON | 3# ON | 4# OFF | CH5 | 5785MHz | 5.8G-A | CH5 |
| 1# ON | 2# OFF | 3# ON | 4# OFF | CH6 | 5765MHz | 5.8G-A | CH6 |
| 1# ON | 2# ON | 3# OFF | 4# OFF | CH7 | 5745MHz | 5.8G-A | CH7 |
| 1# ON | 2# OFF | 3# OFF | 4# OFF | CH8 | 5725MHz | 5.8G-A | CH8 |
| 1# OFF | 2# ON | 3# ON | 4# ON | CH9 | 5705MHz | 5.8G-B | CH1 |
| 1# OFF | 2# OFF | 3# ON | 4# ON | CH10 | 5685MHz | 5.8G-B | CH2 |
| 1# OFF | 2# ON | 3# OFF | 4# ON | CH11 | 5665MHz | 5.8G-B | CH3 |
| 1# OFF | 2# OFF | 3# OFF | 4# ON | CH12 | 5645MHz | 5.8G-B | CH4 |
| 1# OFF | 2# ON | 3# ON | 4# OFF | CH13 | 5885MHz | 5.8G-B | CH5 |
| 1# OFF | 2# OFF | 3# ON | 4# OFF | CH14 | 5905MHz | 5.8G-B | CH6 |
| 1# OFF | 2# ON | 3# OFF | 4# OFF | CH15 | 5925MHz | 5.8G-B | CH7 |
| 1# OFF | 2# OFF | 3# OFF | 4# OFF | CH16 | 5945MHz | 5.8G-B | CH8 |
