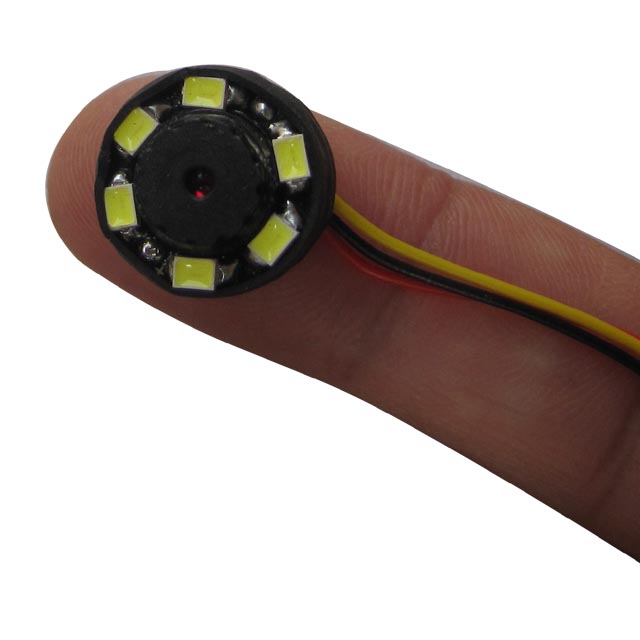

3G Smart CCTV Camera Mini Spy Audio Camera 0.0Lux 1/3 CMOS 6 LEDs

Large Image : 3G Smart CCTV Camera Mini Spy Audio Camera 0.0Lux 1/3 CMOS 6 LEDs

Product Details:

Place of Origin:	China
Model Number:	SPY6520LED

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	box
Delivery Time:	3days
Payment Terms:	T/T,PAYPAL
Supply Ability:	500pcs / month

Detailed Product Description

Sensitivity:	0.00Lux/5M (LED OPEN)	Lens:	0.5mm F2.0 / 55 Degree
Sensor:	Single Chip 1/3 CMOS	Horizontal Resolution:	520TVL
Size:	14.5 X 14.5 X 15.5mm	Weight:	3G

Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

Features:
It's a ultra small high definition CCTV camera with excellent night vision.
Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install.
Minimum illumination is 0.0lux, which can view clearly in complete darkness.
Full TV system. Applicable worldwide.

Audio 0.0Lux 520TVL 1/3 CMOS 6 LEDs Mini CCTV Camera

Specification :

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:656(H)×492(V)	PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2 : 1 Interlace
SENSITIVITY	0.00Lux/5M (LED OPEN)
LENS & VIEW ANGLE	0.5mm F2.0 / 55 °
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT (1/60 S TO 1/100000 S)	OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
SIZE (L x D)	14.5 x 14.5 x 15.5mm
WEIGHT	3g
WORK CURRENT	LED on 200mA
POWER REQUIREMENT	DC 5.0V
OPERATING TEMPERATURE	- 10° C ~ +50°C , less than 90% RH

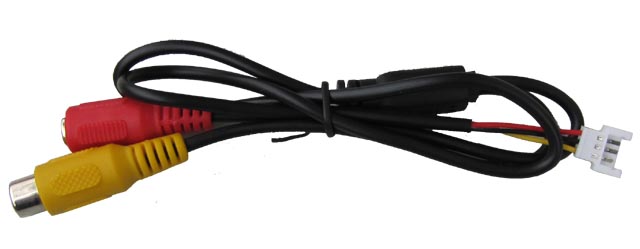

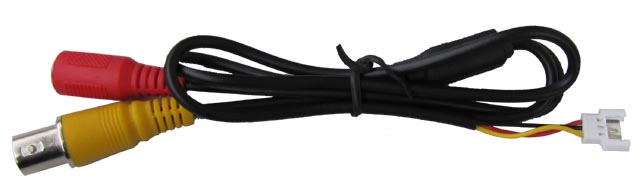

Connection	PIN1à Red DC5V PIN2à Black GND PIN3à Yellow VIDEO OUT
