Detailed Product Description
| Image Sensor: |
1/2.8-type Exmor CMOS |
Signal System - HD: |
1080p |
| Minimum Illumination: |
High Sensitivity Mode: 0.5 Lx (F1.6, 50 IRE) Normal Mode: 1.7 Lx (F1.6, 50 IRE) |
Optical Zoom: |
20x |
| Camera Control Ns: |
RS-232C/RS-422 |
Color: |
Black Or White |

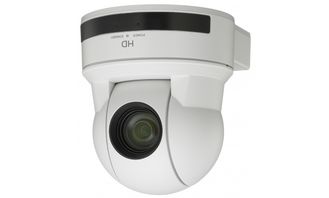

Smart and Flexible 360 Video Conference Camera SONY EVI-H100S With HD-SDI Interface
Description:
The EVIH100S is one of the newest additions to the EVI PTZ HD camera lineup. Featuring full 1080/20 HD resolution with a 1/2.8-type Exmor CMOS sensor, this dynamic new camera is a smart-looking addition to Sony's feature-rich EVI HD camera lineup. Ceiling mountable and also available in white, the -camera offers a multitude of options in remote-monitoring, videoconferencing, distance learning and house of worship applications.
Advantage & Application:
With sleek, smart looks and flexible installation options, this Full HD PTZ (pan/tilt/zoom) camera is ideal for a wide range of virtual meeting, distance learning and remote monitoring applications.
The sensitive Exmor CMOS image sensor brings video conferences to life with crisply-detailed, Full HD picture quality – even in dimly-lit meeting rooms. Powerful 20x optical zoom delivers frame-filling close-ups. Fast, quiet PTZ operation ensures you never miss that crucial moment.
With HD-SDI video output.
Features:
* The new EVI-H100S is ceiling mountable, allowing for a multitiude of additional options in a variety of remote monitoring applications
* Offering full 1080/20 HD resolution with 20X optical zoom makes the EVI-H100S ideal for a variety of applications
* The EVIH100S features 1/2.8-type Exmor CMOS sensor, which provides crisp, clear HD images
* A key feature of the EVI-H100S is the RS-232C/RS-422 interface protocol. allowing for easy connectivity to a variety of peripheral products.

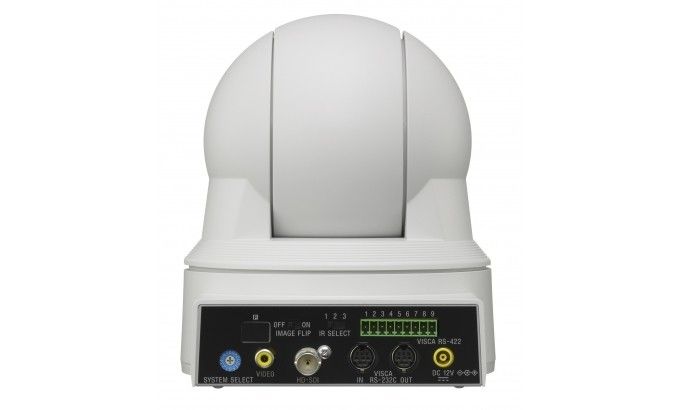

* HD-SDI video output via a BNC connector

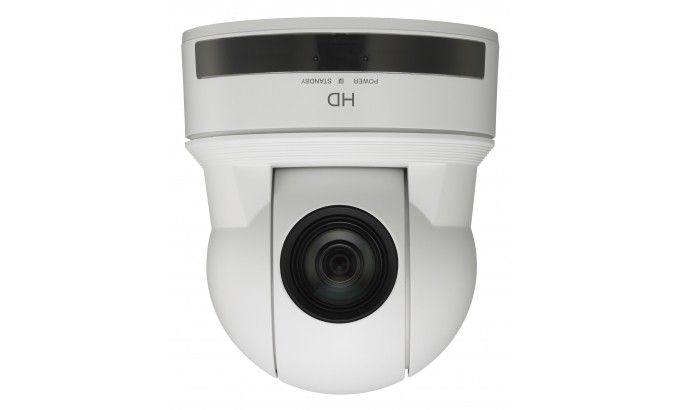

* Also available in a white version: EVI-H100S/W
* Full HD image quality with 30fps frame rate
* Get closer with powerful 20x optical zoom
* Fast, quiet PTZ operation
* Desktop or ceiling mounting
* Versatile connectivity options
* 100 presets
* HD-SDI interface
SPECIFICATIONS:
| Image sensor |
1/2.8-type Exmor CMOS |
| Signal system - HD |
1080p/29.97, 1080p/25, 1080i/59.94 (frame out 1080PsF29.97), 1080i/50 (frame out 1080PsF25), 720p/59.94, 720p/50, 720p/29.97, 720p/25 |
| Signal system - SD |
NTSC/PAL |
| Lens - Focal length |
f=4.7 mm (wide) to 94.0 mm (tele)
F1.6 to F3.5 |
| Lens - Optical zoom |
20x |
| Lens - Digital zoom |
12x |
| Min. object distance |
10 mm (wide) - 800 mm (tele)
*Default: 290 mm |
| Horizontal viewing angle |
55.4 degres (wide) to 2.9 degrees (tele) (1080 mode) |
| Focus systems |
Auto, One-push AF, Manual, Infinity |
| Min. illumination |
High sensitivity mode: 0.5 lx (F1.6, 50 IRE)
Normal mode: 1.7 lx (F1.6, 50 IRE) |
| Shutter speed |
1 to 1/10,000 s |
| Gain |
Auto/Manual/Max. AE Gain Limit (-3 to 28 dB, 2 dB steps) |
| White balance |
Auto, Indoor, Outdoor, One-push, Manual |
| Wide-D |
Yes |
| Exposure control |
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE |
| Auto ICR |
Yes |
| S/N ratio |
More than 50 dB |
| Pan/Tilt - Angle - Pan |
±170° |
| Pan/Tilt - Angle - Tilt |
+90°/-20° |
| Pan/Tilt - Max. speed - Pan |
100°/sec |
| Pan/Tilt - Max. speed - Tilt |
90°/sec |
| Preset positions |
6 |
| Video output - HD |
HD-SDI |
| Video output - SD |
VBS |
| Camera control - Interface |
RS-232C/RS-422 |
| Camera control - Protocol |
VISCA |
| Power requirements |
DC 12 V |
| Power consumption |
12 W |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Storage temperature |
-20°C to +60°C (-4°F to +140°F) |
| Mass |
1,550 g (3 lb 7 oz) |
| Dimensions (W x H x D) |
145 x 164 x 164 mm (5 3/4 x 6 1/2 x 6 1/2 inches) |
| Body colour |
Black, White |
| Supplied accessories |
AC adaptor
AC power cable
IR remote commander unit
Ceiling bracket
Operating instructions
RS-422 connector plug |
