Detailed Product Description
| Image Sensor: |
1/3-type CMOS |
Minimum Illumination: |
15lx (F1.8) |
| Optical Zoom: |
10x |
Focusing System: |
Auto/Manual |
| Pan/Tilt Angle: |
Pan: ±100°, Tilt: ±25° |
Pan/Tilt Speed (Max.): |
Pan: 300°/sec, Tilt: 125°/sec |
| Minimum Object Distance: |
100mm (wide) |
|
|

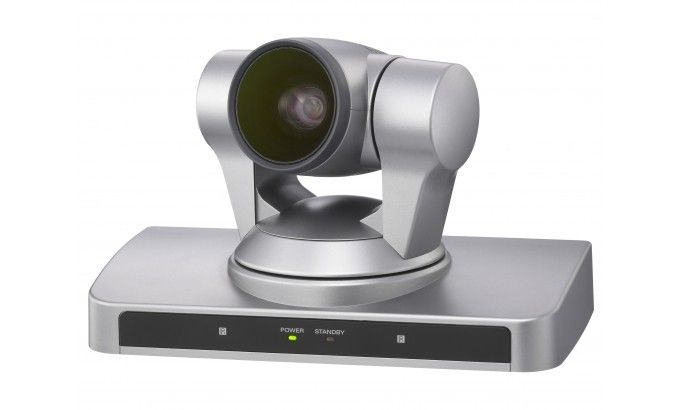

Sony EVI-HD3V Hd Video Conference Camera PTZ WEBCAM SKYPE 1/3 - type CMOS
Advantage:
The EVI-HD3V provides superb affordable HD quality at up to 720/60p. The world renowned Sony EVI high quality PTZ mechanism as seen in the EVI-HD1 comes as standard. The EVI-HD3V allows optimised performance where bandwidth or infrastructure is limited.
It is designed to be used in combination with a variety of video conferencing codecs and other broadcasting/AV systems to produce high quality HD images. A number of video output formats are supported allowing flexibility subject to existing HD infrastructure in situ.
Technical Features:
* Image sensor: 1/3-type CMOS
* Signal system: 720p/59.94 720p/50 720p/29.97 720p/25 640 x 480p/59.94 (VGA)
* Lens: Lens 10x optical zoom 40x with digital zoom f=3.4 to 33.9 mm F1.8 to F2.1
* Angle of view (H): 8° (tele) to 70° (wide) at HD signal output
* Minimum working distance: 100 mm (wide)
* Minimum illumination: 15 lx (typical) (F1.8 50 IRE)
* S/N ratio: 50 dB
* Shutter Speed: 1/60 to 1/10 000 sec. (59.94 Hz system) 1/50 to 1/10 000 sec. (50 Hz system)
* White balance: Auto / Indoor / Outdoor / One-push auto / Manual
* Gain: Auto/Manual (-3 to 18 dB)
* Exposure control: Auto / Manual / Priority AE / Exposure compensation / Bright
* Pan / Tilt: ±100° (Max. speed 300°/sec.) Tilt: ±25° (Max. speed 125°/sec.)
* Focus system: Auto / Manual
* Position preset: 6 positions
* Video output: DVI-I (Digital and Analog)
* Control terminal: RS-232C (8-pin mini DIN) control (VISCA)
* Storage temperature: -20 to 60 °C (-4 to 140 °F)
* Operating temperature: 0 °C to 40 °C (32 to 104 °F )
* Power requirements: 12 V DC (10.8 to 13 V DC)
* Power consumption: Max. 26.4 W (at DC 12 V)
* Dimensions (W x H x D): 250 x 152 x 132 mm (9 7/8 x 6 x 5 3/8 inches) (without protrusions)
* Mass:Approx. 1.5kg (3 lb 5 oz)
Description:
The EVI-HD3V brings the best in Sonys strong heritage on PTZ mechanics together with superb HD picture quality at up to 720p/60. The EVI-HD3V provides an optimised HD camera option for application environments where the desire is for a mid-range solution or where infrastructure limitations exist.
It is ideally suited to videoconferencing broadcasting distance learning and other audio/visual applications.
Application:
Combining convenient features such as auto focus / auto exposure, 6 presets and external / remote control, the EVI-HD3V is ideal for applications such as videoconferencing, distance learning, houses of worship, and corporate training.
SPECIFICATIONS:
| Image Sensor |
1/3-type CMOS |
| Signal System |
720p/59.94, 720p/50, 720p/29.97,
720p/25, 640 x 480p/59.94 |
| Minimum Illumination (50IRE) |
15lx (F1.8) |
| S/N Ratio |
50 dB |
| Gain |
Auto/Manual (-3 dB to +18 dB) |
| Shutter Speed |
1/60 to 1/10,000 sec (59.94Hz system),
1/50 to 1/10,000 sec (50HZ system) |
| Exposure Control |
Auto, Manual, Priority AE, Exposure compensation, Blight |
| White Balance |
Auto, Indoor, Outdoor, One-push auto, Manual |
| Optical Zoom |
10x |
| Digital Zoom |
4x |
| Focusing System |
Auto/Manual |
| Horizontal Viewing Angle |
70 degrees (wide) to 8 degrees (tele) |
| Focal Length |
F1.8 to F2.1
f=-3.4mm (wide) to 33.9mm (tele) |
| Minimum Object Distance |
100mm (wide) |
| Pan/Tilt Angle |
Pan: ±100°, Tilt: ±25° |
| Pan/Tilt Speed (Max.) |
Pan: 300°/sec, Tilt: 125°/sec |
| Preset Position |
6 |
| Hd Video Output |
DVI-I (Digital and Analog) |
| Camera Control Interface |
RS-232C (8-pin mini DIN) |
| Sync. System |
INT |
| Power Requirements |
DC 12V (10.8 to 13.0V DC) |
| Power Consumption |
max 26.4W (at DC 12V) |
| Operating Temperature |
32°F to 104°F
0°C to 40°C |
| Storage Temperature |
-4°F to +140°F
'-20°C to +60°C |
| Dimensions (W x H x D) *[1] |
9 7/8 x 6 x 5 3/8 inches
250 x152 x135mm |
| Mass |
3 lb 5 oz
1.5kg |
| Body Color |
Light gray |
| Wide Conversion Lens Attachable |
No |
| Mountable Angle |
±15° |
| Ceiling Mount |
No |
| Supplied Accessories |
Operating instruction (1)
IR remote commander unit (1)
AC power cable (1)
AC adaptor (1) |
