Detailed Product Description
| Imager: |
1/4 Type CMOS X3 |
Effective Pixels: |
Approx. 1.04 Mega Pixels |
| Lens: |
20x Optical Zoom |
Minimum Illumination: |
6 Lx (50 IRE, F1.6, 24dB) |
| Weight: |
4.5 Kg (9 Lb 15 Oz.) |
Preset Positions: |
16 Positions |

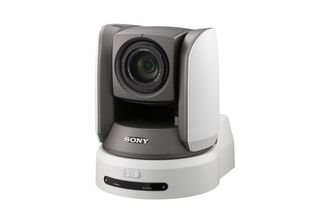

High-Definition PTZ Video Conference Camera SONY BRC-Z700 , 3 CMOS HD Industrial Camera
Description:
HD 1/4 3 CMOSs camera with pan/tilt/zoom mechanism, wrapped in a sleek, compact body. Like its other family members, the BRC-300 and the BRC-H700, The BRC-Z700 can also be ceiling mounted. The BRC-Z700 supports simultaneous outputs of analog HD Y/Pb/Pr output as well as Y/C and composite in Standard Definition (SD). It is also equipped with a slot for optional cards to adapt to diverse needs. By inserting the optional BRBK-HSD1 card into this slot, High Definition SDI (HD-SDI) as well as down converted SD SDI output is possible by proper selection (not simultaneously). For HD optical multiplex remote operation, the BRC-Z700 requires a BRBK-MF1 board. Boards used with the existing BRC-H700 camera are NOT compatible with the BRC-Z700. When used with the BRU-H700 HD optical multiplex unit, the BRC-Z700 in combination with the new BRBK-MF1 board, can transmit uncompressed digital data without deterioration through the CCFC-M100HG HD optical fiber cable. The same RM-BR300 remote controller currently used with the BRC-300 and BRC-H700 cameras can also be used with the BRC-Z700. The RM-BR300 can simultaneously control up to 7 cameras from a distance.
Highlights:
* All-in-one stylish robotic camera with a robust body
* 1/4- type HD 3-ClearVid CMOS
* Carl Zeiss Vario-Sonnar T*? Lens
* Built-in Auto Focus 80x zoom (20x Optical, 4x Digital)
* Desktop and ceiling-mount installation capable
* Both HD and SD outputs as standard
* External sync input
* 16 position presets
* RS-232C/RS-422 serial control (VISCA protocol)
* Daisy chain capability (up to 7 units)
* Silent and smooth Pan/Tilt mechanism
* Optical image stabilization function to reduce vibration
* Wide system expandability with interface card slot for optional cards
* Multi-function IR Remote Commander? unit
* OSD (On-Screen Display)
Application:
Bank, hospital, security, meeting rooms, remote teaching .
Specification:
| Camera Performance Specifications |
Detail: |
| Tilt Angle |
-30 to +90 degrees |
| Tilt Speed |
0.22 to 60 degrees/sec |
| General Specifications |
Detail: |
| Analog Output |
RGB / Y/Pb/P(D-sub 15-pin), Y/C (4 pin Mini DIN), VBS (BNC) |
| Angle of View (H) |
1.8 degrees (tele end ) to 55.2 degrees (wide end) |
| Backlight Compensation |
On/Off |
| Built-In Video Output |
D-sub 15 pin: HD video out
Y/Pb/Pr or RGB, HD, VD or SYNC
Mini DIN 4 pin: Y/C
BNC: Composite |
| CCD Effective Pixels |
Approx. 1.04 mega pixels |
| Camera Control Interface |
RS-232C (VISCA protocol)/RS-422 (VISCA protocol) |
| Dimensions (W x H x D) |
198 x 247 x 238 mm (7 7/8 x 9 3/4 x 9 3/8 inches) |
| Effective Pixels |
Approx. 1.04 mega pixels |
| Focal Length |
f=3.9 to 78.0mm (F1.6 to F2.8) |
| Focus System |
Auto/Manual |
| Gain |
Auto/Manual (0 to 24 dB and Hyper Gain) |
| Image Device |
1/4 type CMOS x3 |
| Image Flip |
On/Off |
| Imager |
CMOS |
| Lens |
20x optical zoom
80x with digital zoom
Carl Zeiss Vario-Sonnar T* |
| Minimum Illumination |
6 lx (50 IRE, F1.6, 24dB) |
| Minimum Object Distance |
800mm (tele end) 500mm (wide end, lmiter on) 10mm (wide, limier off ) |
| ND Filter |
- |
| Operating Temperature |
0 degrees to 40°C (32°F to 104°F) |
| Optical Image Stabilizer |
On / Off |
| Pan Angle |
-170 to + 170 degrees |
| Pan Speed |
0.22 to 60 degrees/sec |
| Power Consumption |
Max. 28.8W (Without optional card) |
| Power Requirements |
DC 10.8 to 13.2 V |
| Preset Positions |
16 positions |
| S/N Ratio |
50 dB |
| Shutter Speed |
1/60 to 1/10000(59.94i) 1/50 to 1/10000(50i) |
| Signal System |
1080/59.94i, NTSC or
1080/50i, PAL (switchable) |
| Storage Temperature |
-20 degrees to 60°C (-4°F to 104°F) |
| Synchronization |
Internal/External |
| Video Output |
(With an optional card)
BRBK-HSD1: HD-SDI,SD-SDI
|
| Weight |
4.5 kg (9 lb 15 oz.) |
| White Balance |
Auto1
Auto2
Indoor
Outdoor
One-push WB
Manual |
