Detailed Product Description
| Image Sensor: |
1/3-type CMOS |
Minimum Illumination: |
15lx (F1.8) |
| Optical Zoom: |
10x |
Focusing System: |
Auto/Manual |
| Pan/Tilt Angle: |
Pan: ±100°, Tilt: ±25° |
Pan/Tilt Speed (Max.): |
Pan: 300°/sec, Tilt: 125°/sec |
| Minimum Object Distance: |
100mm (wide) |
|
|

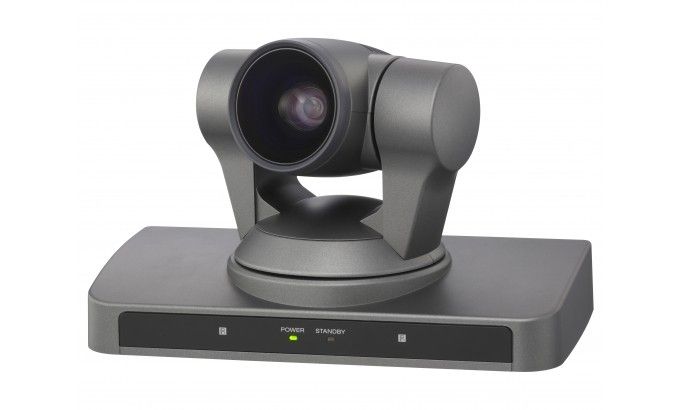

1080 / 60P Pan Tilt Zoom Camera SONY EVI-HD7V Horizontal Viewing Angle
Description:
Sony the worlds leading robotic camera manufacturer has strengthened its leadership position in High Definition by combining strong heritage on PTZ technology with the release of the first Full HD 1080/60p camera. The EVI-HD7V joins the ever popular EVI range of products. This unique camera offers a High Definition migration platform by supporting multi-HD formats allowing the user to select desired video output from VGA 720p through to Full HD. The video conference market broadcast and other A/V markets are continuing to embrace High Definition and the Sony EVI-HD7V supports this transition and moves the benchmark yet again with outstanding picture quality in Full HD.
Advantage:
Experience exceptional Full High Definition picture quality at up to 1080/60p with the class leading all-in-one Pan/Tilt Zoom (PTZ) EVI-HD7V Colour Video Camera.
The EVI-HD7V Full HD colour video camera sets a new benchmark in high definition picture quality. It is designed to be used in combination with a variety of video conferencing codecs and other broadcasting/AV systems to produce exceptional HD images. The multiple video output format support provides a wealth of options to match existing HD infrastructure in situ, whilst adding a future-proofing element to enable 1080/60p Full HD when ready, so even if wider systems do not support Full HD today, the EVI-HD7V provides the migration support needed for the future.
With its wide-angle field of view, built in 10x optical zoom lens, 16:9 aspect ratio, high speed.
Features:
* The EVI-HD7V employs a 1/3-type HD CMOS delivering intricately detailed and vivid images, transforming the video experience.
* The EVI-HD7V provides full High Definition at up to 1080/60p, the first in the Sony EVI range to support this format. Depending on your application and infrastructure possibilities the EVI-HD7V has the flexibility, providing 10 selectable HD video output options including both interlaced and progressive scan output in 1080 mode. The EVI-HD7V can also support VGA mode for added migration support.
* Superb Picture Quality
* Multi-Format Video Outputs including Full HD
* High Quality Image Transmission
* Wide-range, Quiet and Quick Pan/Tilt Mechanism
* 10x Optical (40x with Digital Zoom)
* Wide Angle of View (70 degrees)
* RS-232C Remote control (VISCA protocol)
* Six-Position Presets
* Customisable Settings via On-screen Menu using IR Remote Commander Unit
Application:
Combining convenient features such as auto focus / auto exposure, 6 presets and external / remote control, the EVI-HD7V is ideal for applications such as videoconferencing, distance learning, houses of worship, and corporate training.
SPECIFICATIONS:
| Image Sensor |
1/3-type CMOS |
| Signal System |
1080p/59.94, 1080p/50, 1080i/59.94, 1080i/50, 1080p/29.97, 1080p/25, 720p/59.94, 720p/50, 720p/29.97, 720p/25, 640 x 480p/59.94 |
| Minimum Illumination (50IRE) |
15lx (F1.8) |
| S/N Ratio |
50 dB |
| Gain |
Auto/Manual (-3 dB to +18 dB) |
| Shutter Speed |
1/60 sec to 1/10,000 sec (59.94 Hz system)
1/50 sec to 1/10,000 sec (50 HZ system) |
| Exposure Control |
Auto, Manual, Priority AE, Exposure compensation, Blight |
| White Balance |
Auto, Indoor, Outdoor, One-push auto, Manual |
| Optifal Zoom |
10x |
| Digital Zoom |
4x |
| Focusing System |
Auto/Manual |
| Horizontal Viewing Angle |
70 degrees (wide) to 8 degrees (tele) |
| Focal Length |
F1.8 to F2.1
f = -3.4 mm (wide) to 33.9 mm (tele) |
| Minimum Object Distance |
100 mm (wide) |
| Pan/Tilt Angle |
Pan: ±100°, Tilt: ±25° |
| Pan/Tilt Speed (Max.) |
Pan: 300°/sec, Tilt: 125°/sec |
| Preset Position |
6 |
| Auto ICR |
No |
| Wide-D |
No |
| Image Stabilization |
No |
| Image Flip |
No |
| Auto Power Off |
No |
| Night Power Off |
No |
| Hd Video Output |
DVI-I (Digital and Analog) |
| Camera Control Interface |
RS-232C (Mini DIN 8-pin) |
| Sync. System |
INT |
| Power Requirements |
DC 12 V (10.8 V to 13.0 V DC) |
| Power Consumption |
max 26.4 W (at DC 12V ) |
| Operating Temperature |
32°F to 104°F
0°C to 40°C |
| Storage Temperature |
-4°F to +140°F
'-20°C to +60°C |
| Dimensions (W x H x D) *[1] |
9 7/8 x 6 x 5 3/8 inches
250 x152 x135 mm |
| Mass |
3 lb 5 oz
1.5kg |
| Body Color |
Dark gray |
| Wide Conversion Lens Attachable |
No |
| Mountable Angle |
±15° |
| Ceiling Mount |
No |
| Supplied Accessories |
Operating instruction (1)
IR remote commander unit (1)
AC power cable (1)
AC adaptor (1) |
