Detailed Product Description
| Image Sensor: |
1/4 Type EXview HAD CCD |
Minimum Illumination: |
1 Lx (F1.4) |
| Optical Zoom: |
18x |
Focusing System: |
Auto/Manual |
| Pan/Tilt Angle: |
Pan: ±170°, Tilt: + 90°/-30° |
Pan/Tilt Speed (Max.): |
Pan: 100°/sec, Tilt: 90°/sec |

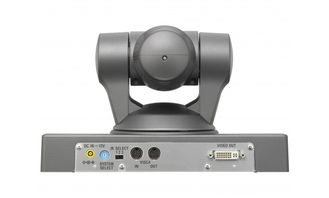

Remote Shooting PTZ Video Conference Camera Sony EVI-D70P 1/4type 18x
Description:
The EVI-D70P combine a high quality colour video camera with the flexibility of a remote pan/tilt/zoom operation, all in a compact easy-to-use package. Incorporating an 18x optical zoom lens, these cameras allow a user to zoom in on a small or distant object with exceptionnal clarity.
Compared to his predecessor, the EVI-D31, the EVI-D70P camera offer a wide pan/tilt range, and a faster pan/tilt mechanism.
Above all, these cameras are ceiling mountable - a first for the popular Sony EVI cameras.
Features:
* High resolution picture quality
The EVI-D70 achieves excellent picture quality of over 460 TV lines using a Sony 1/4-inch EXView HAD colour CCD.
* High speed, wide range PTZ
2. A high speed pan
* 18x Optical Zoom
A x18 optical zoom gives f=4.1 mm to 73.8 mm, and F1.4 to F3.0
* Ceiling/Desktop Mountable
The EVI-D70P is at the same time ceiling and desktop mountable. This capability is unique in the Pan Tilt Zoom market.
* Six position pre-set
Six pre-set positions can be programmed into the camera's memory.
* Auto Tracking
Users can pre-define subjects to be continually tracked. Pixels of similar colour and brightness can be detected by the EVI-D31 and the target extracted using the subject model, based upon light reflection and non-linear camera processing. Four modes for pre-defining a subject are available - pan
* RS-232C/RS-422 serial port
The RS-232C serial port allows the camera to be controlled from remote locations up to 15 meters, whereas the RS-422 (new!!!) allos the camera to be controlled from remote locations up to 1200 meters.
* Plug and Play product: Various applications
Simple installation and operation, together with remote access control over the Internet, gives users flexibility and creativity for many creative applications.
SPECIFICATIONS:
| Image Sensor |
1/4 type EXview HAD CCD |
| Image Sensor (Number of Effective Pixels) |
752 x 582 |
| Signal System |
PAL |
| Minimum Illumination (50IRE) |
1 lx (F1.4) |
| S/N Ratio |
More than 50 dB |
| Gain |
Auto/Manual (-3 to +28 dB, 2 dB steps) |
| Shutter Speed |
1 to 1/10,000 s |
| Exposure Control |
Auto, Manual, Priority AE, Exposure compensation, Back-light compensation |
| White Balance |
Auto/ATW/Indoor/Outdoor/One push/Manual |
| Optical Zoom |
18x |
| Digital Zoom |
12x |
| Focusing System |
Auto/Manual |
| Horizontal Viewing Angle |
48 degrees (wide) to 2.7 degrees (tele) |
| Focal Length |
F1.4 to F3.0
f=4.1 mm (wide) to 73.8 mm (tele) |
| Minimum Object Distance |
10 mm (wide end) to 800 mm (tele) |
| Pan/Tilt Angle |
Pan: ±170°, Tilt: + 90°/-30° |
| Pan/Tilt Speed (Max.) |
Pan: 100°/sec, Tilt: 90°/sec |
| Preset Position |
6 |
| Auto ICR |
Yes |
| Wide-D |
No |
| Image Stabilization |
No |
| Image Flip |
Yes |
| Auto Power Off |
Yes |
| Night Power Off |
Yes |
| Sd Video Output |
VBS, Y/C |
| Camera Control Interface |
RS-232C/RS-422
(VISCA) |
| Sync. System |
INT |
| Power Requirements |
DC 10.8 to 13.2 V |
| Power Consumption |
12 W |
| Operating Temperature |
32°F to 104°F
0°C to 40°C |
| Storage Temperature |
-4°F to +140°F
'-20°C to +60°C |
| Dimensions (W x H x D) *[1] |
5 1/4 x 5 3/4 x 5 3/4 inches
132 x 144 x 144 mm |
| Mass |
950 g
2 lb 2 oz |
| Body Color |
Black/White |
| Wide Conversion Lens Attachable |
Yes |
| Mountable Angle |
±15° |
| Ceiling Mount |
Yes |
| Supplied Accessories |
Operating instructions (1)
IR remote commander unit (1)
Ceiling bracket (1)
AC adaptor (1) |
Advantage:
The EVI-D70P is a Pan Zilt Zoom video camera for remote shooting and remote monitoring applications.
1. Ceiling/Desktop mountable:
The new EVI-D70P camera is at the same time ceiling mountable and desktop, what represent a unique feature in this Pan Tilt Zoom market. In addition, a complete ceiling kit is provided with the camera.
2. Superb picture quality with Exview HAD CCD:
The adoption of Sony Exview had CCD improves basic camera performance. For example, these cameras offer superb sensitivity of 1 lux (typical), and a low smear level and D-range.
3. Auto ICR (IR Cut Filer Removal) Function:
The Auto ICR function automatically switches the settings to attach or remove the IR Cut filter is automatically disabled (ICR ON), and tghed infrazred sensitivity is increased. With a set level of brightness, the filter is automatically engageds depending on the ambient light, allowing the cameras to be effective both in day and night environments.
4. RS-232C or RS-422 Serial control (VISCA Command):
All cameras settings and pan/tilt/zoom functiolns can be con btrolled remotely via a PC. With the RS-232C connection , maximum cable lengh can be extented to 15 meters, while the RS-422 connection extends this further to 1200 meters.
Application:
The EVI-D70P is equiped with a variety of convenient features such as auto ICR function, Alarm function and RS-232C/422 serial control , making them ideal for any remote shooting applications such as distance learning, indoor and outdoor security systems, courtrooms, event venues, concert halls, and more.
