Detailed Product Description
| Image Sensor: |
1/4 Type Super HAD CCD |
Minimum Illumination: |
3.5 Lux (F1.8) |
| Optical Zoom: |
10x |
Horizontal Resolution: |
460 TV Lines (Wide End) |
| Effective Pixels: |
768 (H) X 494 (V)(NTSC)/752 (H) X 582 (V)PAL |
Position Preset: |
6 Positions |

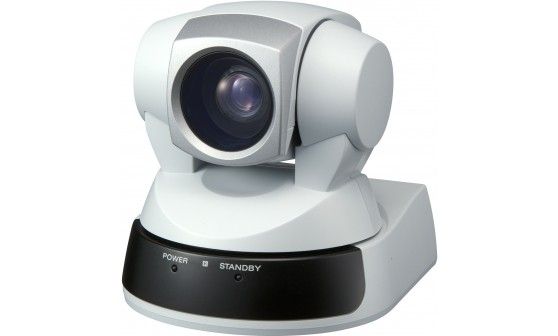

CCD SONY PTZ Video Conference Camera EVI-D100/P For Videoconferencing
Description:
The EVI-D100/P is a high quality CCD cameras that combine a high-speed, quiet pan/tilt with a wide angle view and 40x zoom (10x optical + 4x digital), all in a compact, easy-to-use package.
The EVI-D100/P camera boasts impressive and innovative features such as auto focus, auto white balance and automatic exposure control which provide fast and stable hands free operation when the camera changes pan/tilt positions.
The EVI-D100/100P cameras join the popular EVI-D30/D31 as Sony expands its pan/tilt camera line.
Features:
* High Speed, Wide Range Pan/Tilt Head
* Quiet Operation
* 40x Zoom Ratio (10x Optical + 4x Digital)
* Built-in Conversion Lens for Wide Angle View (65 degrees)
* Auto Sleep Function
* Various Picture Effects
* Six Position Presets with Battery Back-up
* Multi-function IR Remote Commander? unit
* Fully Controllable Remotely via RS-232C (VISCA)
SPECIFICATIONS:
| CCD Sensor |
1/4 type Super HAD CCD |
| Video Signal |
NTSC/PAL |
| Effective Pixels |
768 (H) x 494 (V) / 752 (H) x 582 (V) |
| Horizontal resolution |
470 TV lines (Wide end) |
| Lens |
10x Optical zoom, 40x with Digital Zoom,
f=3.1 mm (wide) to 31 mm (tele), F1.8 to F2.9 |
| Digital Zoom |
4x (40x with optical zoom) |
| Lens distortion |
Less than 5 % |
| Angle of View (H) |
6.6 degree (wide end) to 65 degree (tele end) |
| Min. Subject Distance |
100 mm (wide end), 600 mm (tele end) |
| Sync system |
Internal |
| Min. Illumination |
3.5 lux (F1.8) |
| S/N ratio |
More than 50 dB |
| Pan/Tilt |
Horizontal ± 100 degrees (Max speed 300 degrees/s),
Vertical ±25 degrees (Max speed 125 degrees/s)
(in 5/72 degrees increments) |
| Electronic shutter speed |
1/4 to 1/10,000 sec. |
| White balance |
Auto, ATW, One Push WB, Manual WB, 3200K, 5800K |
| Digital effects |
Pastel/Nega/Sepia/B&W/Solarize/Mosaic/Slim/Stretch/Still/Flash/Lumi/Trail |
| AE control |
Auto, Manual, Priority AE, Exposure compensation, Back Light compensation |
| Position preset |
6 positions |
| Serial control |
VISCA (RS-232C, 9600bps) |
| Video Output |
VBS, Y/C |
| Storage temperature |
-20 to 60°C; (-4 to 140°F) |
| Operating temperature |
0 to 40°C |
Power requirements /
Power consumption |
DC 12 V
Max. 13.2W (at 12 Vdc) |
| Dimensions |
113 (W) x 120 (H) x 132 (D) mm (4½ x 4¾ x 5¼ inches) |
| Mass |
860 g (1 lb 14 oz) |
| Packing |
Master Carton with 4 pieces |
Advantage:
EVI-D100 , Intelligent communication camera perfectly suited for applications that requires a high-quality color video camera with the flexibility of remote pan/tilt/zoom operations.
The EVI-D100P is a Pan Zilt Zoom video camera ideal for videoconferencing applications
