IEEE1394b Waterproof Industrial Camera Systems XCD-U100 , FireWire CCD Camera

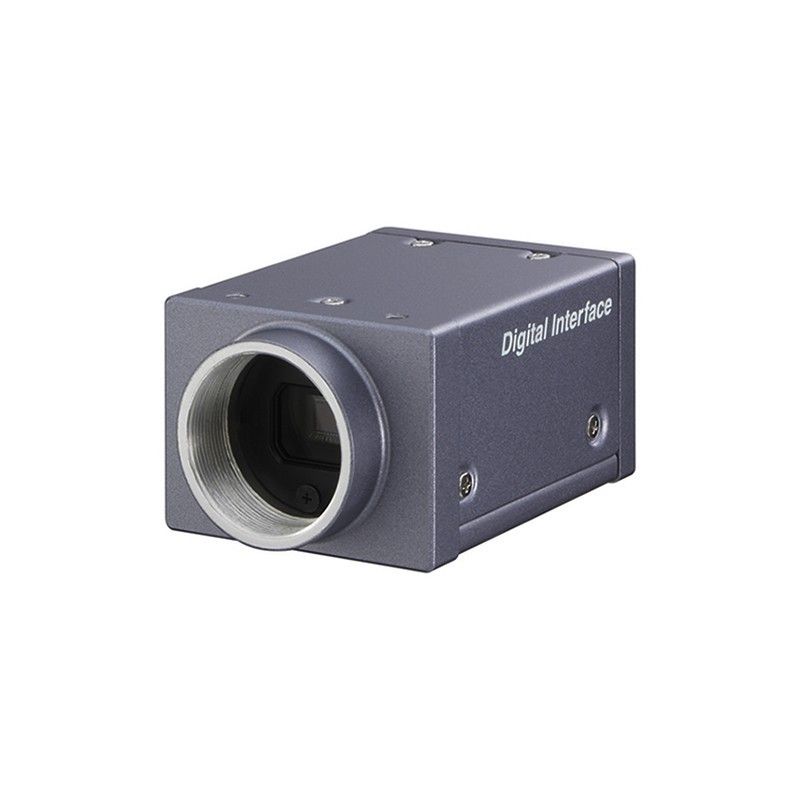

Large Image : IEEE1394b Waterproof Industrial Camera Systems XCD-U100 , FireWire CCD Camera

Product Details:

Place of Origin:	Japan
Brand Name:	Sony
Model Number:	XCD-U100

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	5days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Image Sensor:	1/1.8-type Progressive Scan IT CCD	Output Image Size (H X V):	1600 X1200 (UXGA)
Dimensions (W X H X D):	44 X 33 X 57.5 Mm	Lens Mount:	C Mount
Digital Interface:	IEEE 1394b-2002 X 2, Bilingual (screw Lock Possible)	Weight:	140G

IEEE1394b Waterproof Industrial Camera Systems XCD-U100 , FireWire CCD Camera

Sony's new line up of 1394.b cameras, with a number of resolutions and frame rates to choose from, has made selecting the right camera for machine vision applications easy. The new XCD-U100 incorporates a 1/3-type progressive Scan CCD and achieves up to 15 fps at UXGA Resolution. By utilizing the IEEE1394.b Interface that supports the IIDC protocol, users can transfer images to a host PC at speeds of up to 800 Mb/s. Moreover, because multiple cameras can be connected in a daisy-chain configuration, users can enjoy the benefits of simplified operation in a multi-camera system. The XCD-U100 is ideal for industrial machine-vision applications such as object recognition, inspection, measurement, alignment and more.

Highlights:

* IEEE 1394b Digital Interface
* Various Frame Rates for High Speed Capturing
* Ext. Dynamic Range
* Up to 15 fps at UXGA Resolution
* Multi-Connection Capability
* Supports IIDC Protocol
* Built-in Real-time 3x3 Image Pre-Processing Filter
* Compact and Lightweight
* High Shock and Vibration Resistance
* Multi-Trap Function
* Broadcast Delivery

Specification:

Camera
Image Sensor	1/1.8-type progressive scan IT CCD
Image Sensor (Number of Effective Pixels, H x V)	1,628 x 1,236
Cell Size (H x V)	4.4 μm x 4.4 μm
Output Pixels (H x V)	1,600 x 1,200
Frame Rate	15 fps
Minimum Illumination (50%)	2 lx (Iris: F1.4, Gain: +24 dB, Shutter: 1/15 s)
Sensitivity	F8 (400 lx, Gain: 0 dB)
S/N Ratio	1 step (Lens close, Gain: 0 dB, 8 bits)
Gain	Manual : 0 dB to +24 dB
Shutter Speed	16s to 1/100,000 s
Camera Features
Readout Modes	Normal, Binning (1 x 2, 2 x 2), Partial scan
Readout Features	Partial scanning, Binning, LUT, 3 x 3 filter
Synchronization	Hardware trigger, Software trigger
Trigger Modes	Edge detection, Pulse width detection, Bulk trigger, Sequential trigger
User Set/Memory Channel	15 channels
User Memory	256 bytes
Image Buffer	16 Mbytes
Other Features	Bayer pattern arrangement, Daisy chain, Broadcast command, IEEE 1394 Bus synchronization
Interface
Video Data Output	8, 10-bit, digital
Digital Interface	IEEE 1394b-2002 (800, 400, 200, 100 Mbps, x2), bilingual
Camera Specification	IIDC Version 1.31
Digital Input/Output	ISO IN (x2), ISO OUT (x2)
General
Lens Mount	C mount
Power Requirements	DC +8 V to +30 V
Power Consumption	3.0 W (typical)
Operating Temperature	-5°C to +45°C 23°F to 113°F
Performance Guarantee Temperature	32°F to 104°F 0°C to 40°C
Storage Temperature	-30°C to +60°C -22°F to +140°F
Operating Humidity	20% to 80% (no condensation)
Storage Humidity	20% to 95% (no condensation)
Vibration Resistance	10 G (20 Hz to 200 Hz)
Shock Resistance	70 G
Dimensions (W X H X D) *[1]	44 x 33 x 57.5 mm (excluding protrusions) 1 3/4 x 1 5/16 x 2 3/8 inches (excluding protrusions)
Mass	5 oz 140 g
Regulations	UL60950, FCC Class A, IC Class A, CE Class A, VCCI Class A
Supplied Accessories	Operating instructions (1) Lens mount cap (1)
