570 TV Line Industrial Analog Camera Systems Right Angle EIA 1/2-type interline CCD

570 TV Line Industrial Analog Camera Systems Right Angle EIA 1/2-type interline CCD

Application:

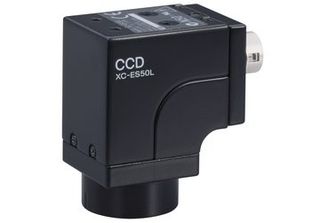

The XC-ES50L cameras is an L-shaped and small-sized lightweight monochrome camera module equipped with IR-cut filter designed to be fit into such as in limited space. With the mode switches on the rear panel, these cameras make it ideal for use in industrial equipment.

Description:

Adding to Sony's extensive line up of machine vision cameras, comes the new XC-ES50L -- a right angle version of the popular XC-ES50 camera. The new XC-ES50L camera incorporates a 1/2 type IT CCD providing 768(H) x 494(V) effective picture elements and feature a c-mount type lens mount. The unique L shape compact body makes the XC-ES50L easy to install in narrow spaces and can be built-in with a turn capability of approximately 180 degrees. The XC-ES50L camera is ideal for demanding machine vision and factory automation applications.

Features:

*  1/2-type interline CCD
*  Dimensions: 29 (W) × 42.5 (H) × 43.8 (D) mm,
*  Mass: Approx. 110 g
*  High S/N ratio: 60 dB
*  Electronic shutter : 1/100 sec to 1/10,000 sec
*  External trigger shutter : 1/4 sec to 1/10,000 sec
*  2:1 Interlaced/Non-Interlaced
*  Frame/Field accumulation
*  Restart/Reset
*  IR cut filter
*  Sync system: Internal/External (HD/VD)
*  High Shock and Vibration Resistance

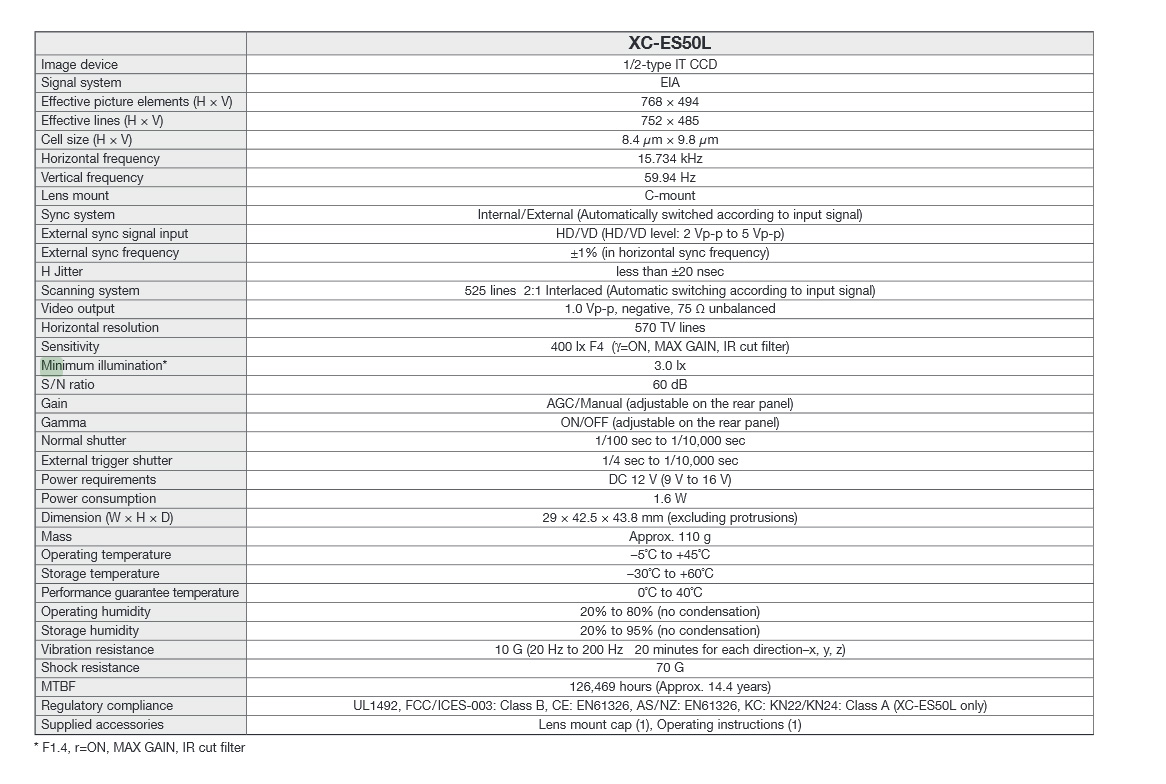

Specification:
