Detailed Product Description
| Image Device: |
2/3" Interline Transfer HAD CCD |
Effective Picture Elements: |
768 X 494 |
| Lens Mount: |
C Mount |
Minimum Illumination: |
0.3 Lx |
| Size: |
44 X 29 X 57.5 Mm |
Weight: |
105G |
| Horizontal Resolution: |
570 TV Line |
|
|

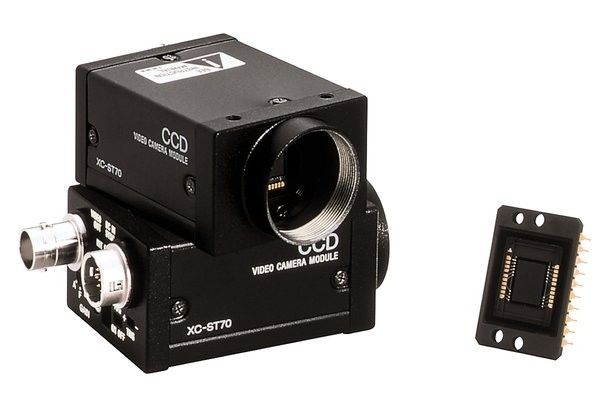

Monochrome Sony Industrial Camera Systems , SONY XC-ST70 Industrial Ip Cameras
Description:
An ideal 2/3-inch black and white video camera for image processing and machine vision applications, Sony's XC-ST70 incorporates the latest 2/3 type Interline Transfer (IT) CCD with HAD technology providing 768 (H) x 494 (V) effective picture elements. The camera also incorporates a C-Mount type lens mount. The Sony XC-ST70 is easy to use and its small size allows for flexible interface and works great in space-limited and remote head applications.
Sony XC-ST70 Highlights:
* 2/3" IT HAD CCD
* All controls outside the camera
* High Sensitivity: 0.3 lx (F1.4)
* High S/N ratio: 60 dB
* Simplified and more flexible trigger from previous models
* Small, light weight, one piece camera
* Excellent vibration and shock characteristics
* Small and light weight power adaptor
Sony XC-ST70 Features :
* All Controls Outside the Camera:
There is no need for the user to open the camera to modify the operating mode of the camera or to determine or confirm switches settings.
* Simplified and More Flexible Trigger:
The XC-ST70 has an improved trigger/shutter that significantly improves and simplifies the trigger operation from previous models.
* Compact and Lightweight Design:
Measurements are 29 x 44 mm (same as the XC-77/75/73); however, the length measures only 58 mm long, 46% shorter than the XC-77; the camera weighs only 105 grams, 45% lighter than the XC-77 at 190 grams.
* Excellent Vibration and Shock Characteristics:
Vibration resistance has been improved to 10G over a wider vibration frequency range (20 to 200 Hz).
* New Camera Adapter:
The DC-700/700CE is a camera adapter for all current DC-operated XC cameras; the DC700/700CE supplies 13V, 1.3A.
* Improved Sensitivity:
Uses the latest 2/3-inch Interline Transfer (IT) CCD with HAD technology which is more sensitive than the CCD used in the XC-77 camera family; these new CCDs have a microlens over each pixel to significantly improve the light collection efficiency.
* High S/N ratio: 60 dB.
* Small and lightweight power adapter.
Specification:
| Camera Specifications |
Detail: |
| Image Device |
2/3" Interline Transfer HAD CCD |
| Image Device Value |
Monochrome |
| Effective Pixels |
768 x 494 |
| Camera Interface |
Analog |
| Lens Mount |
C-mount |
| Horizontal Frequency |
15.734kHz±1% |
| Flange Back |
17.526 mm |
| Vertical Frequency |
59.94Hz |
| Resolution |
VGA |
| External Sync Frequency |
+/- 1% |
| Sync System |
Internal / External (auto) |
| External Sync Signal |
HD / VD (2 ~ 5 Vp-p)
VS |
| Jitter |
less than +/- 50 nsec |
| Scanning System |
525lines
60fields/s
2:1 Interlaced |
| Gain |
AGC (018dB)
Manual (018dB)
Fixed (0dB) Selectable |
| Gamma |
ON / OFF |
| External Trigger Shutter / Speed |
1/4 ~ 1/10000 s |
| Shutter Speed |
1/100 ~ 1/10000 s |
| Video Output Specifications |
Detail: |
| Horizontal Resolution |
570 TV lines |
| Minimum Illumination |
0.3lux (F1.4
AGC ON
without IR cut filter) |
| S/N Ratio |
60 dB |
| Sensitivity |
400lux
F8 (g compensation ON
0dB) |
| Signal System |
EIA standard |
| Video Output |
1.0 Vp-p
Negative
75 Ω
Unbalanced |
| General Specifications |
Detail: |
| Dimensions (W x H x D) |
44 x 29 x 57.5 mm |
| Weight |
105g |
| Power Requirements |
DC12V±10% |
| Power Consumption |
2.1 W |
| Operating Temperature |
-5 to 40°C (23 to 113 °F) |
| Storage Temperature |
-30 to 60 °C (-22 to 140 °F) |
| Operating Humidity |
20 to 80 % (no condensation) |
| Storage Humidity |
20 to 95 % (no condensation) |
| Vibration Resistance |
10 G (20 ~ 200 Hz) |
| Shock Resistance |
70 G |
| MTBF |
70600 hrs. |
| Regulatory Compliance |
UL1492
FCC Class A Digital Device
CE (EN50081-2 + EN50082-2)
AS4251.1 + AS4252.2 |
