Detailed Product Description
| Image Device: |
1/3" IT CCD |
Effective Picture Elements: |
752(H) X 582 (V) |
| Signal System: |
CCIR (standard) |
Minimum Illumination: |
0.3 Lx |
| Size: |
29 X 29 X 32 Mm |
Weight: |
70G |
| Horizontal Resolution: |
560 TV Line |
|
|

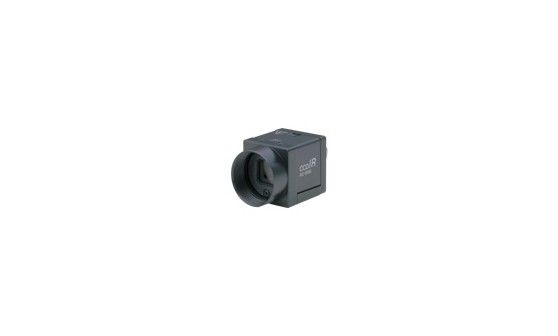

CCIR Mini Industrial Camera Systems SONY XC-ES30CE Monochrome Analog
SONY XC-ES30CE 1/3-Type B/W Analog Camera CCIR:
Ideal for image processing and machine vision applications, Sony's 50-gram XC-ES30CE is part of Sony's new standard of analog B/W video cameras. This camera features the same CCD technology and improved specifications that are incorporated in the XC-ST70/50/30 series (e.g., simplified and flexible trigger, excellent vibration and shock characteristics) but in an even smaller and lighter package. This camera incorporates the latest 1/3 type Interline Transfer (IT) CCD with HAD technology providing 752 (H) x 582 (V) effective picture elements and features a C-mount type lens mount.
Features:
* 1/3 type IT CCD
* Compact and light weight: 29 (W) x 29 (H) x 32 (D) mm, 50 g
* Minimum illumination at F1.4: 0.3 lx
* High S/N Ratio: 60 dB
* Electronic shutter function: 1/100 to 1/10,000 s: EIA, 1/120 to 1/10,000 s: CCIR
* Flexible trigger shutter function
* Scanning system: 2:1 interlaced
* Frame/field exposure
* Restart/reset function
* Synchronization: internal/external (HD/VD)
* High shock and vibration tolerance
Small Size. Big Performance.
Specificatoin:
| Signal System |
XC-ES30: EIA (standard)
XC-ES30CE: CCIR (standard) |
| Minimum Illumination |
0.3 lx * |
| Gain |
AGC/Manual selectable |
| S/N ratio |
60 dB |
| Power requirements |
DC 12 V (+9 to +16 V) |
| Operating temperature |
-5 to +45 °C (23 to 104 °F) |
| Storage temperature |
-30 to +60 °C (-22 to +140 °F) |
| Dimensions (W x H x D) |
29 x 29 x 32 mm (1 3/16 x 1 3/16 x 1 5/16 inches) |
| Mass |
50 g (2 oz) |
| Supplied accessories |
Lens mount cap (1), Operating instructions (1) |
| Effective picture elements |
XC-ES30: 768 (H) x 494 (V)
XC-ES30CE: 752 (H) x 582 (V) |
| Cell size |
XC-ES30: 6.35 x 7.4 μm
XC-ES30CE: 6.5 x 6.25 μm |
| Sensitivity |
400 lx F4 (Gamma ON, MIN GAIN, No IR cut filter) |
| External trigger shutter |
XC-ES30: 1/4 to 1/10,000 s
XC-ES30CE: 1/4 to 1/8,000 s ** |
| Operating humidity |
20 to 80 % |
| Storage humidity |
20 to 95 % |
| Vibration resistance |
10 G (20 to 200 Hz) |
| Shock resistance |
70 G |
| Image Device |
1/3 type IT CCD |
| Lens mount |
C mount |
| Footnote |
* (F1.4, AGC ON, without IR cut filter)
** Using Dip switch on the rear panel or Using trigger pulse width |
| Normal shutter speed |
XC-ES30: 1/100 to 1/10,000 s
XC-ES30CE: 1/120 to 1/10,000 s |
| MTBF |
126,000 hrs. |
| Regulatory compliance |
UL1492, FCC Class B Digital Device, CE (EN61326/97 + A1/98), AS4251.1 + AS4252.2 |
| Flange back |
17.526 mm |
| Sync system |
Internal/External (auto) |
| Video output mode |
1.0 Vp-p, negative, 75 Ω unbalanced |
| Horizontal frequency |
XC-ES30: 15.734 kHz
XC-ES30CE: 15.625 kHz |
| Horizontal resolution |
XC-ES30: 570 TV lines
XC-ES30CE: 560 TV lines |
| Gamma |
ON/OFF selectable |
| Scanning system |
2:1 Interlaced |
| Jitter |
less than ± 50 nsec |
| Vertical frequency |
XC-ES30: 59.94 Hz
XC-ES30CE: 50 Hz |
| External Sync system |
HD/VD (2 to 5 Vp-p) |
| External Sync frequency |
± 1 % |
