Detailed Product Description
| Image Sensor: |
1/4-type CCD |
Minimum Illumination: |
0.4 Lx (F1.4, 50 IRE) |
| Optical Zoom: |
18x |
Signal System: |
EVI-D80/EVI-D80P , NTSC/PAL |
| Color: |
Black Or White |
Weight: |
1,440 G (3 Lb 3 Oz) |

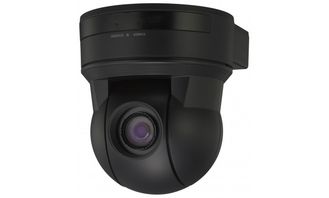

Wide Angle Wireless PTZ Video Conference Camera 550 TVL 12x Digital zoom
Description:
The EVI-D80P builds on the firm foundation of the popular EVI-D70P by increasing imaging quality, expanding zoom ratio and including ceiling-mount capabilities. It also increases horizontal resolution to a full 550 TV lines. The EVI-D80P inherits the EVI-D70P 18x optical zoom while improving the minimum illumination to an impressive 0.4 lx.
The Sony EVI-D80P shares features that are the hallmark of the EVI series combining sophisticated signal processing with extensive exposure control options to maximize image quality under even the most challenging conditions. Camera settings and pan/tilt/zoom functions can be performed remotely at high speed via the RS-232C interface (VISCA protocol). This new EVI camera shares the identical compact, easy-to-install design and is engineered for exceptional smooth and quiet operation.
Advantage & Application:
This smartly styled PTZ (pan/tilt/zoom) camera is ideal for a wide range of security, video conferencing, distance learning and remote monitoring applications.
The ¼-type CCD sensor ensures crisp Standard Definition picture quality, even in dim ambient lighting conditions.
The stepper motor enables smooth pan/tilt/zoom operation, while an 18x optical zoom range allows frame-filling close-ups.
Equally suitable for standard or ceiling mounting.
Features:
* 18x optical zoom lens
* 1/4-type CCD sensor
* Both standard mounting and ceiling mounting with E-flip function
* low minimum illumination: 0.4 lx (F1.4 50IRE)
* Horizontal resolution of 550TV line
* New design concept for fitting the customer environment
* Available in Black or White
* Crisp, clear SD images
* Fast PTZ operation
* Supplied IR remote
* Control remotely
* 6 presets
* Standard or ceiling mounting
SPECIFICATIONS:
| Image sensor |
1/4-type CCD |
| Signal system - SD |
NTSC/PAL |
| Lens - Focal length |
f=-4.1 mm (Wide) to 73.8 mm (Tele)
F1.4 to F3.0 |
| Lens - Optical zoom |
18x |
| Lens - Digital zoom |
12x |
| Min. object distance |
10 mm (wide) - 800 mm (tele)
*Default: 290 mm |
| Horizontal viewing angle |
48.0 degrees (wide) to 2.8 degrees (tele) |
| Focus systems |
Auto, One-push AF, Manual, Infinity |
| Min. illumination |
0.4 lx (F1.4, 50 IRE) |
| Shutter speed |
1 to 1/10,000 s |
| Gain |
Auto/Manual/Max. AE Gain Limit (-3 dB to +28 dB, 2 dB steps) |
| White balance |
Auto, Indoor, Outdoor, One-push, Manual |
| Wide-D |
No |
| Exposure control |
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE |
| Auto ICR |
No |
| S/N ratio |
More than 50 dB (3D Noise Reduction) |
| Pan/Tilt - Angle - Pan |
±170° |
| Pan/Tilt - Angle - Tilt |
+90°/-20° |
| Pan/Tilt - Max. speed - Pan |
100°/sec |
| Pan/Tilt - Max. speed - Tilt |
90°/sec |
| Preset positions |
6 |
| Video output - SD |
VBS, Y/C |
| Camera control - Interface |
RS-232C/RS-422 |
| Camera control - Protocol |
VISCA |
| Power requirements |
DC 12 V |
| Power consumption |
6 W |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Storage temperature |
-20°C to +60°C (-4°F to +140°F) |
| Mass |
1,440 g (3 lb 3 oz) |
| Dimensions (W x H x D) |
145 x 164 x 164 mm (5 3/4 x 6 1/2 x 6 1/2 inches) |
| Body colour |
Black, White |
| Supplied accessories |
AC adaptor
AC power cable
IR remote commander unit
Ceiling bracket
Operating instructions
RS-422 connector plug |
