Detailed Product Description
| Image Sensor: |
Approx. 1.02 Megapixels |
Optical Zoom: |
12x |
| SD Video Output: |
VBS, Y/C |
Dimensions (W X H X D): |
180 X 210.1 X 205 Mm |
| Mass: |
2.5 Kg |
|
|

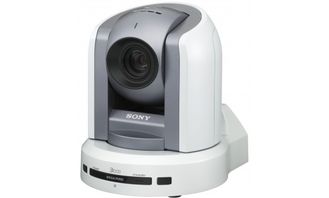

1.02 Megapixels SONY Color Video Camera 3 CCD Mega Pixel Broadband Remote
Advantage :
Superb Picture Quality with a Mega Pixels 3-CCD
The BRC-300/BRC-300P incorporates three 1/4.7-type Advanced HAD CCD sensors with a total of 1,070,000 pixels. This camera delivers outstanding picture quality with high resolution and accurate color reproduction.
Description:
Sony's BRC-300/BRC-300P is a revolutionary all-in-one compact robotic color video camera system, specially designed for remote video shooting applications. The BRC-300/BRC-300P incorporates three 1/4.7-type Advanced HAD™ CCDs, that provide high-quality and high-resolution images in both 4:3 and 16:9 modes.
With its high-accuracy and wide-range Pan/Tilt/Zoom capability, the BRC-300/BRC-300P precisely captures the right points of the viewable area surrounding the camera to meet your needs. You can also easily operate the camera with Sony's optional RM-BR300 Remote Control Unit, which is equipped with an ergonomic joystick, and feature-rich control panel. And when used with optional BRBK-303 Optical Multiplex Card and BRU-300 Optical Multiplex Unit, the BRC-300 is capable of being controlled from a long distance with a single fiber optic cable connection.
TheBRC-300/BRC-300P also comes equipped with a card slot that accepts optional interface cards, enabling the camera to be integrated into every kind of system from S-Video to RGB, SDI or even fiber. In addition, two remote control interfaces (VISCA™ protocol) are available to provide additional expandability and flexibility for your remote shooting applications.
Features:
* 16:9 Precision Technology and Wide Angle of View in 16:9 Mode
A sufficient amount of pixels are used to reproduce high resolution images in the 16:9 aspect ratio. The BRC-300's Mega Pixel CCD enables an even wider angle of view in the 16:9 mode.
* RS-232C or RS-422 Serial Control (VISCA? Command)
The BRC-300 camera settings and pan/tilt/zoom functions can be controlled remotely via a PC. With the RS-232C connection, maximum cable length can be extended to 15m (50 feet), while the RS-422 connection extends this further to 1200m (4000 feet).
* Multi-Interface Card Slot
The BRC-300 is equipped with a card slot that can accept optional interface cards. The BRC-300 can be integrated into every kind of system from S-Video to RGB, iLINK? DVCAM interface (optional card planned to be available soon), SDI or even fiber.
* Various Optional Equipment
Optical Multiplex Unit (BRU-300) - this unit converts non-compressed digital raw data from a camera (with the optical multiplex card) into any video output and has two interface card slots.
* Remote Control Unit (RM-BR300) - This stylish controller has a Sony ergonomic easy-to-use design and features a joystick. The control interfaces are RS-232C and RS-422 based on VISCA protocol.
* Optional Interface Cards - Analog RGB/Component Card (Model # BRBK-301); Optional SDI Card (Model #BRBK-302); and Optional Multiplex Card (Model # BRBK-303). An i.LINK DVCAM output card is planned to be available shortly.
* Optional Interface Cards - Analog RGB/Component Card (Model # BRBK-301); Optional SDI Card (Model #BRBK-302); and Optional Multiplex Card (Model # BRBK-303). An i.LINK DVCAM output card is planned to be available shortly.
Specifications:
| Image Sensor |
1/4.7-type IT Advanced HAD CCD x3 |
| Image Sensor (Number of Effective Pixels) |
Approx. 1.02 Megapixels |
| Image Sensor (Total Number of Pixels) |
1.07 Megapixels |
| Signal System |
BRC-300: NTSC
BRC-300P: PAL |
| Sensitivity |
NA |
| Minimum Illumination (25IRE) |
7 lx (25IRE, F1.6, +18dB) |
| Horizontal Resolution |
NA |
| S/N Ratio |
50 dB |
| Gain |
Auto/Manual (-3 dB to +18 dB, 3 dB steps) switchable |
| Shutter Speed |
BRC-300: 1/10,000 s to 1/4 s
BRC-300P: 1/10,000 s to 1/3 s |
| Exposure Control |
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, spot AE |
| Color AE Function |
No |
| White Balance |
Auto/Indoor/Outdoor/One-push/Manual |
| Optical Zoom |
12x |
| Digital Zoom |
4x |
| Focusing System |
Auto/Manual |
| Horizontal Viewing Angle |
4:3 mode: 37.8°, 16:9 mode: 45.4°(Wide end) |
| Focal Length |
f = 3.6 mm to 43.2 mm
F1.6 (Wide), F2.8 (Tele) |
| Minimum Object Distance |
300 mm (Wide)
800 mm (Tele) |
| Pan/Tilt Angle |
Pan: ±170°
Tilt: +90°/-30° |
| Pan/Tilt Speed |
Pan: 0.25° to 60°/s
Tilt: 0.25° to 60°/s |
| Preset Position |
6 |
| Auto ICR |
No |
| Wide-D |
No |
| Image Stabilization |
No |
| Image Flip |
On/Off |
| ND Filter |
No |
| Color Gain |
No |
| Color Hue |
No |
| Color Matrix |
No |
| Color Detail |
No |
| Skintone Detail |
No |
| Gamma |
No |
| Gamma Level |
NA |
| Black |
NA |
| Black Gamma |
NA |
| Knee Point |
No |
| Knee Slope |
NA |
| Knee Sat Level |
NA |
| Auto Focus Assist Function |
No |
| Flicker Cancel |
No |
| B&W |
No |
| Color Bar |
No |
| SD Video Output |
VBS, Y/C |
| Camera Control Interface |
RS-232C/RS-422
(VISCA) |
| External Sync. Input |
Yes |
| Power Requirements |
DC 12 V |
| Power Consumption |
21.6 W (without optional cards) |
| Operating Temperature |
0 °C to 40 °C
32 °F to 104 °F |
| Storage Temperature |
-20 °C to +60 °C
-4 °F to +140 °F |
| Dimensions (W x H x D) *1 |
180 x 210.1 x 205 mm
7 1/8 x 8 3/8 x 8 1/8 inches |
| Mass |
2.5 kg
5 lb 8 oz |
| Optional Card Slots |
Yes |
| Body Color |
White |
| Size of Screw Hole for Tripod |
1/4-20UNC, depth 6.5 |
| Mountable Angle |
±15° |
| Ceiling Mount |
Yes |
| Supplied Accessories |
IR Remote Commander Unit (1)
AC power adaptor (1)
AC power cord (1)
RS-422 connector plug (1)
Ceiling bracket (2)
Wire rope (1)
Screws (7)
Operating instructions (1) |
