Detailed Product Description

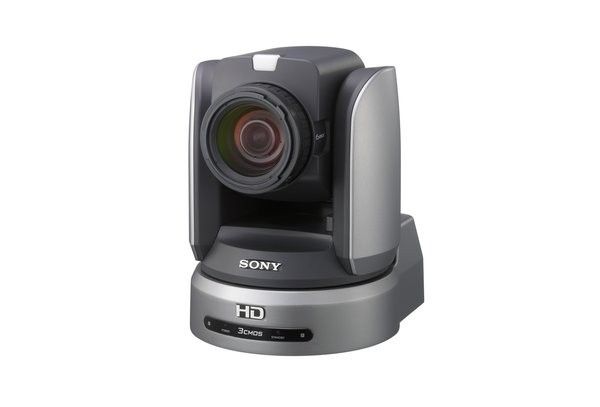

2M Pixels HD Zoom Video Conferencing SONY BRC-H900 3 CMOS image sensor
Features:
* 1/2 inch Exmor 1920x1080 3CMOS P/T/Z Camera
* Superb Picture Quality
* Flexible Installation
* Advanced Color Adjustment
* 14x Optical Zoom
* 1080i, 720p, and SD Output
Advantage Description:
The flagship BRC-H900 Pan/Tilt/Zoom color video camera incorporates a 1/2-type Exmor 3 CMOS sensor that delivers exceptionally high picture quality to meet demanding live production requirements. The BRC-H900 was designed with flexibility in mind. Control Options: VISCA RS-232C/RS-422 or IP control (10Base-T/100Base-TX /Auto). With the use of Sony's new RM-IP10 IP Remote Controller, the BRC-H900 can be controlled through an IP network for flexible configuration and can accomodate installations of up to 112 BRC cameras and up to five RM-IP10 controllers. (BRBK-IP10 board also required.) Mounting and Installation: In addition to standard desktop installation, the BRC-H900 can be ceiling mounted and used with a tripod for mobile, live events. Its renowned silent and smooth pan/tilt/zoom mechanism enables use in noise-conscious environments. Advanced Color Adjustment: With a variety of picture adjustment features including color, gamma, black and knee settings, the BRC-H900 camera allows for fine tuning to meet professional demands. With a minimum illumination of 4lx, the BRC-H900 also achieves outstanding performance in difficult lighting environments. Tally Lamp: Not one but two tally lamps are featured on the BRC-H900 - one on the front and one on the rear - offering wider visibility.
Highlights:
* 1/2-type Exmor Full HD 3CMOS Image Sensor
* Approximately 2 Megapixels of Effective Picture Elements
* 1080/59.58i, 720/59.98p, NTSC
* 1080/50i, 720/50p, PAL
* 4 lx (F1.9 +24dB) Minimum illumination
* 50dB Video S/N Ratio
* 14x Optical Zoom
* HD Video Output: Analog RGB/Component, SDI (HD/SD switchable)
* SD Video Output: Composite, Y/C
* External sync input
* 16 position presets
* RS-232C/RS-422 serial control (VISCA protocol)
* Daisy chain capability (up to 7 units)
* Image stabilization function that reduce vibration
* Multi-function IR Remote Commander® unit
* OSD (On-Screen Display)
Application:
Bank, hospital, security, meeting rooms, remote teaching .
Specification:
| Camera Performance Specifications |
Detail: |
| Tilt Angle |
-30 to +90 degrees |
| Tilt Speed |
0.22 to 60 degrees/sec |
| General Specifications |
Detail: |
| Analog Output |
RGB / Y/Pb/P(D-sub 15-pin), Y/C, Composite |
| Angle of View (H) |
59.6 degrees (Wide End) |
| Backlight Compensation |
On/Off |
| Built-In Video Output |
SDI (HD/SD Selectable)
D-sub 15 pin: HD video out
Y/Pb/Pr or RGB, HD, VD or SYNC
Y/C
Composite |
| CCD Effective Pixels |
Approx. 2.07 mega pixels (CMOS) |
| Camera Control Interface |
Mini DIN 8 pin: RS-232C (VISCA In/Out), Connector plug 9 pin: RS-422 (VISCA In/Out) |
| Dimensions (W x H x D) |
198 x 260 x 238 mm (7 7/8 x 10 1/4 x 9 3/8 inches) |
| Effective Pixels |
Approx. 2 Megapixels |
| Focal Length |
f=5.8 to 81.2 mm (F1.9 to F2.8) |
| Focus System |
Auto/Manual |
| Gain |
Auto/Manual (-3 to 24 dB) |
| Horizontal Resolution |
1000 TV lines |
| Image Device |
1/2-type Exmor 3CMOS image sensor |
| Image Flip |
On/Off |
| Minimum Illumination |
4 lx (50 IRE, F1.9, +24 dB) |
| Minimum Object Distance |
300 mm (Wide), 800 mm (Tele) |
| ND Filter |
N/A |
| Operating Temperature |
32 to 104 ˚F (0 to 40 ˚C) |
| Optical Image Stabilizer |
On / Off |
| Pan Angle |
-170 to + 170 degrees |
| Pan/Tilt Angle |
-170 to +170 degrees (Pan), -30 to +90 degrees (Tilt) |
| Pan/Tilt Speed |
0.22 to 60 degrees (Pan/Tilt) |
| Panel Display Resolution |
14x Optical Zoom |
| Power Consumption |
Max 28.8W (without optional cord)
Max 34.2W (with optional cord) |
| Power Requirements |
DC: 10.8V to 13.2V |
| Preset Positions |
16 Positions |
| S/N Ratio |
50 dB |
| Shutter Speed |
1/8000 to 1/60 s or 1/8000 to 1/50 s |
| Signal System |
1080/59.94i, 720/59.94p, NTSC
1080/50i, 720/50p, PAL |
| Storage Temperature |
-20 degrees to 60°C (-4°F to 104°F) |
| Synchronization |
Internal/External |
| Video Output |
HD: SDI (HD/SD Switchable) + D-Sub 15 pin: Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
SD: Composite, Y/C |
| Weight |
5.0 kg (11 lb 0.37 oz.) |
| White Balance |
Auto/Indoor/Outdoor/One-push/Manual |
