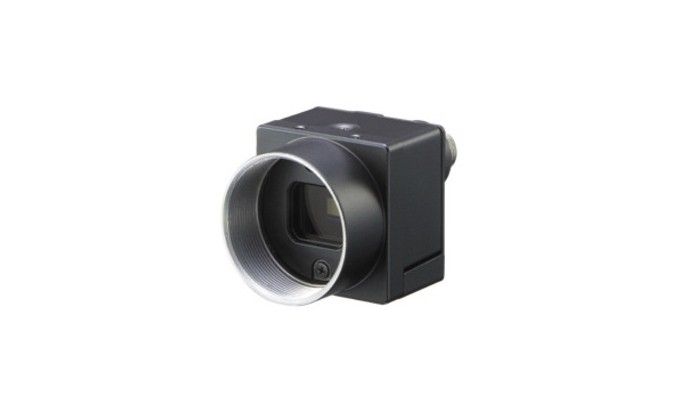

500 TVL SONY XCD-MV6 Industrial Camera Systems 1/3 type Progressive Scan CMOS

Large Image : 500 TVL SONY XCD-MV6 Industrial Camera Systems 1/3 type Progressive Scan CMOS

Product Details:

Place of Origin:	Japan
Brand Name:	Sony
Model Number:	XCD-MV6

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	5days
Payment Terms:	T/T,PAYPAL
Supply Ability:	100pcs/month

Detailed Product Description

Image Sensor:	1/3-type Progressive Scan CMOS	Cell Size (H X V):	6.0 μm X 6.0 μm
Minimum Illumination (50%):	0.5 Lx (Iris: F1.4, Gain: +18 DB, Shutter: 1/60s)	Lens Mount:	C Mount
Dimensions (W X H X D):	29 X 29 X 19 Mm	Weight:	37G

500 TVL SONY XCD-MV6 Miniature Industrial Camera Systems 1/3 type Progressive Scan CMOS

Feature:

*    1/3 type CMOS Sensor
*    WVGA Resolution at 60 fps
*    752 x 480 pixels
*    500 TV Lines
*    Binning and Partial Scan Functions
*    IIDC Ver. 1.32 Compliant and IEEE-1394.b S1600 Compliant
*    Ultra-Compact and Lightweight Body - 29 x 29 x 19mm/37g
*    Various Image Correction Functions: Defect Pixel Coorection, Fixed Pattern Noise Correction and Shading Correction
*    Variety of Trigger Modes - H/W and S/W Trigger, Edge/Width, Overlap, Trigger/Strobe Delay, Polarity
*    IEEE-1394.b Digital Interface
*    High Data Transfer Rate (up to 1600 Mbps)
*    Broadcast Delivery Function - Enables sending of commands when used in multiple camera suystem

Description:

Sony continues to expand its popular CXD IEEE 1394b series with the introduction of its ultra-compact and lightweight monochrome camera - the XCDMV6. This new progressive scan camera incorporates a 1/3-type wide VGA global shutter CMOS sensor and is one of the smallest IEEE 1394b cameras available on the market. The XCD-MV6 measures just 19 mm (3/4 inch) in depth and weighs only 37 grams. Combining high-quality images with a miniaturized body, the XCD-MV6 is ideally suited for space-restricted machine vision and robotic applications.

Specification:

Camera
Image Sensor	1/3-type progressive scan CMOS
Image Sensor (Number of Effective Pixels, H x V)	752 x 480
Cell Size (H x V)	6.0 μm x 6.0 μm
Output Pixels (H x V)	640 x 480
Output Pixels (H x V, Full Resolution)	752 x 480
Frame Rate	60 fps
Minimum Illumination (50%)	0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/60s)
Sensitivity	F5.6 (400 lx, Gain: 0 dB)
S/N Ratio	1 step (Lens close, Gain: 0 dB, 8 bits)
Gain	Manual : 0 dB to +18 dB
Shutter Speed	1s to 1/50,000 s
Camera Features
Readout Modes	Normal, Pseudo-binning (1 x 2), Partial scan
Readout Features	Defect pixel correction, FPN correction, Shading correction, Gamma (variable), eFlip (H/V)
Synchronization	Hardware trigger, Software trigger
Trigger Modes	Edge detection, Pulse width detection
User Set/Memory Channel	16 channels
User Memory	256 bytes
Image Buffer	100 frames
Other Features	Broadcast command, IEEE 1394 Bus synchronization
Interface
Video Data Output	8, 10-bit, digital
Digital Interface	IEEE 1394b-2002 (1600, 800 Mbps), beta
Camera Specification	IIDC Version 1.32
Digital Input/Output	TTL IN (x2), TTL OUT (x2)
General
Lens Mount	C mount
Power Requirements	DC +8 V to +30 V
Power Consumption	2.2 W (typical)
Operating Temperature	-5°C to +45°C 23°F to 113°F
Performance Guarantee Temperature	32°F to 104°F 0°C to 40°C
Storage Temperature	-30°C to +60°C -22°F to +140°F
Operating Humidity	20% to 80% (no condensation)
Storage Humidity	20% to 95% (no condensation)
Vibration Resistance	10 G (20 Hz to 200 Hz)
Shock Resistance	70 G
Dimensions (W X H X D) *[1]	29 x 29 x 19 mm (not including protrusions) 1 3/16 x 1 3/16 x 3/4 inches (excluding protrusions)
Mass	37 g 1.3 oz
Regulations	UL60950-1 + CSA C22.2 No.60950.1, FCC/ICES-003: Class A, CE: EN61326, AS/NZ: EN55022, VCCI Class A
Supplied Accessories	Operating instructions (1) Lens mount cap (1)
