Detailed Product Description
| Image Sensor: |
1/2" Interline Transfer CCD |
Signal System: |
CCIR Standard |
| Horizontal Resolution: |
570TVL |
Lens Mount: |
C Mount |
| Dimensions (W X H X D): |
29 X 29 X 32 Mm |
Weight: |
50 G |

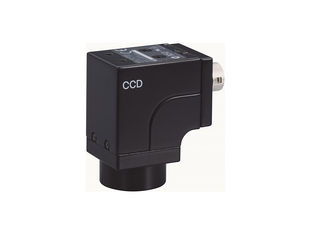

1/2 Type Aanlog Camera Systems SONY XC-ES51CE , Exterior Security Camera Systems
Description:
The new XC-ES51CE camera incorporates Sony's NEW high sensitivity 1/2 type IT CCD. With its high sensitivity of 0.2 lux @F1.4, the XC-ES51CE camera is ideal for demanding machine vision applications. The XC-ES51CE camera features the same compact and lightweight design as the XC-ES camera series, making them easy to interchange. The XC-ES51CE cameras measure 29(W) x 29(H) x 32(D) mm and weigh only 50g.
Feature:
* New 1/2 type IT CCD
* High Sensitivity - 0.2 lux @F1.4
* Small and lightweight
* C-Mount
* Electronic shutter function - 1/120 to 1/10,000 s
* All controls outside the camera
* Flexible trigger shutter functions
* Frame/Field exposure
* High vibration and shock characteristics (10G / 70G)
* Synchronization: internal/external (HD/VD, VS)
* Small and light weight power adaptor (DC-700CE)
Specification:
| Image device |
1/2" Interline Transfer CCD |
| Effective picture elements |
768(H) x 494 (V) |
| Signal system |
EIA (standard) |
| Horizontal frequency |
15.734 kHz
|
| Vertical frequency |
59.94 Hz |
| Cell Size |
8.4 x 9.8 µm |
| Lens mount |
C mount |
| Flange back |
17.526 mm |
| Sync system |
Internal / External (auto) |
| External sync system |
HD / VD (2 to 5 Vp-p), VS
|
| External sync frequency |
+/- 1% |
| Jitter |
Less than +/- 50 nsec |
| Scanning system |
2:1 Interlaced |
| Video output |
1.0 Vp-p, negative, 75 unbalanced |
| Horizontal resolution |
570 TV lines |
| Sensitivity |
400 lx F5.6 |
| Minimum illumination |
0.2 lx |
| S/N ratio |
60 dB |
| Gain |
AGC (0-18 dB) / Manual (0-18 dB) Selectable |
| Gamma |
ON / OFF |
| Normal shutter |
1/100 to 1/10,000 s |
| External trigger shutter |
1/4 to 1/10,000 s |
| Power requirements |
DC12 V (+9 to 16 V) |
| Power consumption |
1.6 W |
| Dimensions |
29 (W) x 29 (H) x 32 (D) mm
(1 3/16 x 1 3/16 x 1 5/16 inches) |
| Mass |
50 g (2 oz) |
| Operation temp./mois. |
-10 to +50°C
(14 to +122°F) / 20 to 80% |
| Storage temp./mois. |
-20 to +60°C
(-4 to +140°F) / 20 to 95% |
| Vibration |
10 G (20 to 200 Hz) |
| Shock resistance |
70 G |
| Regulatory compliance |
UL 1492, FCC Class B Digital Device (EN61326/97 +A1/98), AS4251.1 + AS4252.2 |
